Product Details

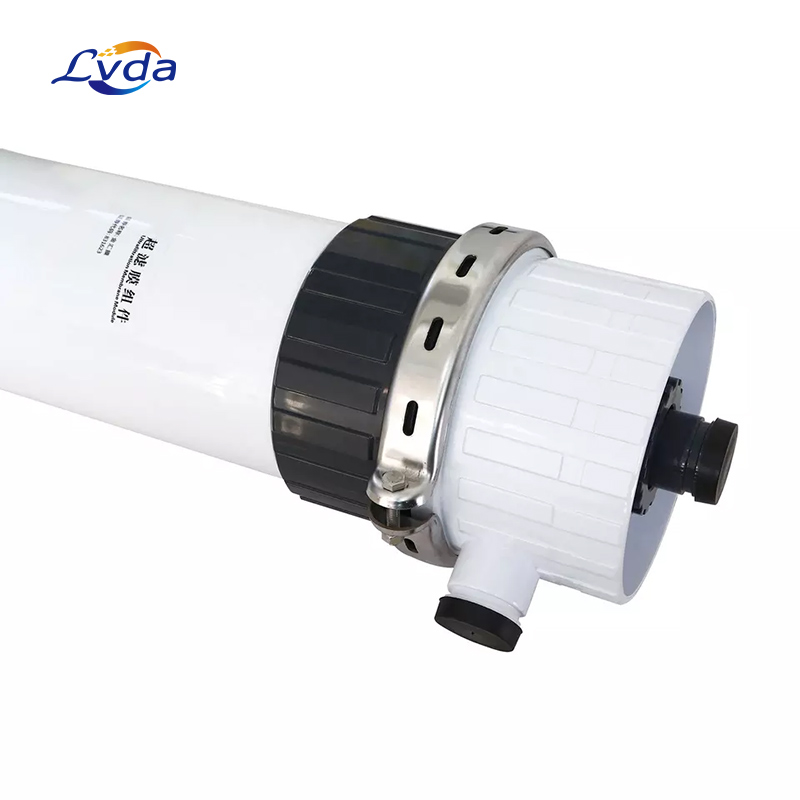

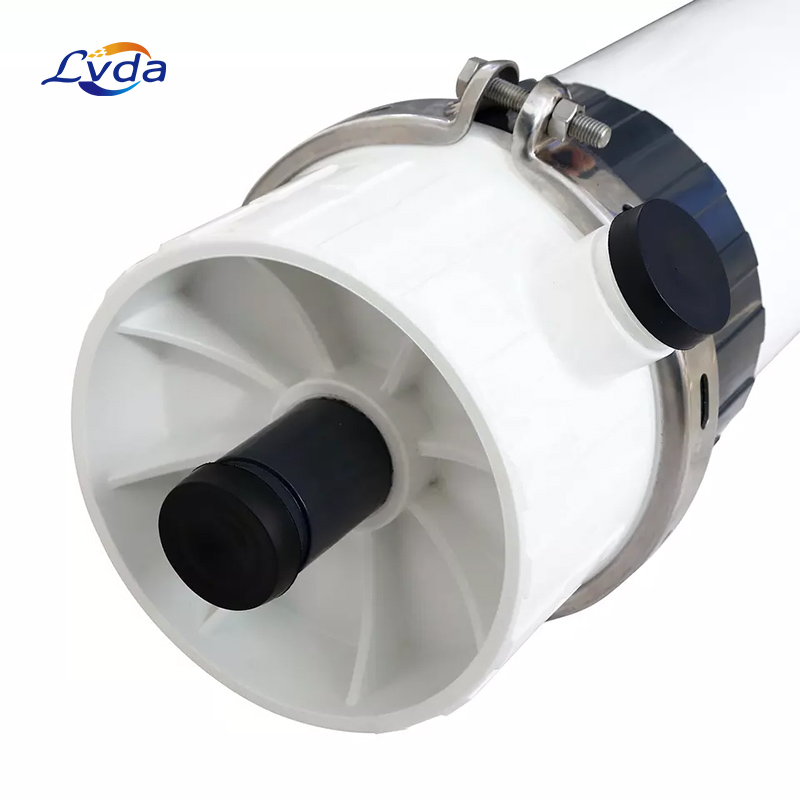

UF DOW's model SFP filter is a UF outside-in membrane technology, the membrane tubes are made of PVDF material. The Hollow filber feature allows for clean filtration, reduced chemical consumption, and high product flow rates.
DOW's UF series SFP membranes are specialized models for industrial water treatment, especially water reuse.

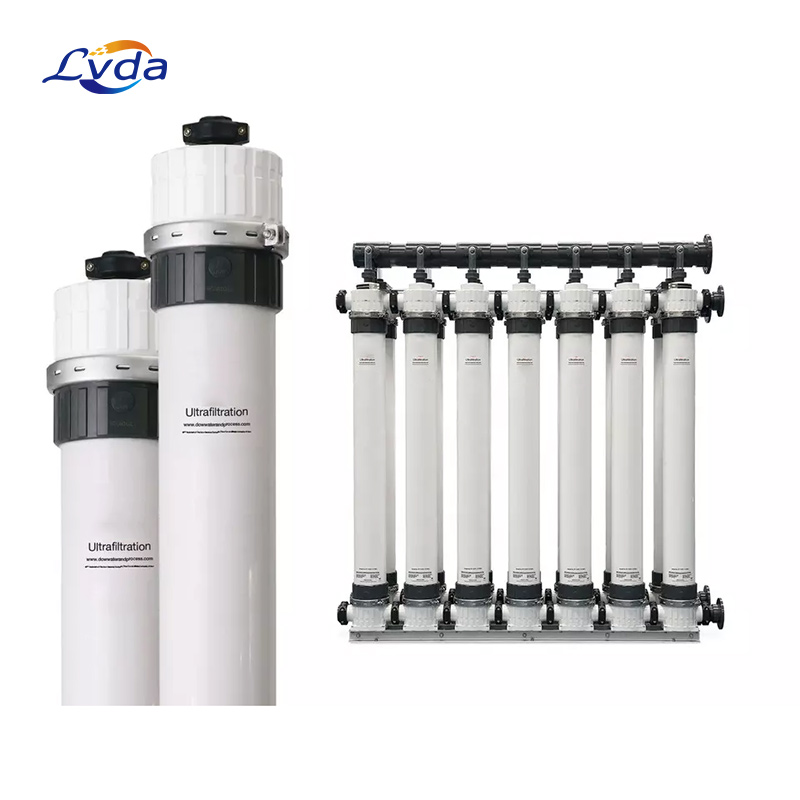

The DOW UF SFP-2660XP, UF SFP-2860XP, SFP-2880XP membrane series is an upgrade over previous models with a 35% increase in product flow throughput. This is a line of UF DOW membranes suitable for large capacity wastewater reuse systems.
DOW IntegraFlux™ Ultrafiltration (UF) membrane with XP fiber filter PVDF membrane material not only gives high flow rate but also consumes less energy and chemicals.
Ultrafiltration (UF) is a separation principle for screening, with pressure as the driving force to realize mechanical separation membrane separation process, namely under certain pressure, when the mixed solution of large molecules or a small molecule solute through the membrane surface, solvent (e.g., inorganic salt) and small molecule solutes through the membrane, and the solute molecules due to mechanical filtration membrane as concentrate intercept, So as to achieve the purpose of purification, separation and concentration.
PVDF hollow fiber ultrafiltration membrane has the advantages of strong oxidation resistance, pollution resistance and good leaning performance. It is widely used in various sewage treatment industry.
Product features
1.High ability to remove colloids, particles, bacteria, and viruses
2.Protects rear devices as effectively as RO
3.Extremely high flux rate and long lasting
4.Less chemical consumption
5.UF membrane under the chemical in the cleaning process
6.Applicable for high COD input wastewater
7.Low volume of backwash and CIP wastewater.
8.Low energy consumption due to low inlet water pressure only.
Product parameters
Model | Size | Membrane Area | Module Volume | Weight-EMPTY | Weight-Water FILLED |
m 2 | liters | kg | kg |
SFP-2860XP | 8” × 60” | 51 | 35 | 48 | 83 |
SFP-2880XP | 8” × 80” | 77 | 39 | sixty one | 100 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Material: | plastic bags, PVDF |
Weight: | 50kg |
Size: | 225*2360mm |
Productivity: | 7500L/Hour |
Weight (KG): | 50 kg |
Shape: | tubular |
Outline design: | 225*2360 mm |
Available membrane area: | 77 M2 |
Link calibre: | 50 |
Design Flux: | 4.5-9 m3 |
Operation Pressure: | < 0.3Mpa |
Applicable temperature: | 5-40 ℃ |
PH Range: | 2-10 |
Molecular Weight Cut Off: | 100 000 Dalton |
Material | Property | OD | ID | Pore Size | MWCO |
PES / PS | hydrophilic | 1.4mm | 0.7mm | 0.01~0.04µm | 67,000 dalton |
PAN | hydrophilic | 2.3mm | 1.4mm | 0.02~0.1µm | 80,000 -100,000dalton |
PVDF | hydrophilic | 1.4mm | 0.7mm | 0.05~0.1µm | 100,000-150,000 dalton |
PTEF | hydrophobic | 1.6-3.2mm | 0.8-2.1mm | 0.8-2.2um | ~~~ |
Spec. | Outer Size (mm) | Distance from Side to Center(mm) | Materials | Design Flux (m³, 0.1MPa/25℃) | Run Mode | Link Calibre |
UFcOB90 | 90*1100 | 910 | PVDF | 0.5-3.2 | Outside-In | 32 |
UFcOA160 | 160*1330 | 990 | 0.8-1.4 | 32/40 |
UFcOB200 | 200*1410 | 1000 | 1.0-1.8 | 50 |
UFcOA225 | 225*1730/1760 | 1600/1630 | 2.5-4.0 | 50 |
UFcOA250 | 250*1715/1813 | 1600/1705 | 2.6-4.8 | 50 |
UFcOA2860 | 225*1860 | 1630 | 2.5-4.0 | 50 |
UFcOA2880 | 225*2360 | 2130 | 3.5-6.0 | 50 |
Product application
1.Hotels,
2.Garment Shops,
3.Building Material Shops,
4.Manufacturing Plant,
5.Machinery Repair Shops,
6.Food & Beverage Factory,
7.Farms,
8.Restaurant,
9.Home Use,
10.Retail,
11.Food Shop,
12.Printing Shops,
13.Construction works ,
14.Energy & Mining,
15.Food & Beverage Shops,
16.Advertising Company
17.Industrial wastewater treatment
18.RO màng membrane protection pretreatment
19.Used in water reuse systems
