Product Details

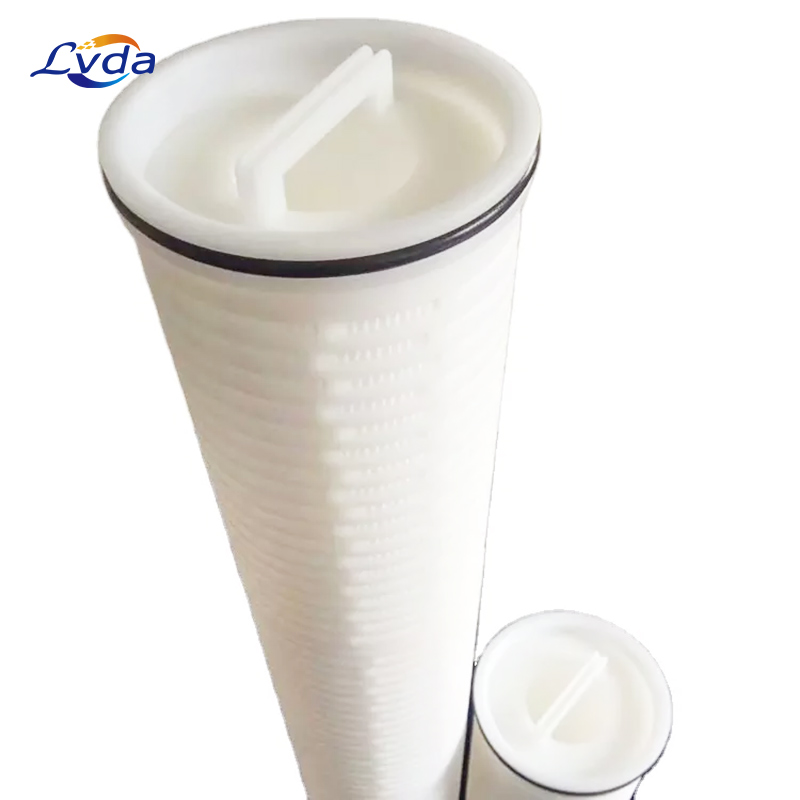

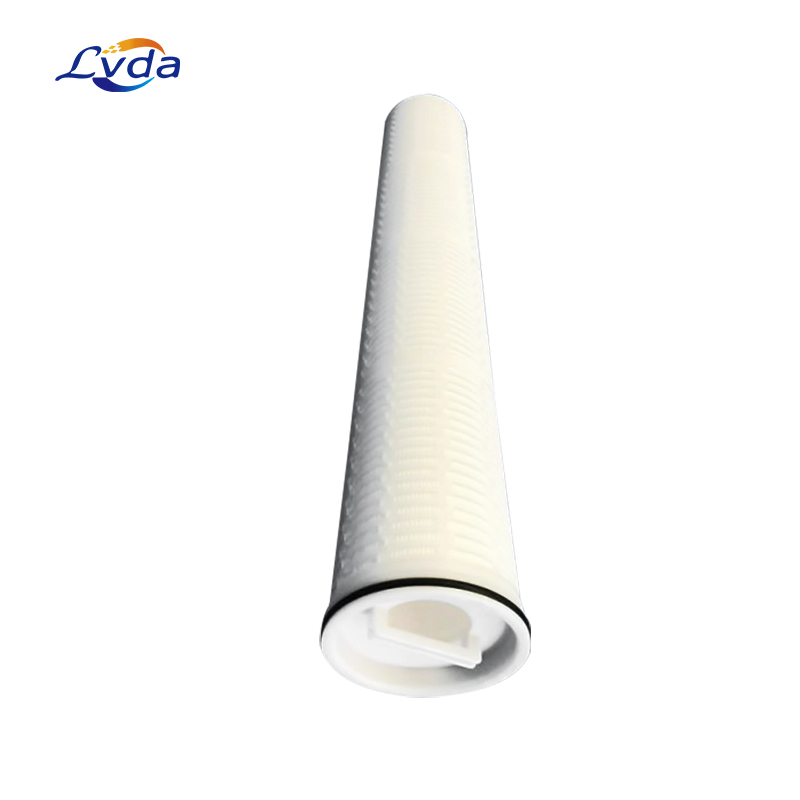

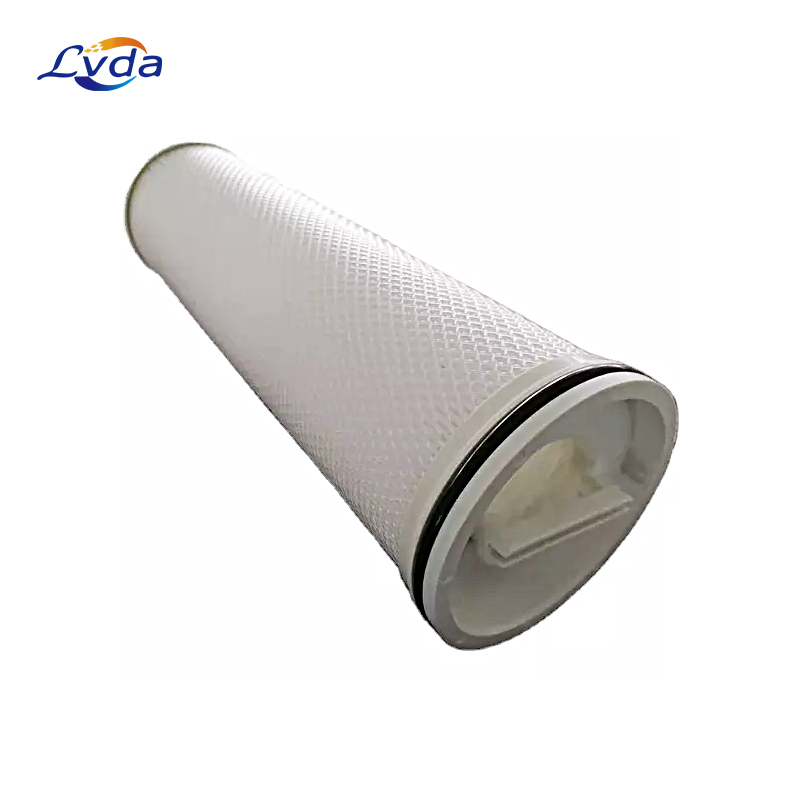

The Ultipleat High Flow filter is a large-diameter, coreless, single open-ended, pleated cartridge with an inside-to outside flow pattern.
The filter's unique crescent-shaped pleat geometry, combined with its large 6-inch (152.4 mm) diameter and proprietary range of available Pall filter media, allows you to use significantly fewer filters and smaller housings for high flow-rate applications.
Product features
1.Absolute micron retention ratings from 0.45 to 100 microns
2.Ergonomically designed handle.
3.High surface area, high flow rates with low pressure drops
4.Various configuration in lengths and adaptors
5.Reduce capital expenditure by fewer cartridges and housings used.
6.Reduce operational expenditure by reduced cartridge change-out frequency, downtime, product waste, labour and disposal costs with longer service life.
7.Ideal choice for a wide variety of process applications.
8.Highly durable polypropylene construction, broad chemical compatibility, suitable for rigorous process conditions.
9.Faster, easier filter change-out.
10.Direct and economical filter element replacement.
Product parameters
Part Number | Removal Rating4 (μm) | Nominal Length4 | O-ring Material4 | Out Dia. |
(in / mm) | (mm) |
HFU620UY045J | 4.5 | 20 / 508 | Ethylene Propylene | 152 |
M AT E R I A L S O F C O N S T R U C T I O N |
FILTER MEDIUM TYPE | FILTER MEDIUM | SUPPORT / DRAINAGE
MATERIALS | END CAPS | WRAP
MATERIALS |
HDC II Medium | High Area
Polypropylene Structure | Polypropylene | Glass Filled
Polypropylene | Polypropylene &
Polyolefin Hotmelt |
Profile Medium in Ultipleat Format | Pleated Polypropylene
Depth Structure | Polypropylene | Glass Filled
Polypropylene | Polypropylene |
Ultipor GF Medium | Resin Bonded Glass
Fiber / Polyester Support | Polyester / Nylon | Glass Filled
Acetal | Polyester &
Polyamide Hotmelt |
Ultipleat CAS Medium | Pleated Polypropylene /
Polyether Sulfone
Membrane | Polypropylene | Glass Filled
Polypropylene | Polypropylene |
O P E R AT I N G C O N D I T I O N S |
| POLYPROPYLENE MEDIUM /
CAS COMPOSITE MEDIUM | GLASS FIBER MEDIUM |
Maximum Differential Pressure
(normal inside to outside flow) | 50 psid at 180°F
3.4 bar at 82°C | 50 psid at 250°F
3.4 bar at 121°C |
Product application
1．Food & Beverage
2．Process water
3．Cooling water for power generation
4．Seawater RO pre-filtration
5．Pulp & paper and textiles
6．Petrochemical and chemicals
7．Industrial condensate water
8．Municipal water, etc.
