Product Details
The manufacturing of the Pleated Filter absolute (standard 2.5 inch) cartridge has undergone a rigorous change. Now the fully thermal welded construction ensures safe usage in filtration with high temperature fluids, acids, diesel, oily water and solvents. Furthermore our cartridge now has a firm outer-guard making it much stronger.
The TH absolute rated filter cartridge is manufactured under high quality standards in our production facilities. This high performance and cost effective pleated cartridge is especially manufactured for filtration of oilfield fluids. The TH cartridges assure the removal of particles in the size range, necessary to protect the formation. The pleated absolute cartridges have a diameters of 2,5 inch (63.5mm).
The contaminants present in well injection fluids can lead to formation blockage ultimately decreasing productivity. PL EATFLOW cartridges will reliably and effectively resolve these issues. The high performance Pleatlow cartridge is specifically manufactured for the fitration of ilfield fluids and its fully thermal welded construction ensures safe operation and optimum Filtration performance.
Plattlow elements are manufactured with a rigid outer cage ideally suited for use in harsh oilfield environments and available in a wide range of microns suitable for the protection of oilfield formations.
Product features
1.Fully thermal welded, no glue / adhesives
2.All TH pleated cartridges are Beta 5000 rated (efficiency 99,98%)
3.Colour code micron rating for easy recognition
4.The three layer; glass fibre between polyester filter layers for max. removal performance, strength and stability
5.Especially designed for the offshore industry
6.World wide stocking of most common types
7.Quality assured for all absolute cartridges
8.Retrofits for all types and brands
Product parameters
Filter Media : | Borosilicate glass fibre |
Micron Size : | 10 micron ( red ) |
Length : | 40”(1005 mm) |

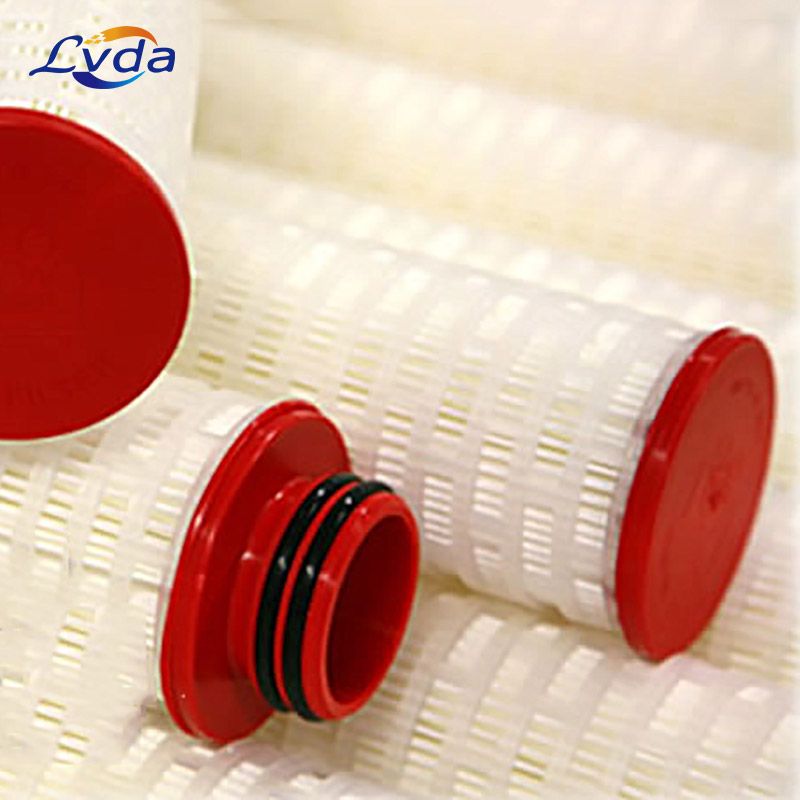

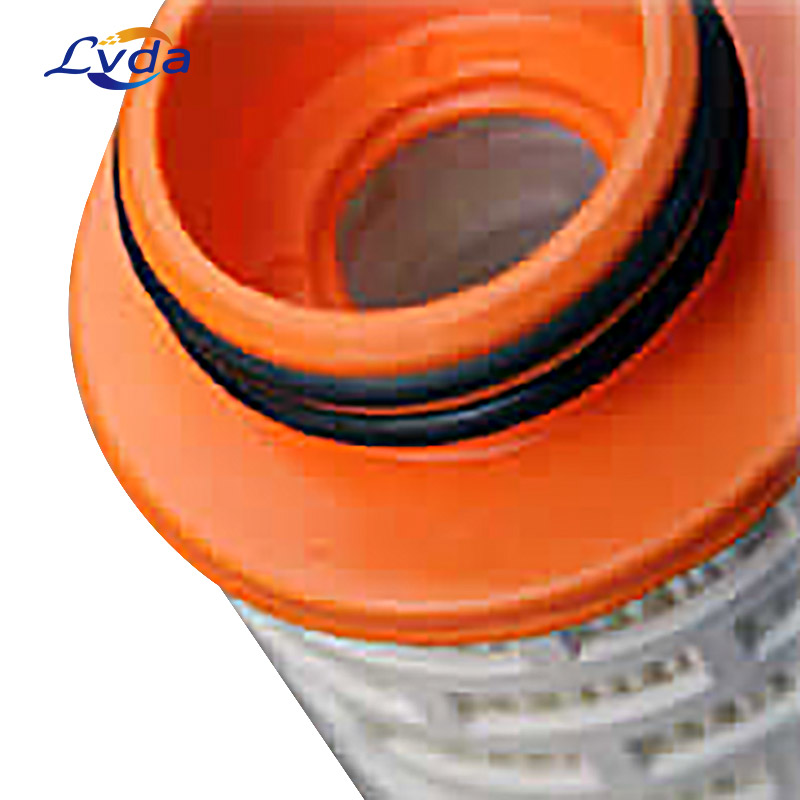

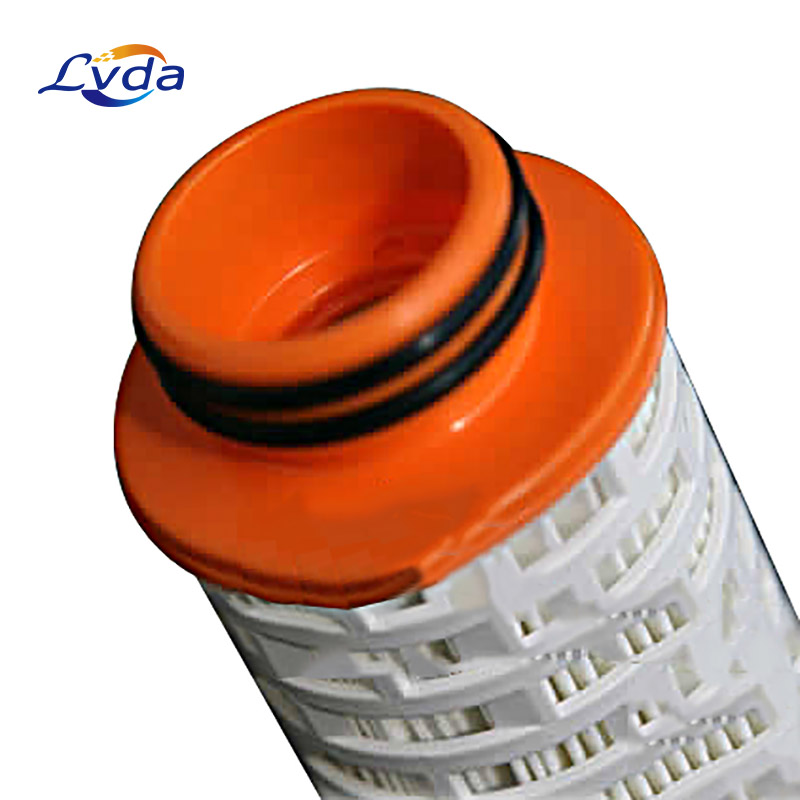

End Cap Construction 20F : | 222 ’0’ ring/flat |
Maximum differential pressure : | 5.5 bar @ 25 ºC (80 Psi @ 77 ºF) |
Maximum working temperature : | 176 ºF (80 ºC) |
Change out differential pressure : | 2.5 bar (37 Psi) |
Outside diameter (OD) : | 2½ ‘’ (65 mm) |
Inside diameter : | 1 ‘’ (25.4 mm) |
Filtration area : | 0.25 - 0.75 m² per 10 ‘’ cartridge |
Product application
1．Completion fluids
2．Work over fluids
3．Gravel pack fluids
4．Waste water treatment
5．Diesel
6．Fuel oil
7．Sea/river/well
8．Water
9．Acids
10．Solvents
11．Gels
12．Amines & glycols
13．Process water
14．Prefiltration RO
