Product Details

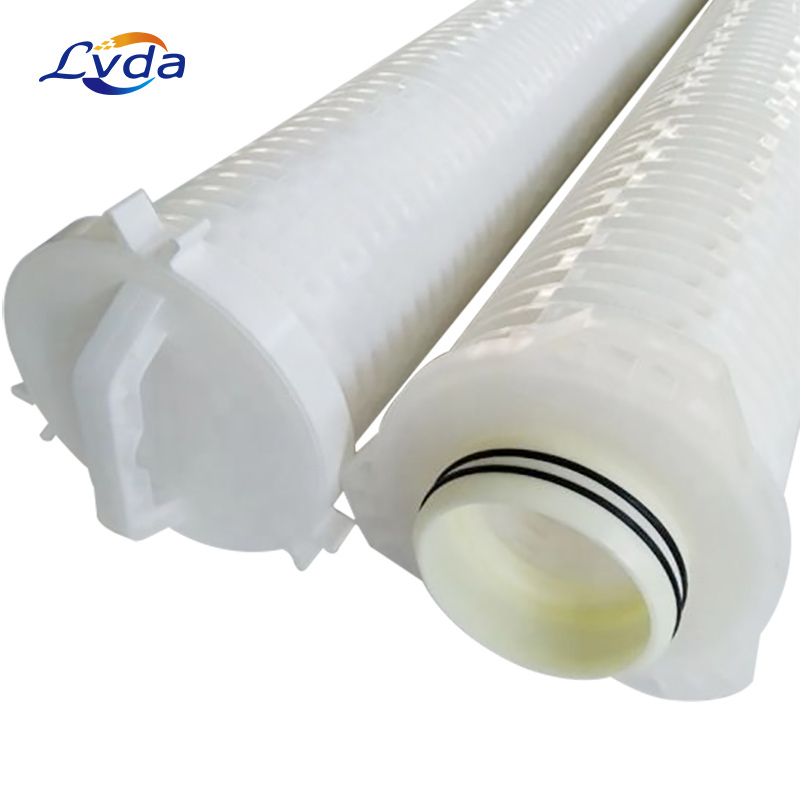

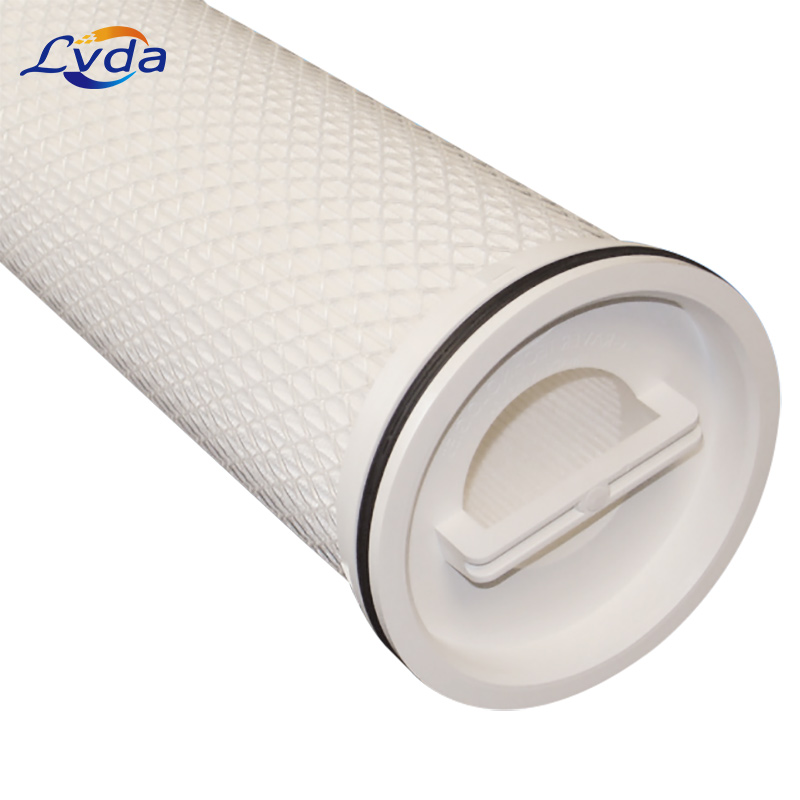

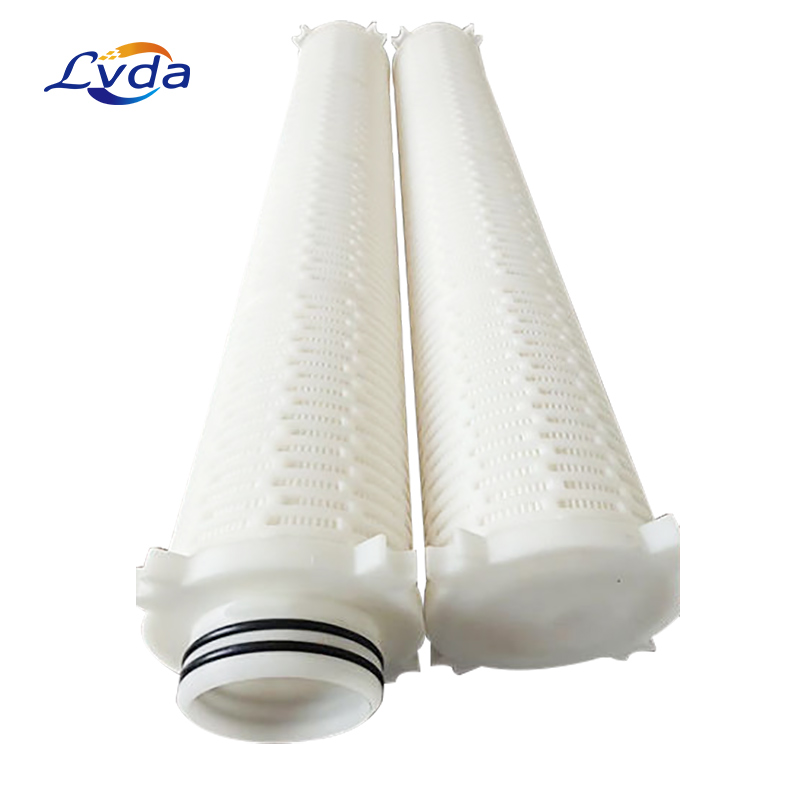

Graver’s TurboGuard High Flow Filter is designed specifically for use in combined cycle or high cycling plants with or without deep beds. TurboGuard should also be used in other
critical utility applications where substantial dirt holding and CRUD removal properties are essential. TurboGuard High Flow Filters are typically installed upstream of the condensate demineralizers to prevent ion exchange resin bead fouling. Unique Media design is focused specifically on utility applications and the specific contaminants in condensate–type systems. Graver TurboGuard High Flow Filter will retro-fit competitive inside-out vessels designed for 6” diameter (152 mm) x 60” (1,524 mm) long filters.
Product features
1.Flow is from the inside core to the outer pleats
2.TurboGuard Filters are wrapped in a one-piece extruded outer cage preventing both media migration during inside out flow, and tearing during removal .
3.TurboGuard's onepiece extruded outer cage allows for easier maintenance and removal
4.Onepiece molded end caps, including molded-in bail for secure handling during istallation and removal
5.Quad Seal gasket system to provide mximum sealing surtaces
6.Thermally bonded construction
7.Low pressure drop at specified flow rates
8.Optimized media surface area allows the full use of installed media area - - not blocked off by media "squeezing'
9.Maximum Flow Rates (lower flow rates will affect performance)
- 60" element up to 500 gpm (1,893 Ipm)
- 40" element up to 350 gpm (1,325 lpm)
- 20" element up to 175 gpm (663 lpm)
10.A complete line of ASME Code Section ViII Division 1 Housings are available
Product parameters
Filter Specifications |
Media | Pleated Proprietary
Multi-Layer Polypropylene |
End Caps | Polypropylene |
Cage | Polypropylene |
O-Rings | EPDM, Quad Seal |
Core (if required) | Polypropylene |
DIMENSIONS |
Outside Diameter | 6” (152 mm) |
Nominal Lengths | 20” (508 mm)
40” (1,016 mm)
60” (1,524 mm) |
OPERATING CONDITIONS |
Max. Operating Temperature | 176°F (80°C) |
Maximum Forward Operating
Differential Pressure | 75 psid @ 70°F (5.2 bar @ 21°C)
30 psid @ 176°F (2.0 bar @ 80°C) |
Recommended Maximum
Changeout Differential Pressure | 35 psid (2.4 bar) |
TurboGuard High Flow nomenclature information |
TurboGuard(TBG)
High Flow Series | Retention Rating(Microns) | Length Inches | Gasket or O-Ring |
1 | 20(508mm) | P=EPDM |
3 | 40(1,016mm) | S=Silicone |
5 | 60(1,524mm) | B=Buna N |
10 |
| V=Viton |
20 |
|
40 |
60 |
100 |
Example: TBG 5-60-P = TurboGuard High Flow Filter, 5 microns, 60 inches, EPDM |
TurboGuard High Flow Series Element Pressure Drop |
Microns | Element Pressure Drop psid/gpm | Element Pressure Drop Mbar/M3/Hr |
20” | 40” | 60” | 20” | 40” | 60” |
1 | 0.02 | 0.0097 | 0.0065 | 6.0845 | 2.9395 | 1.982 |
3 | 0.0167 | 0.0081 | 0.0054 | 5.0705 | 2.4495 | 1.6516 |
5 | 0.0076 | 0.0037 | 0.0025 | 2.3179 | 1.1198 | 0.755 |
