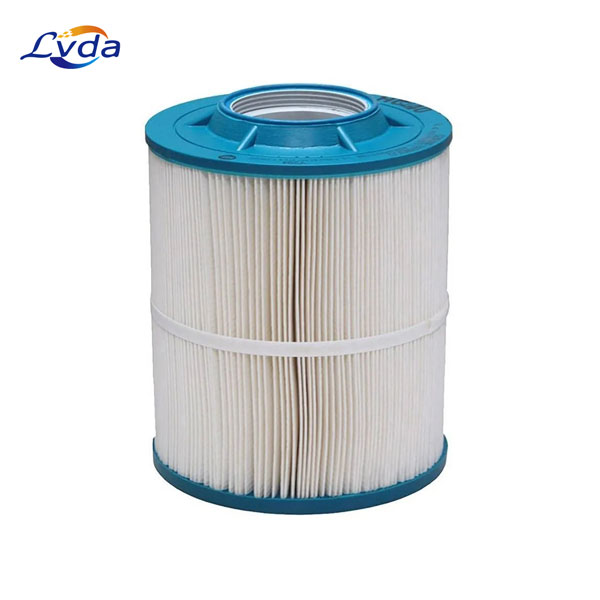

HC/40-1 Pleated Polyester Hurricane Filter
HC/40-1 Pleated Polyester Hurricane Filter

HC/40-1 Pleated Polyester Hurricane Filter

High Flow Filter Cartridge

Model Number: HC/40-1

Length : 9-5/8"

Diameter : 7-3/4"

Surface Area : 40 ft2

Filter Media : Polyester-Plus

Flow Rate : 35 gpm

Get Quotation

Product Details

The patented design of HC/40-1 Hurricane Cartridges provides exceptionally fine filtration at very high flow rates with minimal pressure drop. This cartridge is rated for 1 micron (nominal).
Features
Fewer cartridges for fewer change-outs and lower maintenance cost
Pleated Polyester-Plus ™ filter media provides higher flow rates and lower initial pressure drop
Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
End cap, center tube and media are thermally bonded as one integral component for added strength
Offered in three sizes (40, 90 and 170) and eight micron ratings (0.35, 1, 5, 10, 20, 50, 100 and 150) to meet all your high flow requirements.
Applications
Commercial/Residential Drinking Water Filtration
Municipal Drinking Water Filtration
Reverse Osmosis Pre-filtration
Desalination Pre-filtration
Industrial Water Filtration
Cooling Tower Filtration
Chill Water Loop Filtration
Food & Beverage Filtration
Marine / Aquatic Filtration
Industrial Coolant Filtration
Specifications
Micron Ratings: Nominal micron ratings of 0.35,1, 5, 10, 20, 50, 100, 150
End Caps: Pliable PVC with sealing surface built-in
Filter Media: nominal pleated Polyester-Plus
Temperature: 140˚F (60˚C) temperature limit
Center Tubes: ABS or PVC
Product CodeNominal Micron RatingMedia (sq ft)

Recommended Flow

Rate*(GPM)

Max Flow Rate* (GPM)Max Flow Rate* (LPM)Max Flow Rate* (M 3 /HR)No./ CartonCarton Size
HC/40-0.350.354035501891219x9x11
HC/40-114035501891219x9x11
HC/40-554035501891219x9x11
HC/40-10104035501891219x9x11
HC/40-20204035501891219x9x11
HC/40-50504035501891219x9x11
HC/40-1001004035501891219x9x11
HC/40-1501504035501891219x9x11
HC/90-0.350.3590701003782419x9x21
HC/90-1190701003782419x9x21
HC/90-5590701003782419x9x21
HC/90-101090701003782419x9x21
HC/90-202090701003782419x9x21
HC/90-505090701003782419x9x21
HC/90-10010090701003782419x9x21
HC/90-15015090701003782419x9x21
HC/170-0.350.351701051505683619x9x32
HC/170-111701051505683619x9x32
HC/170-551701051505683619x9x32
HC/170-10101701051505683619x9x32
HC/170-20201701051505683619x9x32
HC/170-50501701051505683619x9x32
HC/170-1001001701051505683619x9x32
HC/170-1501501701051505683619x9x32
