High flow pleated filter cartridge

Product Details

Large flow filter element | Large flow pleated filter element | RO reverse osmosis security filter element

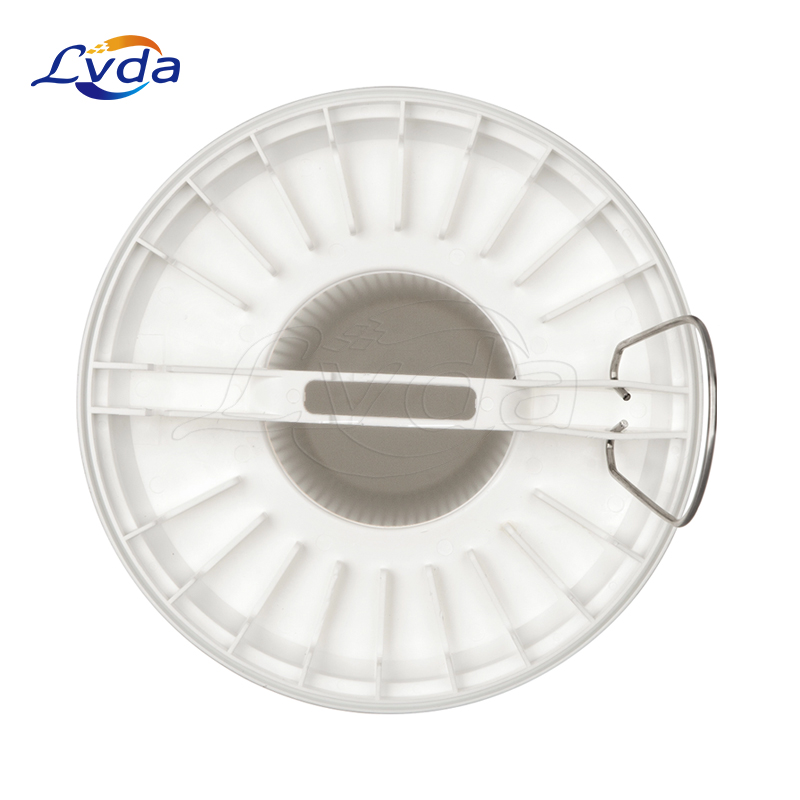

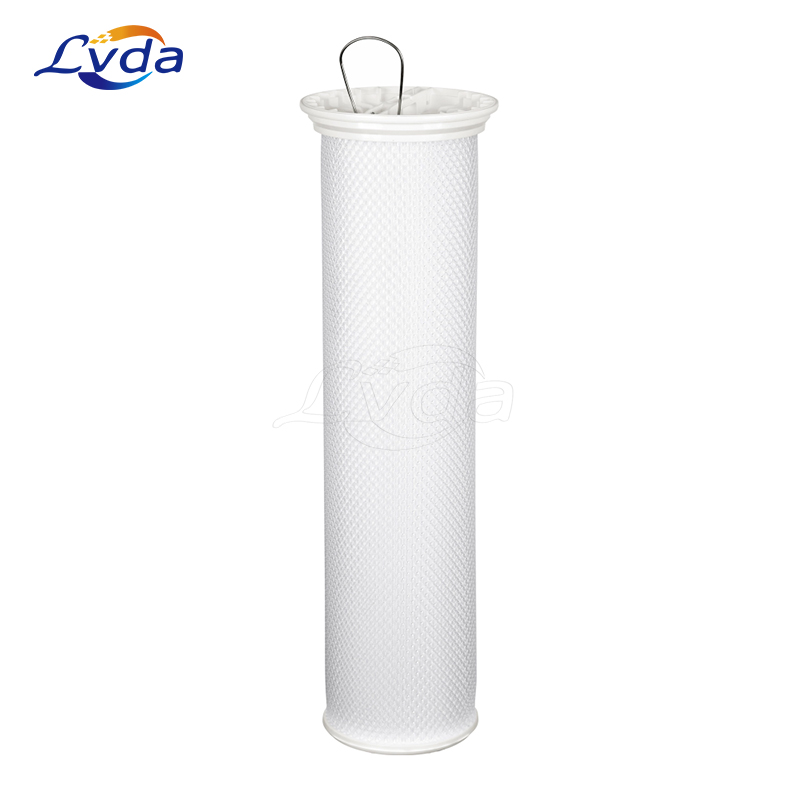

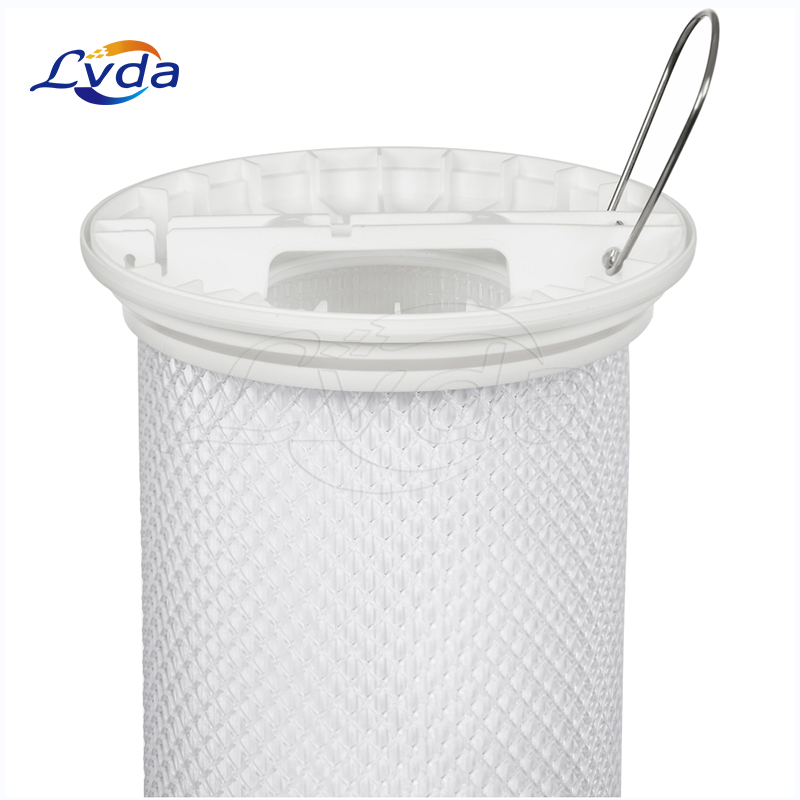

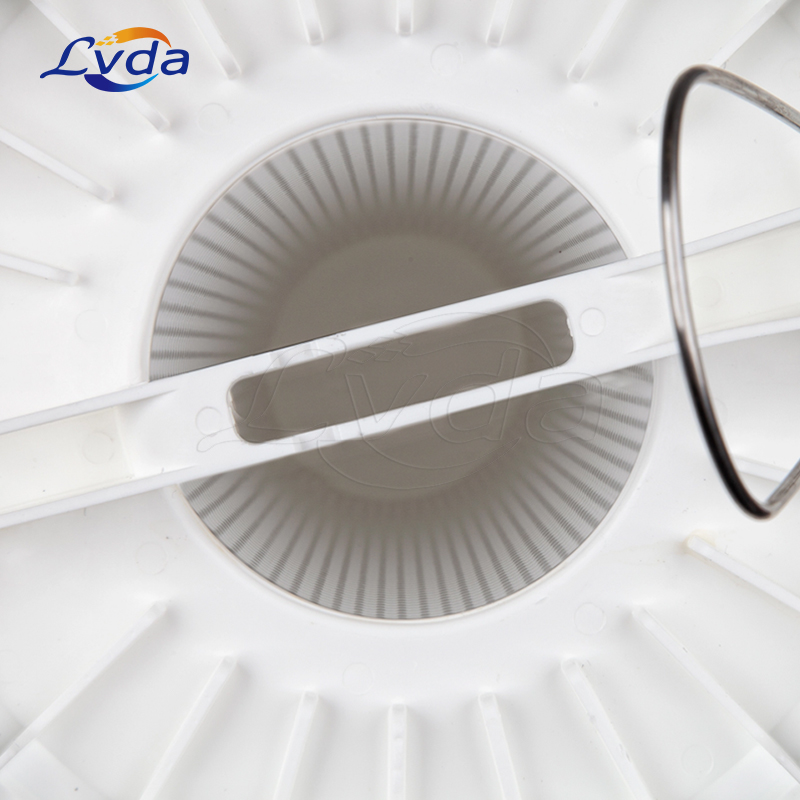

High Flow Filter This filter has a large diameter of 6 inches / 152 mm, and has no central support frame, one end is open, and the filter fluid flows from the inside to the outside. The large diameter design of the filter element combined with the increased effective filter area can greatly reduce the number of filter elements and reduce the size of the housing. The long filter life reduces capital and labor costs in many applications due to high flow rates.

*gradient aperture structure

*When filtering water, the flow rate of one filter element can reach up to 110m³/H

*Filter system size can be reduced by up to 50%

*Available in 20 inch/508mm, 40inch/1016mm and 60 inch/1524mm lengths

*The flow direction from inside to outside ensures that all impurities are trapped inside the filter element

Product parameters

*Filter material: folded deep polypropylene (PP), or meltblown polypropylene

*Support/Drainage Layer: Polypropylene

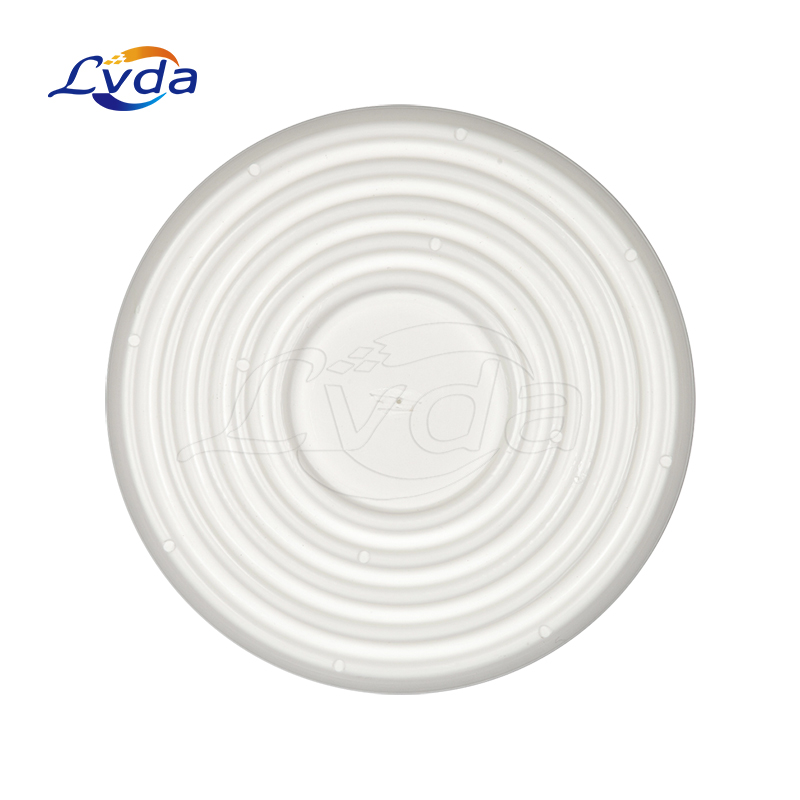

*End Caps: Glass Fiber Reinforced Polypropylene

*O-ring seal material: EPDM, Buna N

Filtration accuracy:

1μm, 4.5μm, 6μm, 10μm, 20μm, 40μm, 70μm, 100μm

Filter Size:

Outer Diameter: 6 inch (152mm)

Length: 20inch(508mm)/40inch(1016mm)/60inch(1524mm)

Product features

*Maximum operating temperature: Folded Polypropylene: 82 C; Meltblown Polypropylene: 65 C

*Maximum pressure drop: Folded polypropylene: 3.4bar, 82 C; Meltblown polypropylene: 1.03bar, 65 C

*Recommended pressure drop for filter replacement: 2.4bar, 20 C

*Recommended maximum filtered water flow: 20inch long filter element: 660LPM; 40inch long filter element: 1,300LPM; 60inch long filter element: 1,900LPM

Product applications

*RO security filtration, seawater desalination pretreatment

* Filtration of power plant condensate water

* Filtration of APIs, solvents, and water in the biopharmaceutical industry

* Filtration of bottled water, sugar liquid, edible oil, fruit juice, soft drink, milk

*Paints, coatings, petrochemicals

*Microelectronics, Film, Fiber, Resin
