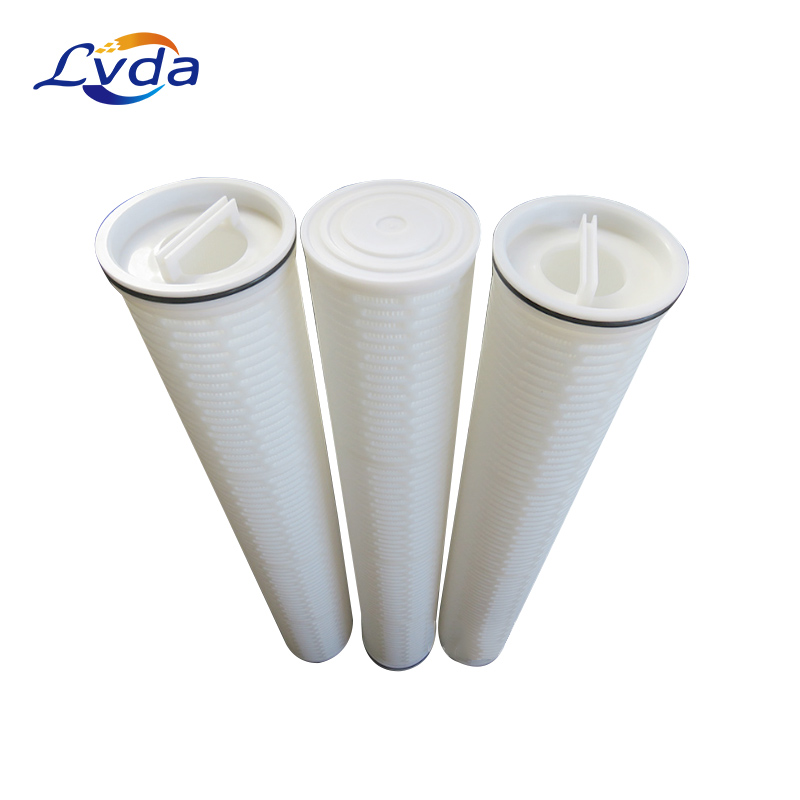

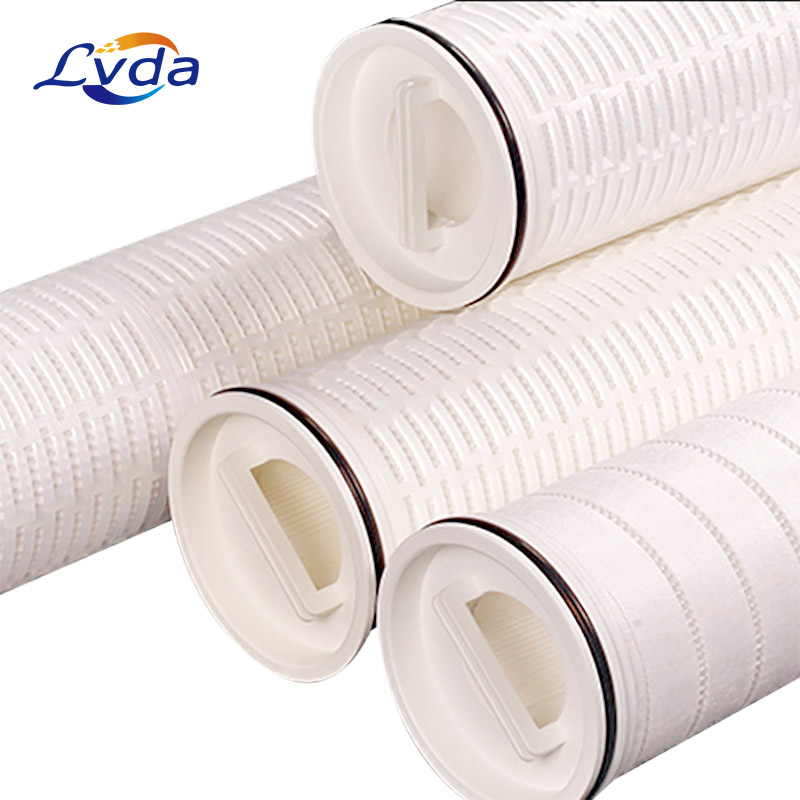

The High Flow filter is suited for applications such as cooling water, pre-RO, and resin trap filtration. It is a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. The filter's unique crescent-shaped pleat geometry, combined with its large 152 mm / 6 in diameter, reduces the number of filters and size of housing required. The cartridge is also available in a wide range of media types for other applications.
Product features
1.Features of High Flow water filter cartridge HFU640GF100H13
2.Up to 50% smaller filter system possible
3.Up to forty times fewer elements to change out
4.Very high flow rates per filter cartridge, up to 500 gpm / 114 m3/hr
5.Available in 508 mm / 20 in, 1016 mm / 40 in and 1524 mm / 60 in lengths
6.Coreless construction to minimize waste disposal
7.Absolute rated filter medium for reproducible performance
8.Inside to outside flow configuration - all contaminants held within the single open ended filter
Product parameters
Model: | HFU640GF100H13 |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Length: | 40 |
Outer Diameter: | 6.4 |
Filter Type: | HIGH FLOW SERIES |
Filtration Selectivity Raring: | 99.98%@ 10 µm(BETA 5000) |
End Caps: | POLYPROPYLENE |
Jacket: | POLYPROPYLENE |
Handle: | POLYPROPYLENE |
Gasket: | BUNA |
Product application
1.Pre-filtration or RO system,DI water
2.Solvents,selected acids&lyes,chemical industry
3.Semiconductor, Eletronic industry ultrapure water system
4.FOOD and beverage,drinking water treatment
5.High Flow filter elements are designed for high particle removal efficiency of fine particulates from water applications.
· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Various payment items are acceptable
· Good service by experienced manager
