Product Details

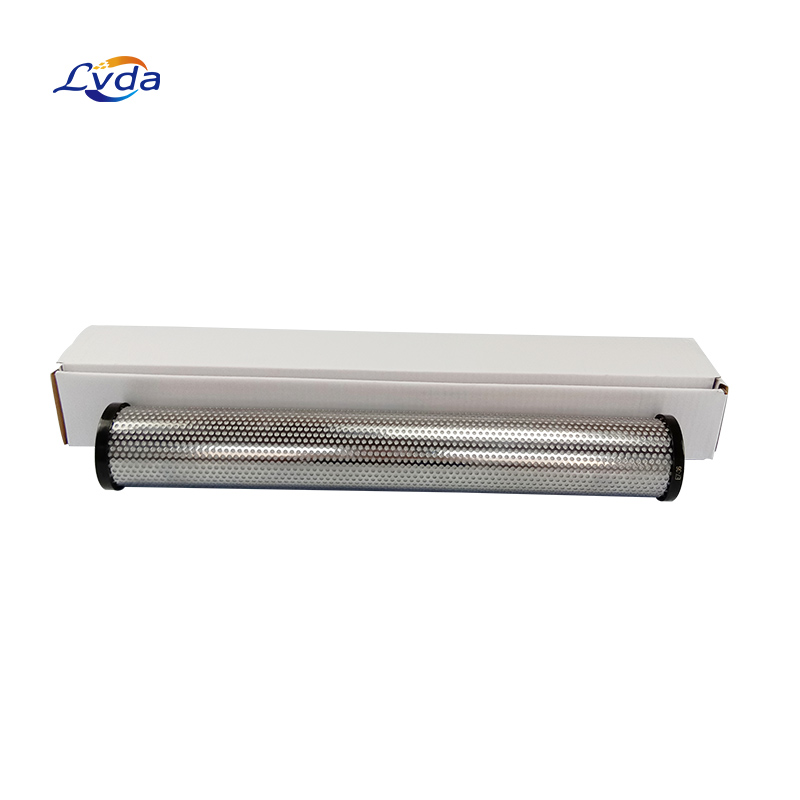

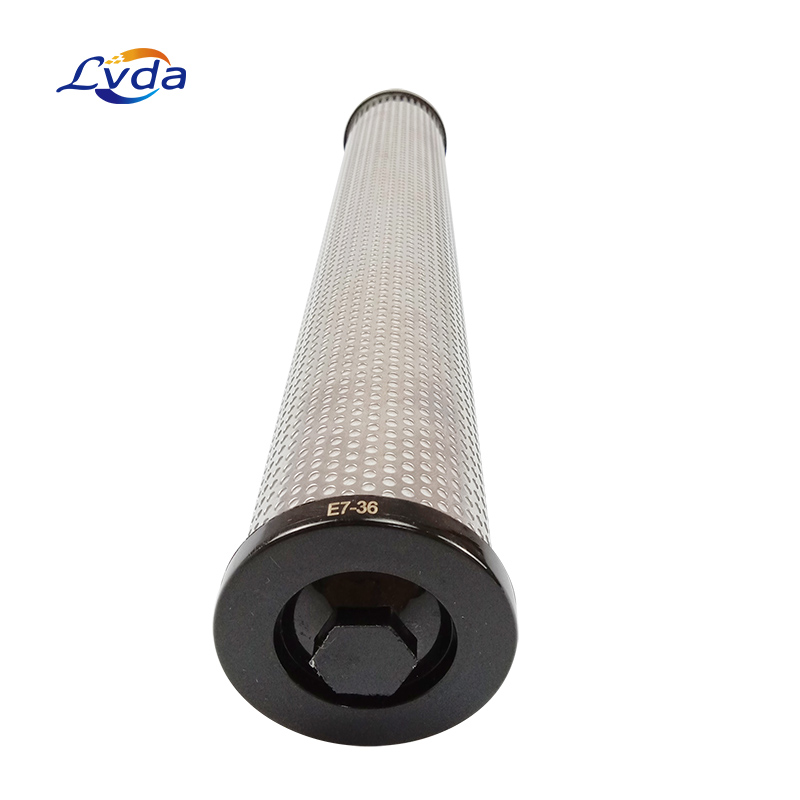

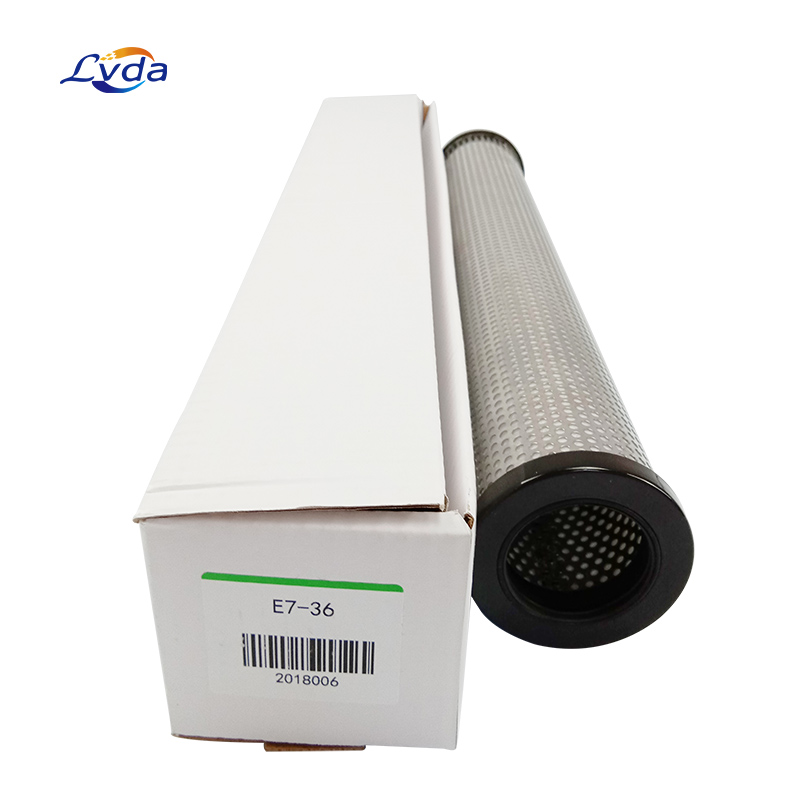

The air filter produced by our company can completely replace the original product. It is completely made with drawings. The components of the filter element are composed of upper and lower plastic end caps, inner and outer stainless steel skeleton, middle glass fiber and filter paper. Its parameters, structure and size are exactly the same as the original one, and there are domestic filter elements and imported filter materials in the selection of filter materials，which is suitable for the requirements of air pressure pipelines in various industries and can give customers different choices.Compared to the original products, the price is more favorable, the quality is high, and it has has an ultra-high cost performance ratio.
Hankison precision filter element is the core component of compressed air treatment. The precision filter element made of stainless steel support and imported glass fiber can intercept impurities and tiny oil droplets above 0.01 microns in the compressed air. The sponge wrapped on the outside can effectively prevent the intercepted oil droplets from being taken away, thereby improving the cleanliness of the compressed air and controlling the oil content of the compressed air below 0.01ppm.
Grade 7: Air Line. Provides removal of liquid water and oil. Removes solid particulate to 1.0 micron with a 1.0 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration captures larger particles with alternating layers of fiber media and screen. The second stage of filtration coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media. Grade 7: Air Line. Provides removal of liquid water and oil. Removes solid particulate to 1.0 micron with a 1.0 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration captures larger particles with alternating layers of fiber media and screen. The second stage of filtration coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media.
Product features
1.Withstands temperatures to 150°F (66°C)
2.Push-on elements provide simple replacement
3.Piston type seals keeps unfiltered air from bypassing element
4.Stainless steel, corrosion resistant inner and outer core,Low resistance to flow,Seam welded durability
5.Matrix blended fiber media,Large, effective surface area ensures high efficiencies and minimizes pressure drop,Coated, closed cell foam sleeve, Resists chemical attack from oils and acids,Ensures high efficiencies by preventing reenter of coalesced liquids
Chemically resistant end caps,Silicone free
Product parameters
| Flow | E1(F) | E3(H) | E5(A) | E7(T) | E9(C) |
| m³/ min |
| 1 | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 |
| 2 | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 |
| 4 | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 |
| 5 | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 |
| 7 | E1-32 | E3-32 | E5-32 | E7-32 | E9-32 |
| 10 | E1-36 | E3-36 | E5-36 | E7-36 | E9-36 |
| 15 | E1-40 | E3-40 | E5-40 | E7-40 | E9-40 |
| 20 | E1-44 | E3-44 | E5-44 | E7-44 | E9-44 |
model | Level | Handling capacity | Outer diameter | height | Total height |
*-16 | E1 E3 E5 E7 E9 | 1.6m³/min | 43mm | 89mm | 136mm |
*-20 | E1 E3 E5 E7 E9 | 2.6m³/min | 43mm | 150mm | 193mm |
*-24 | E1 E3 E5 E7 E9 | 4.0m³/min | 61mm | 167mm | 230mm |
*-28 | E1 E3 E5 E7 E9 | 4.8m³/min | 68mm | 277mm | 340mm |
*-32 | E1 E3 E5 E7 E9 | 7.0m³/min | 68mm | 335mm | 405mm |
*-36 | E1 E3 E5 E7 E9 | 11.5m³/min | 68mm | 450mm | 517mm |
*-40 | E1 E3 E5 E7 E9 | 15.0m³/min | 83mm | 510mm | 596mm |
*-44 | E1 E3 E5 E7 E9 | 20.0m³/min | 83mm | 665mm | 742mm |
*-48 | E1 E3 E5 E7 E9 | 25.0m³/min | 83mm | 775mm | 854mm |
| Model | Category | Working
pressure
(Mpa) | Operating
temperature
(℃) | Filtering
precision(um) | Residual
oil
(ppm) | Cartridge
life
(h) |
| C | E9 | 0.4-1.0(Mpa) | 0-80℃ | 3 | 0.6 | 2500-3000 |
| T | E7 | 1 | 0.3 | 2500-3000 |
| A | E5 | 0.01 | 0.01 | 2000-3000 |
| H | E3 | 0.01 | 0.01 | 1500-2000 |
Product application
1. Metallurgy
2. Petrochemical
3. Textiles, electronics and Pharmaceutical industry
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
9. Papermaking
10. Metro engineering
