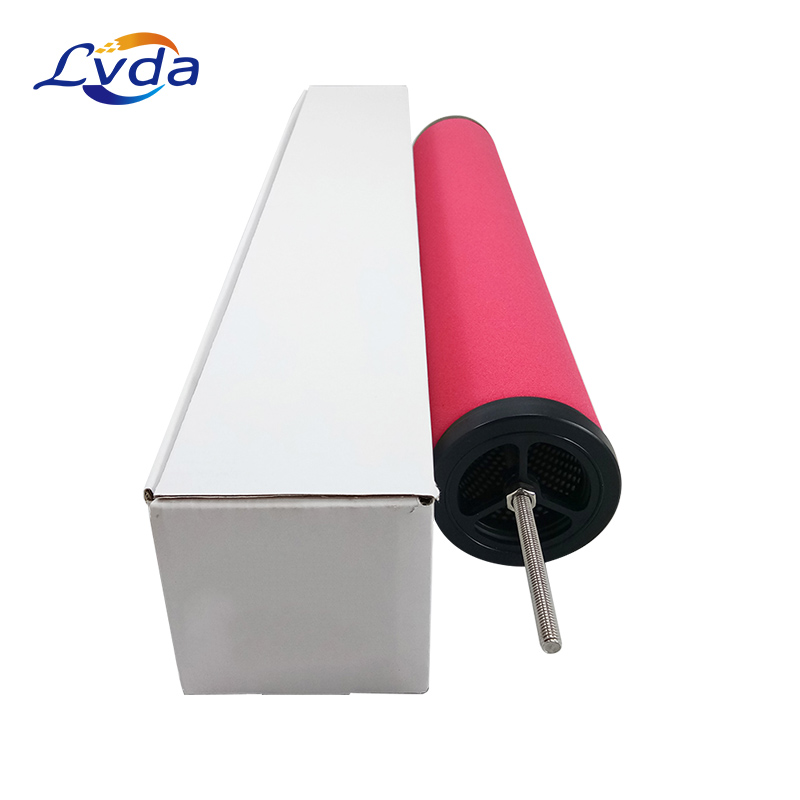

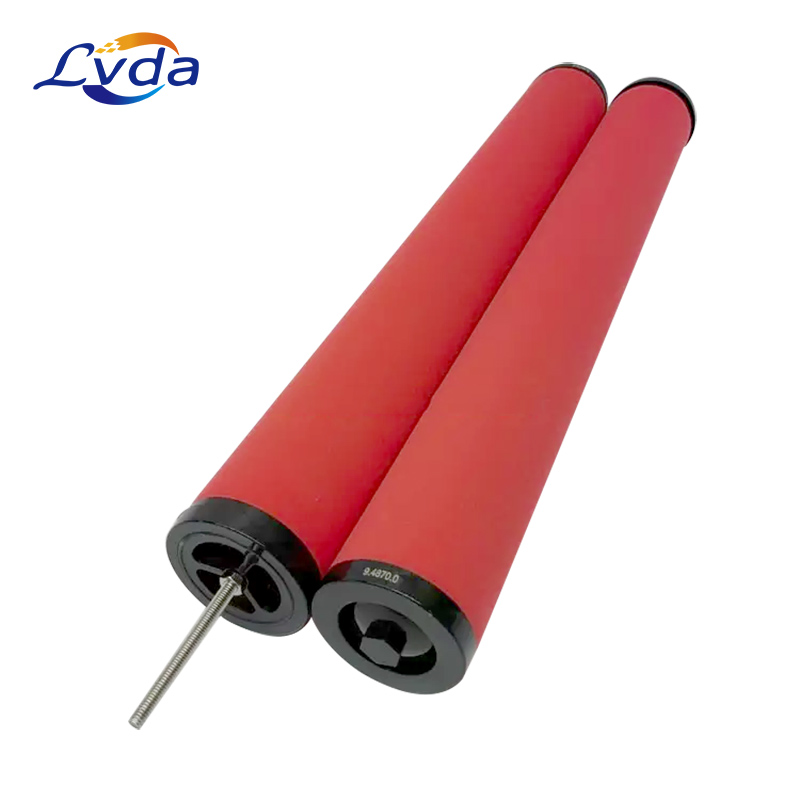

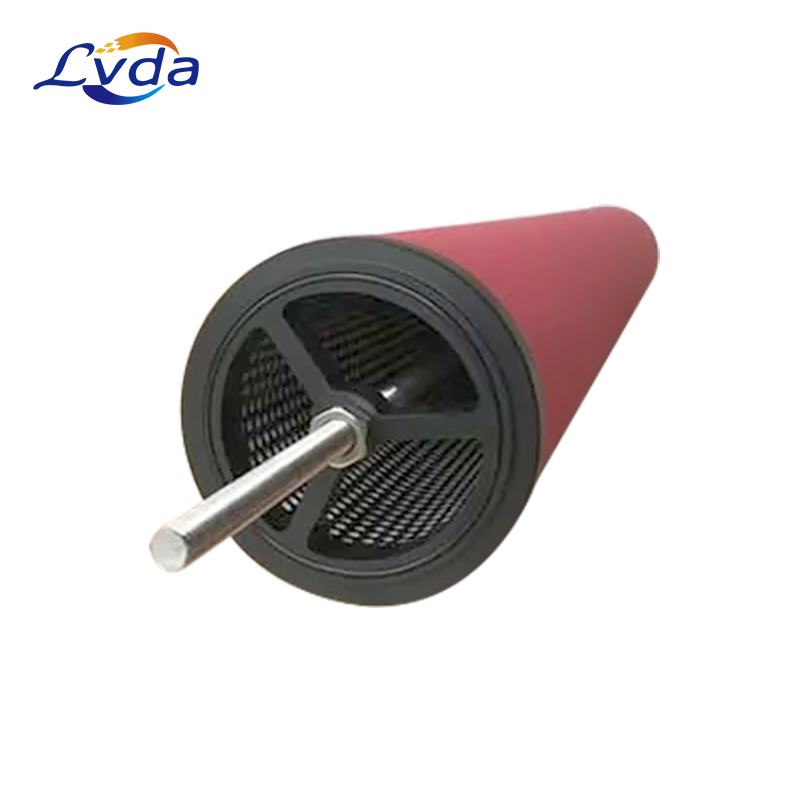

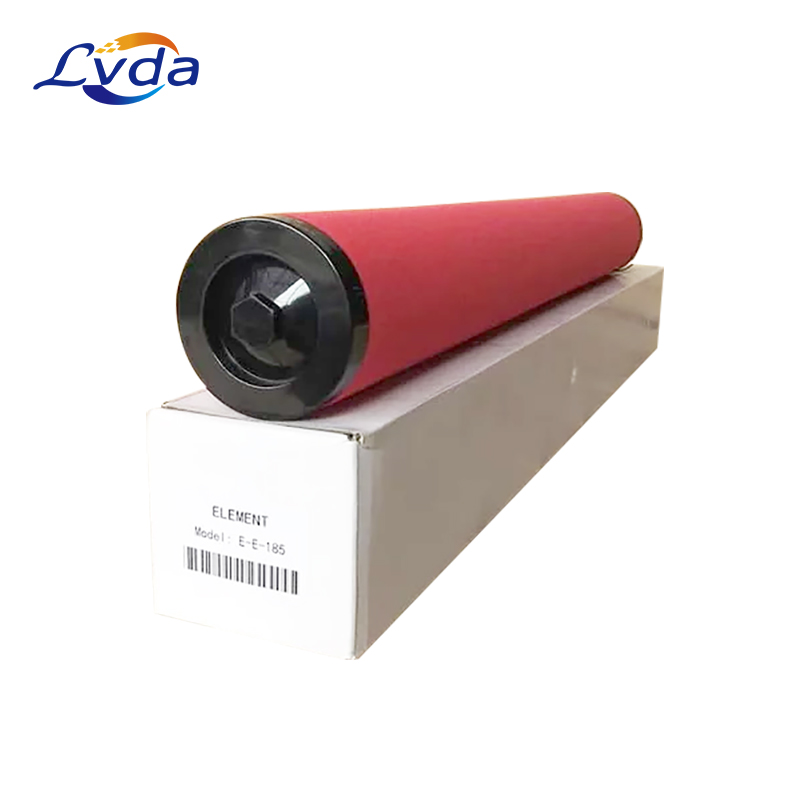

Replacement E-E-185 High Quality Inline Filter Element
Replacement E-E-185 High Quality Inline Filter Element
Replacement E-E-185 High Quality Inline Filter Element
Replacement E-E-185 High Quality Inline Filter Element
Replacement E-E-185 High Quality Inline Filter Element

Replacement E-E-185 High Quality Inline Filter Element

Replacement for Hankison Filter

Model Number: E-E-185

Diameter: : 82.00 mm

Height: : 674.00 mm

Differential pressure dry: : 50 mbar

Differential pressure wet: : 120 mbar

Flow direction: : Inside to outside

Get Quotation

Product Details

Precision filter element (also known as security filter), the shell of the cylinder is generally made of stainless steel, and the interior uses tubular filter elements such as PP melt blown, wire fired, folded, titanium filter element, and activated carbon filter element as filter elements. Different filter elements are selected according to different filter media and design processes to meet the requirements of effluent quality. With the continuous development of the filtration industry, more and more industries and enterprises have applied precision filters, and more and more enterprises have joined the precision filter industry.

Maintenance

The core component of the precision filter is the filter element, which is easily damaged and needs special protection.

If the precision filter element works for a long time, it will intercept a certain amount of impurities, which will reduce the working speed. Therefore, it should be cleaned frequently and the filter element should be cleaned at the same time.

During the cleaning process, pay special attention to the cleaning of the filter element, and do not deform or damage it, otherwise the filtering accuracy will be reduced and the production requirements will not be met.

If the filter element is deformed or damaged, it must be replaced immediately.

Some precision filter elements cannot be used repeatedly, such as bag filter elements, polypropylene filter elements, etc;


Product features

1.High filtering accuracy, even filter aperture

2.Small filtration resistance, large flux, strong sewage interception ability and long service life.

3.The filter element material has high cleanliness and no pollution to the filter medium.

4.It is resistant to acid, alkali and other chemical solvents.

5.High strength, high temperature resistance, and the filter element is not easy to deform.

6.Low price, low operation cost, easy cleaning, replaceable filter element.


Product parameters


Model:

E-E-185

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

6000-  8000h

Certificate:

ISO9001:2015

Quality:

100%  Tested

Filter  Connector:

Flat  Connector

Filtration  Grade:

HEPA  Filter

Type:

Air  Filter

Filtration  efficiency:

99.99%  filtration area

Filter  material:

glassfiber,  filter paper, activated carbon

Diameter:

82.00  mm

Height:

674.00  mm

Differential  pressure dry:

50  mbar

Differential  pressure wet:

120  mbar

Operating  temperature Min.:

1,5  °C

Operating  temperature Max.:

65  °C

Flow  direction:

Inside  to outside

Grade:

M

Solid  class:

2

Oil  class:

2

Particle  retention:

0.1  µm

Particle  retention rate ISO:

0.9998

End  cap material:

Aluminium

Product application

1.Automotive

2.Electronics

3.Food & Beverages

4.Chemical

5.Petrochemical

6.Plastics

7.Paint

8.General Industrial application
