Product Details

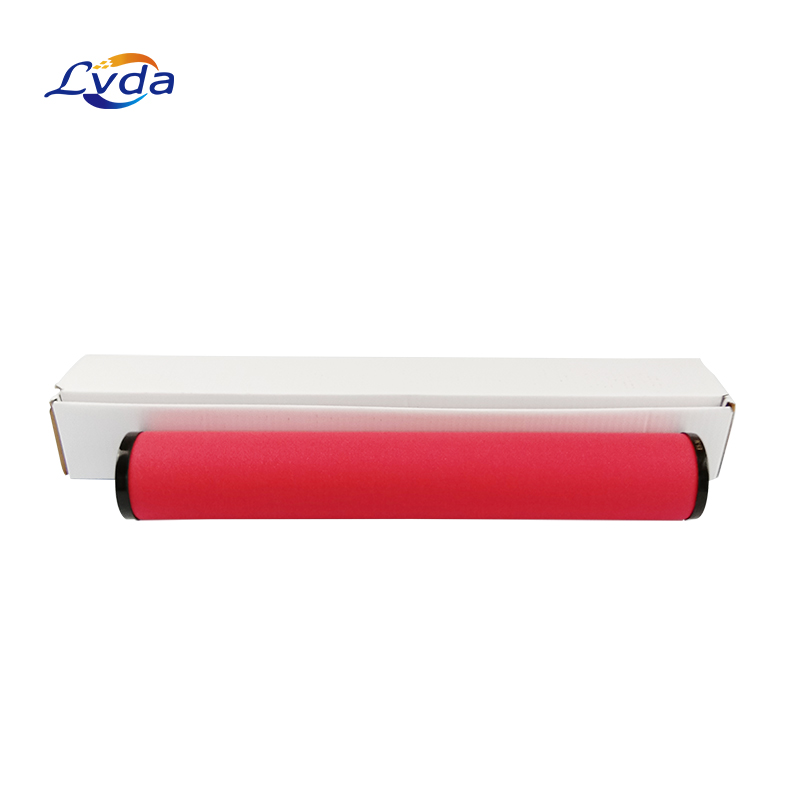

The air filter produced by our company can completely replace the original product. It is completely made with drawings. The components of the filter element are composed of upper and lower plastic end caps, inner and outer stainless steel skeleton, middle glass fiber and filter paper. Its parameters, structure and size are exactly the same as the original one, and there are domestic filter elements and imported filter materials in the selection of filter materials，which is suitable for the requirements of air pressure pipelines in various industries and can give customers different choices.Compared to the original products, the price is more favorable, the quality is high, and it has has an ultra-high cost performance ratio.
Hankison precision filter element is the core component of compressed air treatment. The precision filter element made of stainless steel support and imported glass fiber can intercept impurities and tiny oil droplets above 0.01 microns in the compressed air. The sponge wrapped on the outside can effectively prevent the intercepted oil droplets from being taken away, thereby improving the cleanliness of the compressed air and controlling the oil content of the compressed air below 0.01ppm.
E9 class - Separation filter element
It is suitable for filtering out a large amount of liquid and 3-micron agglomerates to reach the residual oil content of PPMW/W. The first-level two steel hole pipes are used for 10-micron mechanical separation. The second-stage deep fiber medium filters out solid and liquid particles of 3 microns, and is used for general protection after the cooler behind the air compressor and before other filters, and used as a pre-treatment device for the refrigerated dryer.
E7 class - Main circuit filter
It is suitable for filtering out wavy water and oil. It can filter out solid particles as small as 1 micron and reach 1.0PPMW/W residual powder content. The first-grade fiber media and media filter are alternately laminated to filter out larger particles. , Level 2 Multilayer Epoxy Bonded Hybrid Fiber Media, Deep Fiber Media, Can coagulates oil mist and filters out solid particles. It is used for pre-treatment before the E5 filter, and after the refrigerated dryer and the suction machine, to further improve the air quality.

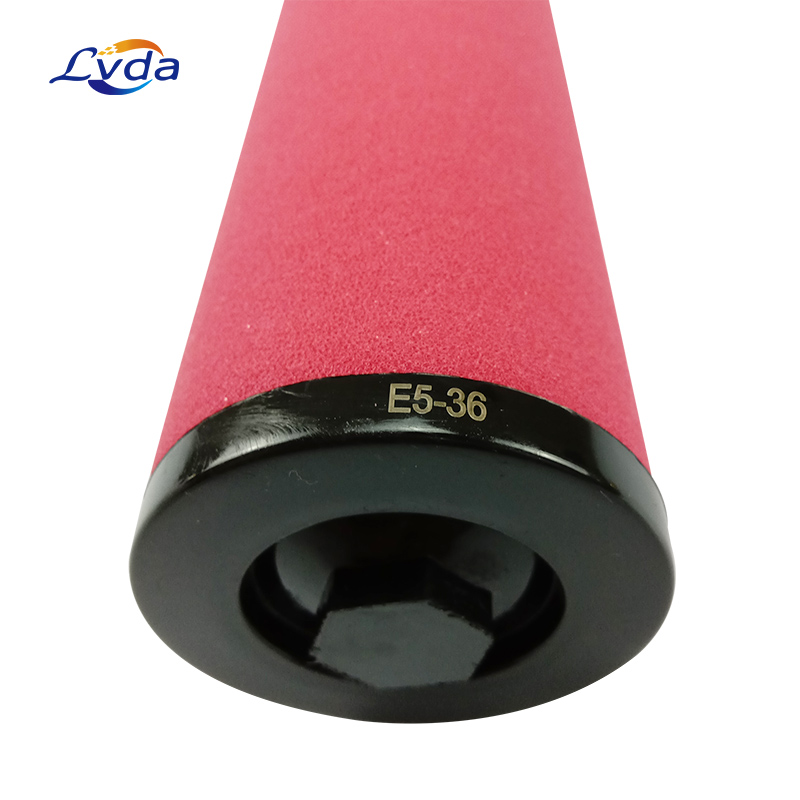

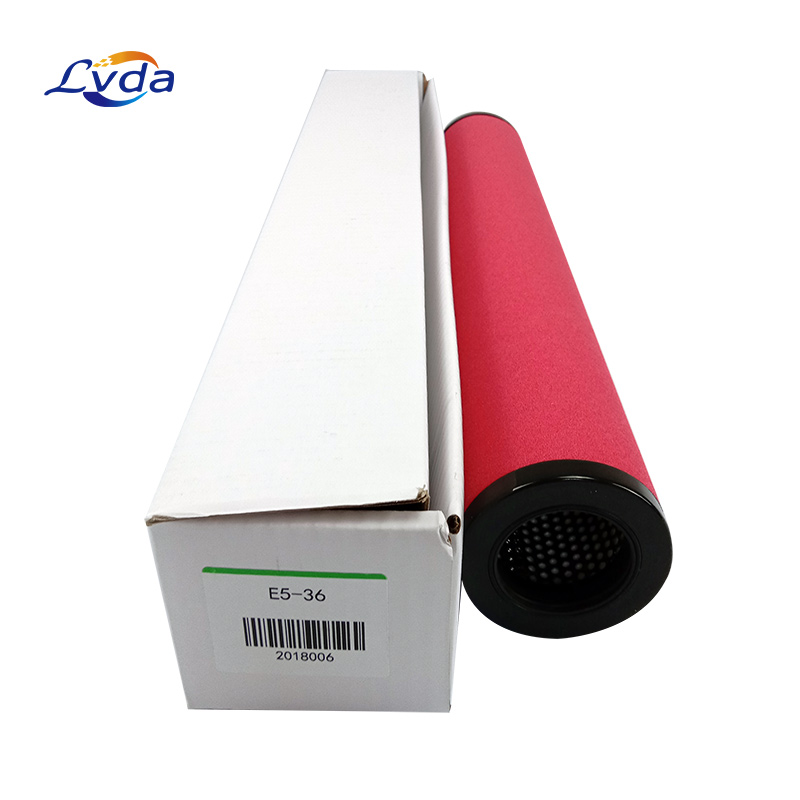

E5 class - High Efficiency Oil Removal Filter
It is suitable for coalescing extremely fine water vapor and oil mist, and can filter out solid particles as small as 0.01 microns, reaching 0.01PPMW/W residual oil content, and almost all moisture, dust and oil are removed. Stage 1 multi-layer fibrous media and media strainer,can filter out larger particles, filter the air before it enters the second stage of filtration. The second level of multi-layer bonded fiber media can filter out fine agglomerates and is generally used before the E3 filter and suction dryer, and after the cold dryer, which can protect the air and ensure that there is no oil in the air.
E3 class - High efficiency oil removal filter
It is suitable for coalescing very fine water vapor and oil mist. It can filter out solid particles as small as 0.01 micron and reach 0.001PPMW/W residual oil content. The first stage is for filtration and airflow dispersion. The second stage is multi-layer adhesive Synthetic fiber media, which can filter out fine agglomerates. It is generally used before E1 filtration and suction dryers, and after cold dryers, for protection purposes to ensure that there is no oil in the air.
E1 class - Oil removal and deodorization filter element
It is suitable for filtering oil vapor and hydrocarbon vapor. It can filter solid particles as small as 0.01 microns and reach 003PPMW/W residual oil content，without moisture, dust and oil.It plays the role of the last filter. The first-level is a very fine activated carbon powder stable layer, which can filter out most of the oil vapor, and the second-level is a multi-layer fiber medium bonded micro-fine activated carbon powder. It can filter out residual vapors and is used in some units that must use high-quality air, such as food industry, respiratory industry, aseptic packaging, etc.
Product features
1. High porosity, good air permeability, low resistance and low pressure difference;
2. After forming into a folded shape, the filtering area is large and the dirt holding capacity is large;
3. Thickened material, high-precision sponge, high temperature resistance, corrosion resistance, suitable for high viscous liquid filtration, long service life;
4. Good regeneration performance, can be used repeatedly after chemical cleaning, high temperature and ultrasonic cleaning;
5. All stainless steel structure, wide chemical compatibility;
6. Built-in high-quality sealing ring, good sealing performance;
7. Industrial casting strictly controls the production details to control the error and control the error within an acceptable range;
8.Beautiful design,high pressure stability,used for air compressor,high precision and high filtration,the highest quality materials and workmanship;
Product parameters
| Precision code | Precision | Residual oil |
| (μm) | (ppm) |
| E1 | 0.01 | 0.001 |
| E3 | 0.01 | 0.001 |
| E5 | 0.01 | 0.01 |
| E7 | 1 | 1 |
| E9 | 3 | 5 |
| Flow | E1 | E3 | E5 | E7 | E9 |
| m3/min |
| 1 | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 |
| 2 | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 |
| 3 | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 |
| 4.9 | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 |
| 6;7.2 | E1-32 | E3-32 | E5-32 | E7-32 | E9-32 |
| 11 | E1-36 | E3-36 | E5-36 | E7-36 | E9-36 |
| 14 | E1-40 | E3-40 | E5-40 | E7-40 | E9-40 |
| 18 | E1-44 | E3-44 | E5-44 | E7-44 | E9-44 |
model | Level | Handling capacity | Outer diameter | height | Total height |
*-16 | E1 E3 E5 E7 E9 | 1.6m³/min | 44mm | 98mm | 136mm |
*-20 | E1 E3 E5 E7 E9 | 2.6m³/min | 44mm | 155mm | 193mm |
*-24 | E1 E3 E5 E7 E9 | 4.0m³/min | 60mm | 165mm | 230mm |
*-28 | E1 E3 E5 E7 E9 | 4.8m³/min | 68mm | 276mm | 340mm |
*-32 | E1 E3 E5 E7 E9 | 7.0m³/min | 68mm | 339mm | 405mm |
*-36 | E1 E3 E5 E7 E9 | 11.5m³/min | 68mm | 446mm | 517mm |
*-40 | E1 E3 E5 E7 E9 | 15.0m³/min | 83mm | 511mm | 596mm |
*-44 | E1 E3 E5 E7 E9 | 20.0m³/min | 83mm | 666mm | 742mm |
*-48 | E1 E3 E5 E7 E9 | 25.0m³/min | 83mm | 778mm | 854mm |
Product application
1. Metallurgy
2. Petrochemical
3. Textiles, electronics and Pharmaceutical industry
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
9. Papermaking
10. Metro engineering
