Product Details
The air filter produced by our company can completely replace the original product. It is completely made with drawings. The components of the filter element are composed of upper and lower plastic end caps, inner and outer stainless steel skeleton, middle glass fiber and filter paper. Its parameters, structure and size are exactly the same as the original one, and there are domestic filter elements and imported filter materials in the selection of filter materials，which is suitable for the requirements of air pressure pipelines in various industries and can give customers different choices.Compared to the original products, the price is more favorable, the quality is high, and it has has an ultra-high cost performance ratio.

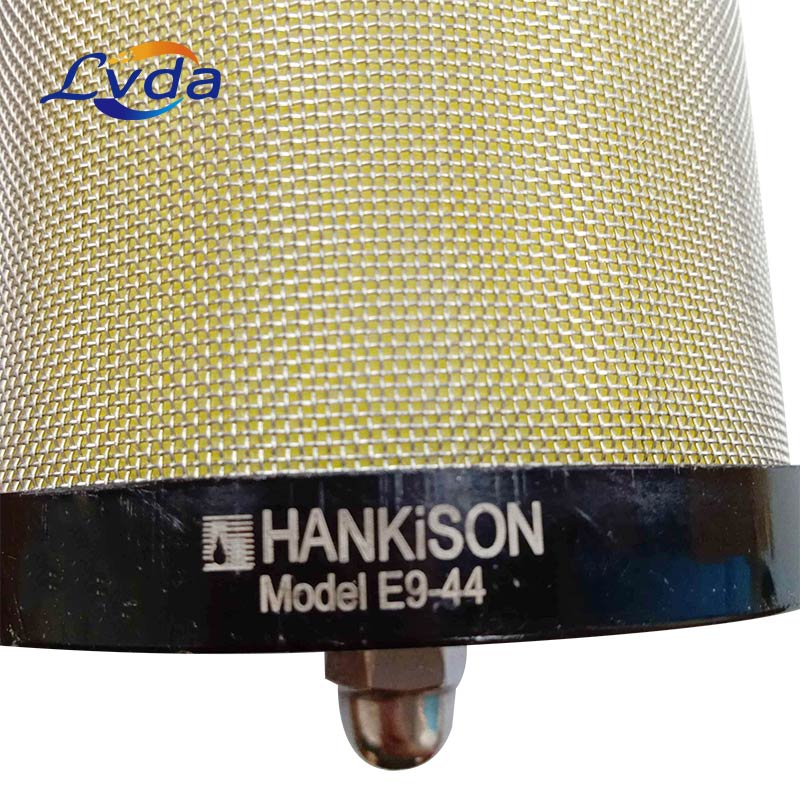

Hankison precision filter element is the core component of compressed air treatment. The precision filter element made of stainless steel support and imported glass fiber can intercept impurities and tiny oil droplets above 0.01 microns in the compressed air. The sponge wrapped on the outside can effectively prevent the intercepted oil droplets from being taken away, thereby improving the cleanliness of the compressed air and controlling the oil content of the compressed air below 0.01ppm.
Product features
1. High porosity, good air permeability, low resistance and low pressure difference;
2. After forming into a folded shape, the filtering area is large and the dirt holding capacity is large;
3. Thickened material, high-precision sponge, high temperature resistance, corrosion resistance, suitable for high viscous liquid filtration, long service life;
4. Good regeneration performance, can be used repeatedly after chemical cleaning, high temperature and ultrasonic cleaning;
5. All stainless steel structure, wide chemical compatibility;
6. Built-in high-quality sealing ring, good sealing performance;
7. Industrial casting strictly controls the production details to control the error and control the error within an acceptable range.
Product parameters
| Brand | Hankison precision filter element (replacement) |

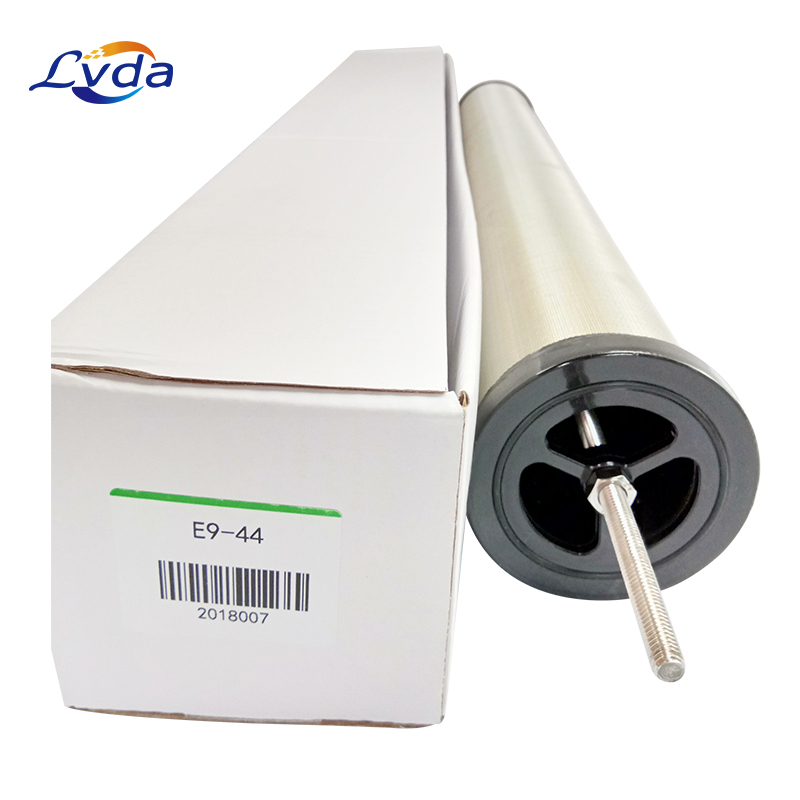

| Model | E9-44 |
| Applicable objects | air, water, oil |
| Applicable object properties | low temperature materials |
| Scope of application | dryer，suction dryer |
| Working temperature | 0-80 (℃) |
| Inlet and outlet diameter | 83 (mm) |
| Use temperature | 0-80°C |
Flow NM3/min | E1 | E3 | E5 | E7 | E9 | Precision(μm) | Residual oil (ppm) |
| 0.57 | E1-12 | E3-12 | E5-12 | E7-12 | E9-12 | E1:0.01 | 0.001 |
| 1 | E1-16 | E3-16 | E5-16 | E7-16 | E9-16 | E3:0.01 | 0.001 |
| 1.72 | E1-20 | E3-20 | E5-20 | E7-20 | E9-20 | E5:0.01 | 0.01 |
| 2.9 | E1-24 | E3-24 | E5-24 | E7-24 | E9-24 | E7:1 | 1 |
| 4.9 | E1-28 | E3-28 | E5-28 | E7-28 | E9-28 | E9:3 | 5 |
| 7.2 | E1-32 | E3-32 | E5-32 | E7-32 | E9-32 |
|
|
| 11 | E1-36 | E3-36 | E5-36 | E7-36 | E9-36 |
|
|
| 14 | E1-40 | E3-40 | E5-40 | E7-40 | E9-40 |
|
|
| 18 | E1-44 | E3-44 | E5-44 | E7-44 | E9-44 |
|
|
Product application
1. Metallurgy: It is used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.
2. Petrochemical: used for separation and recovery of finished products and intermediate products in the process of oil refining and chemical production, liquid purification, purification of magnetic tapes, optical discs and photographic films in manufacturing, oil field well injection water and natural gas for particle removal and filtration.
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
9. Paper mill
