Air dryer filter element

Product Details

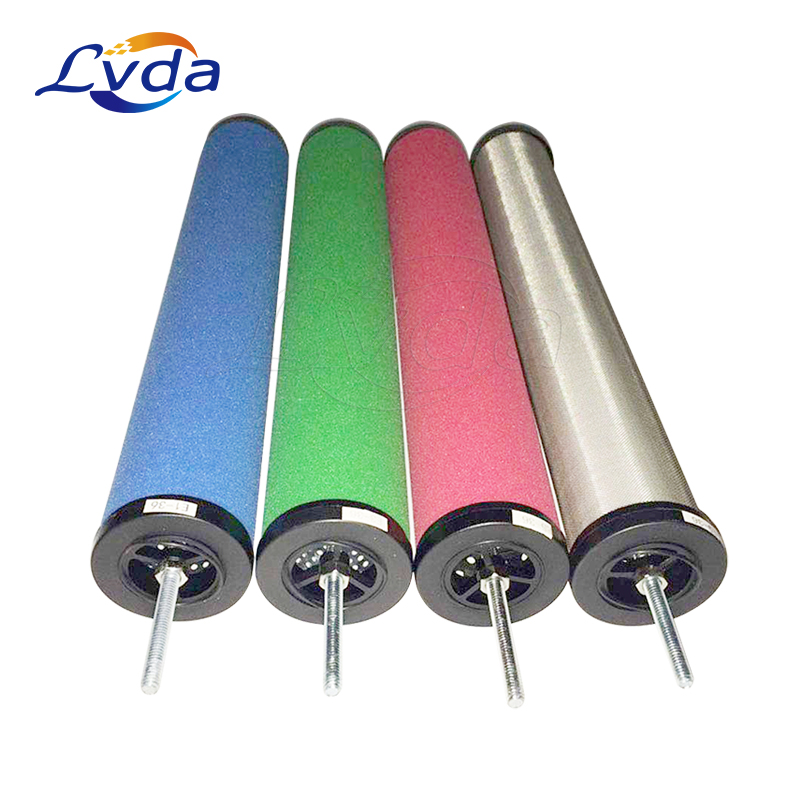

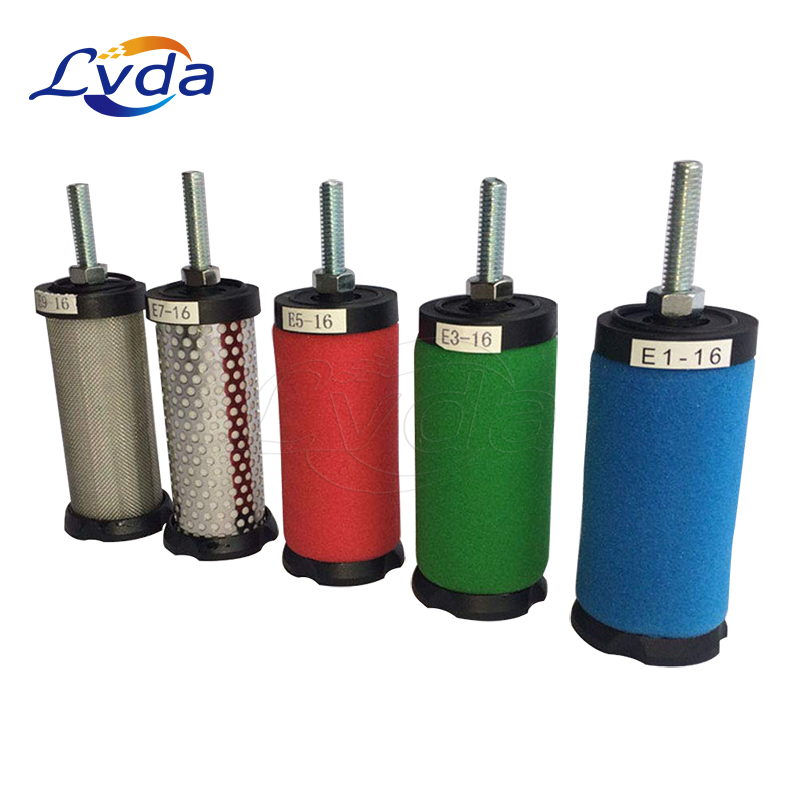

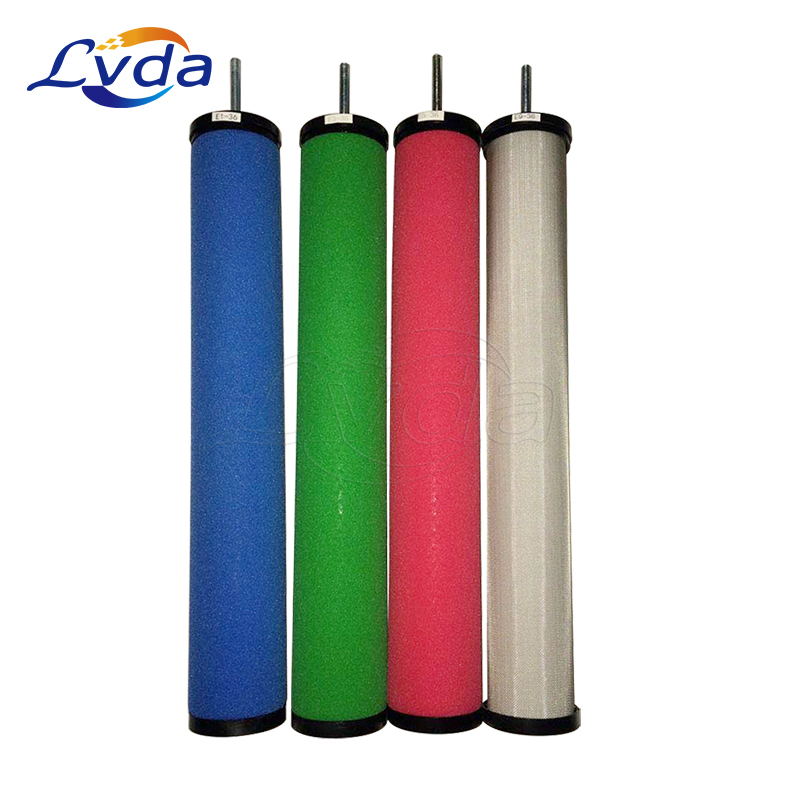

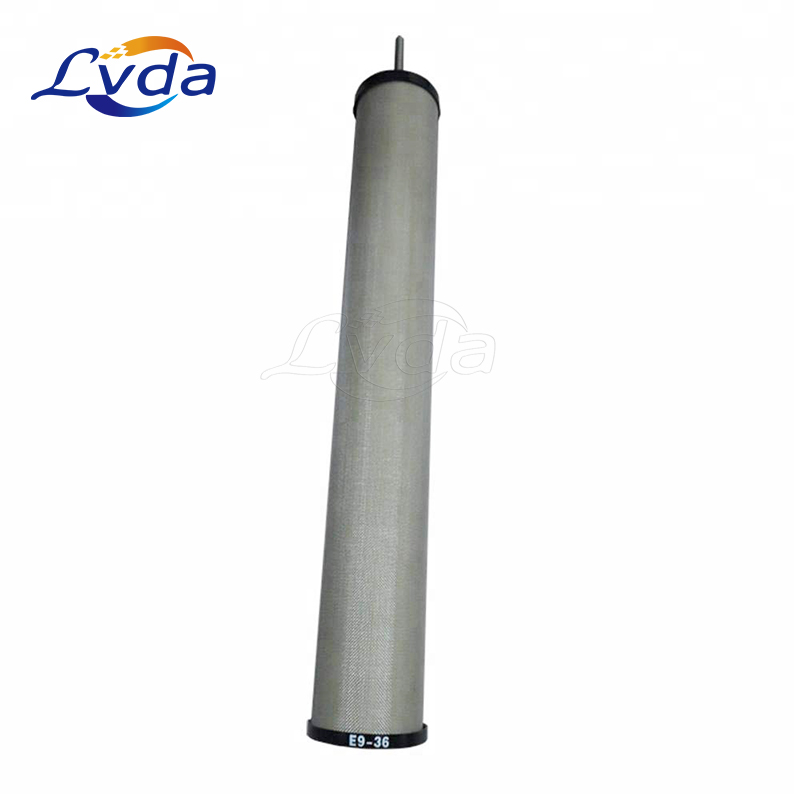

Replacement E9 7 5 3 1-12 16 20 24 28 32 36 40 44 48 for Hankison Compressed Air Dryer Filter Element Kit (E1,-12)

Main pipe filters are used to protect the entire system before the air compressor, the rear cooler, or the freeze dryer and other filters. A large number of liquid and more than 3 microns of solid particles can be filtered out to achieve the minimum residual oil content of only 5PPMW/W.

Air piping filters are removed from the equipment, machinery, motors, cylinders, and a class of ultra high efficiency oil removal filters before or after an adsorption dryer to remove moisture and particles. Can filter out small to 1 micron liquid and solid particles, to achieve the minimum residual oil content is only 0.5PPMW/W

Ultra high efficiency oil removal filter is usually used upstream of an adsorption dryer or a refrigeration dryer to ensure that the air used in the system is completely oil-free. Can filter out small to 0.01 micron liquid and solid particles, to achieve the minimum residual oil content is only 0.01PPMW/W, equipped with air pipe filters in the upstream to protect P.

Product parameters

Replacement cycle: 4000 hours after the air compressor is turned on

Accuracy: 3µm, 1µm, 0.01µm.

Initial differential pressure: 0.02Mpa

Replacement differential pressure: 0.07Mpa

Maximum withstand voltage: 1.6Mpa

Temperature resistance: 85°C

Product features

Direct Replace Hankison & Product Compatibility 100%

High Quality Raw Materials,Cost-Effective,Rrduce maintenance Cost.

Ensure To Meet Original Manufacturing Standard.

More Than 8000 Hours & Filtration Efficiency of 99%

Ensure To Meet Original Manufacturing Standard,Better Separation & Better Air

Producgt application

1. Provide oil-free compressed air for the use of oil-based air compressors such as precision instruments, paint spraying, food and drug packaging and electronic manufacturing industries.

2. Pre or post filter.
