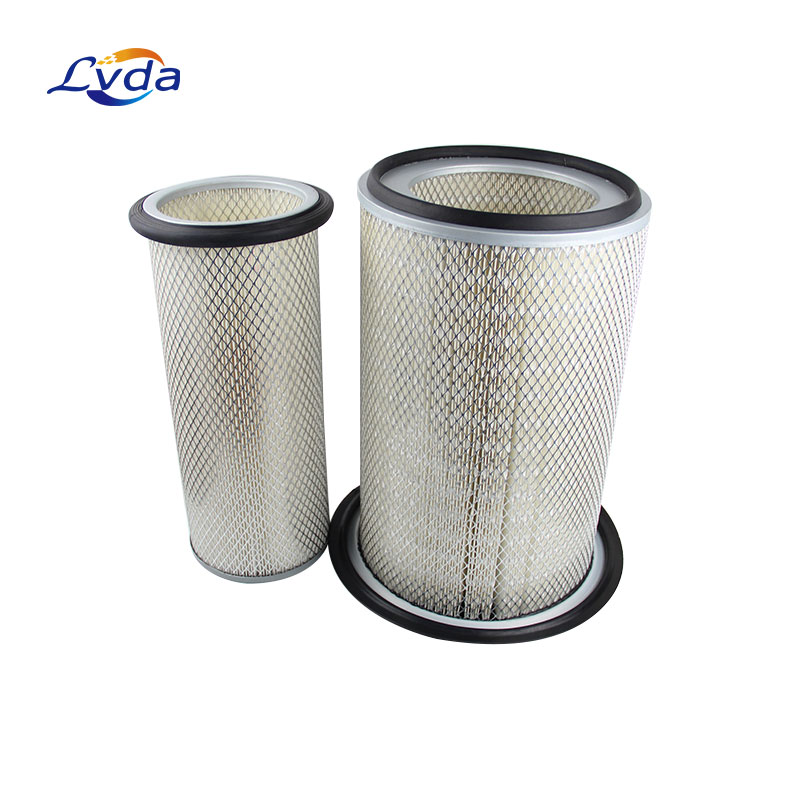

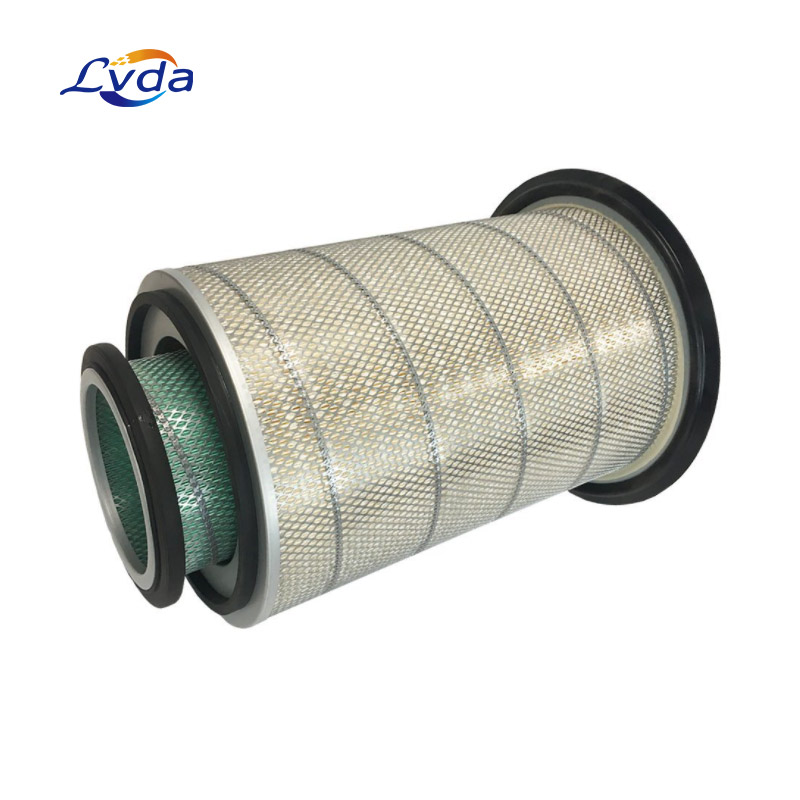

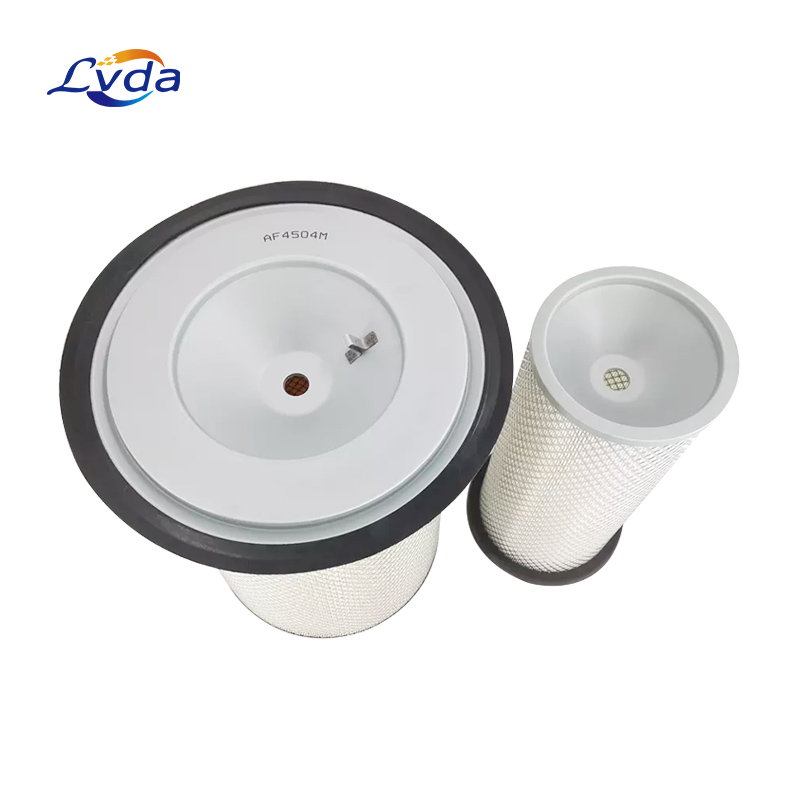

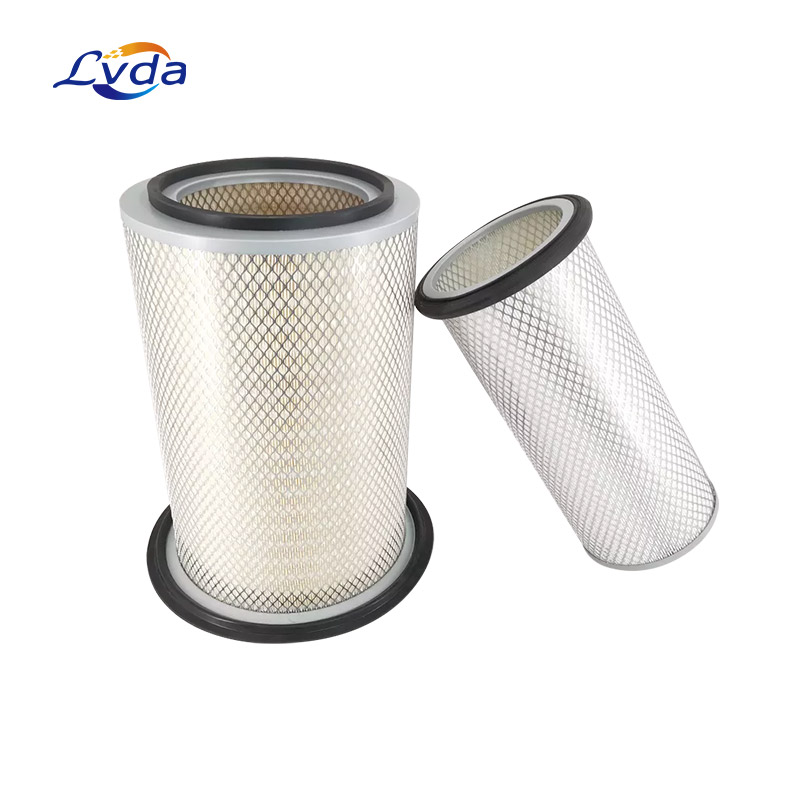

AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504  -KOMATSU-REPLACEMENT AF1791 -  - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)
AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504  -KOMATSU-REPLACEMENT AF1791 -  - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)
AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504  -KOMATSU-REPLACEMENT AF1791 -  - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)
AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504  -KOMATSU-REPLACEMENT AF1791 -  - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)
AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504  -KOMATSU-REPLACEMENT AF1791 -  - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)

AFTERMARKET-diesel engine parts Fleet guard Air filter AF4504 -KOMATSU-REPLACEMENT AF1791 - - FILTER SUITABLE 9Y6829BQ (Replacement For Spare Parts)

Replacement for Fleetguard filters

Model Number: AF4504 + AF1791

Media Material : Color fiber filter paper

Dust holding Capacity : usually 5-15kg

Full life filtration Effiencey : 99.7%-99.9%

Original resistance : ≤2.5kpa

Alarm Pressure : 6-6.5kpa

Get Quotation

Product Details

The air filter filters all kinds of impurities in the air to ensure that clean air enters the engine, so that combustion is more complete and the air system is smooth. High quality air filter is an important part to ensure the normal operation of the engine. LVDA Company provides various high-quality metal air filters, plastic air filters, square air filters, air filter cartridges and accessories, which are widely used in various commercial vehicles, passenger vehicles, engineering machinery, mining machinery, generator sets and other fields. LVDA Company adopts high-quality raw materials, advanced technology and elaborate design to meet the strict requirements of various customers for air filters. It can also develop and design according to customer requirements.


Product features

1.High quality imported filter material

Adopt us hv, south korea alhstrom imported filter paper,

The filtration accuracy is improved.

Large storage,

More durable and more effective protection of the engine.

2.High quality pu glue

The injection molding machine needs high-quauty

ab material, can not mix other impurities, after

foaming, toughness, wear resistance, good brightness,

so that the filter is sealed and dust is prevented from

entering the engine.

3.Abs material shell and iron shell

Abs resin is one of the five major synthetic resins,

it has excellent impact resistance, heat resistance,

low temperature resistance, chemical resistance

and electrical properties, stable product size and

good surface gloss.



Product parameters


Fleetguard  Part no.

AF4504,AF1791

Part  type

air  filter

Main  air filter Size

ID1   Φ  196.3MM

ID2   Φ  23.7MM

OD1   Φ 306.9MM

OD2   Φ 332.7MM

Overall  Height  457MM

Safety  filter size

ID1  Φ 159MM

ID2  Φ 17MM

OD1  Φ 209MM

OD2  Φ 185.6MM

Overall  Height 449MM

Media  Material

Color  fiber filter paper

Original  resistance

≤2.5kpa

Alarm  Pressure

6-6.5kpa

Original  filtration effiency

≥99.5%

Full  life filtration Effiencey

99.7%-99.9%

Dust  holding Capacity

usually  5-15kg

Warranty

20,000  kms-30,000 kms

Engine/truck  Application

diesel  Engine, trucks

OEM  No.

6001814400,  6127817413



Product application

1.Power plant

2.Steel mill

3.Subway engineering

4.Chemical factory

5.Ship

6.Paper mill
