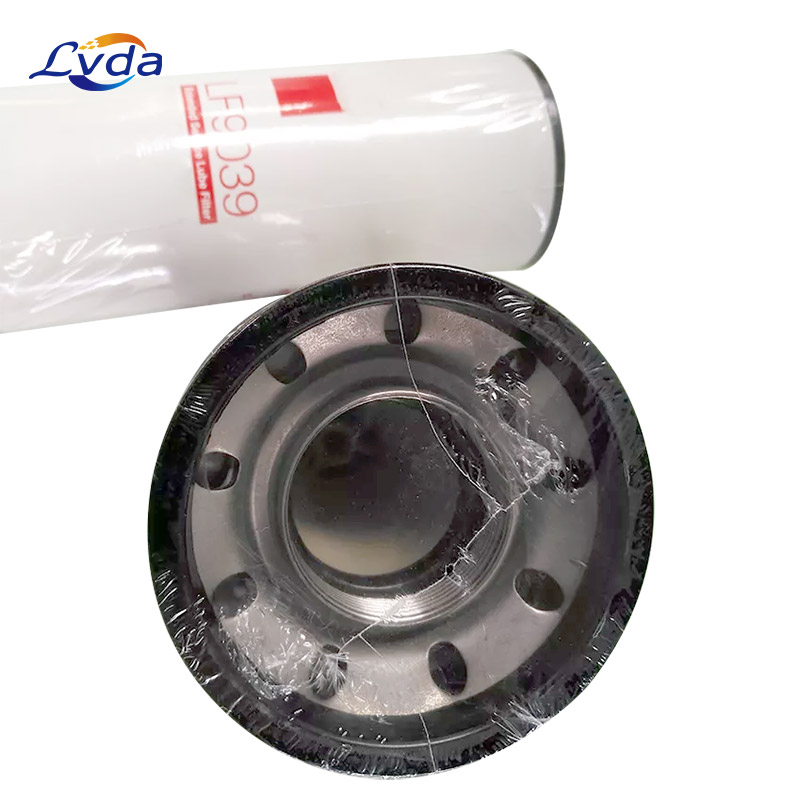

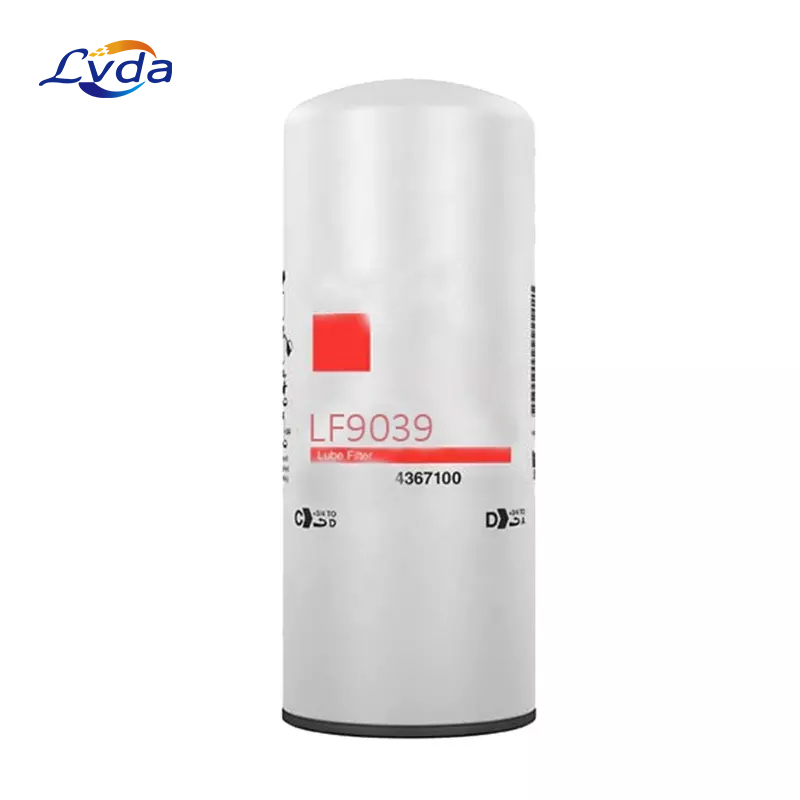

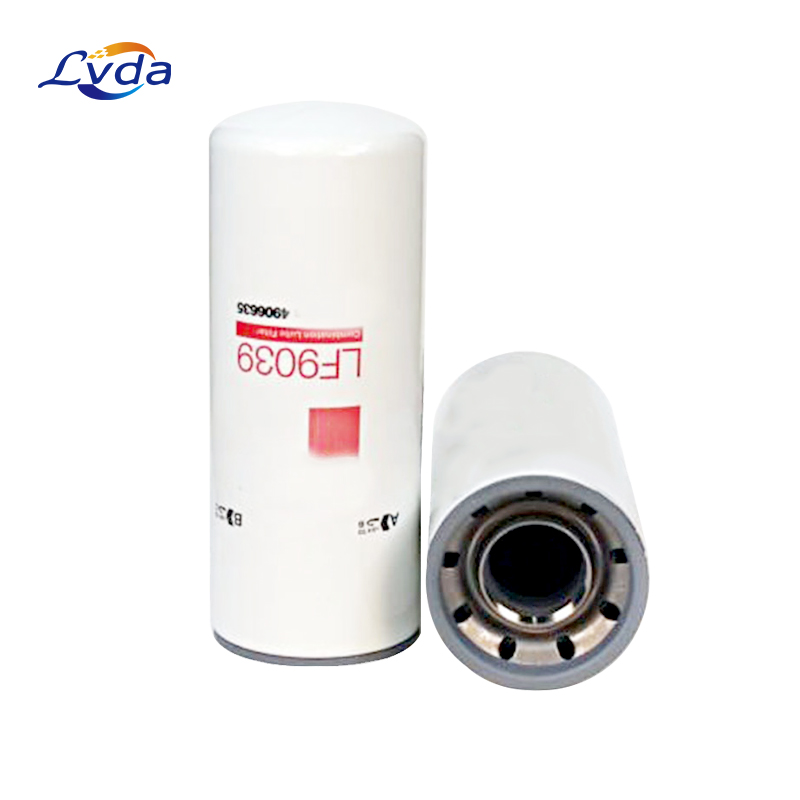

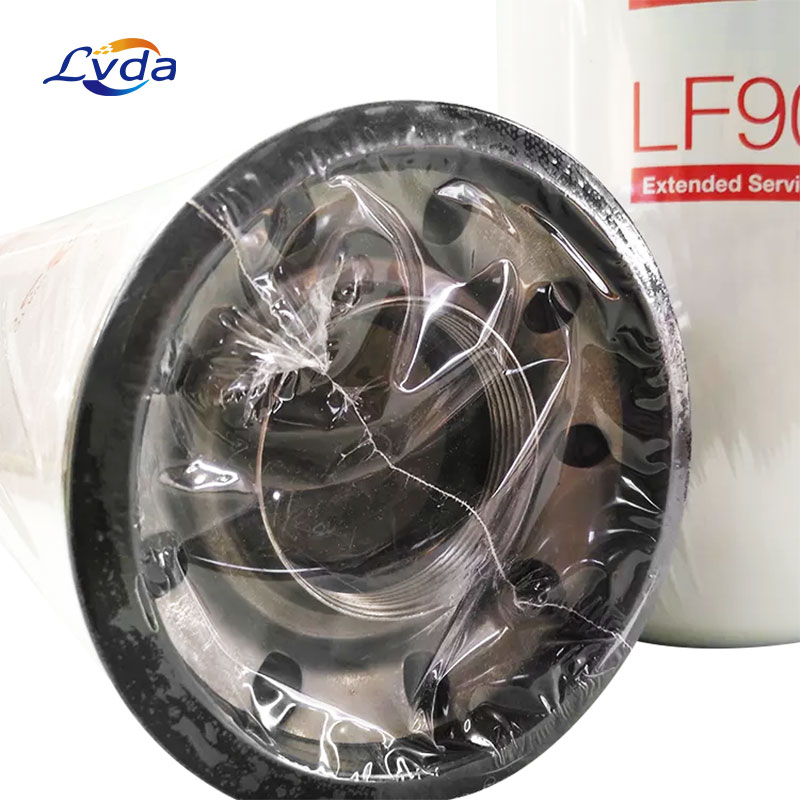

LF9039 Fleetguard Lube Oil Filter for Cummins Signature & ISM ISC ISL ISLe5 Replacement

Product Details

Fleetguard lube filters incorporate superior filtration techniques to target the root of wear-causing particulate, namely soot. Soot is generated by the combustion process and forms sludge in the oil. Lube oil is the life-blood of an engine. It is essential for reducing friction, cooling engine components and carrying wear material and foreign debris to the filter. If contamination generated by the engine is not filtered out, abrasive material will build up and rapidly wear out the moving parts of the engine.

Lube oil is the life-blood of an engine. It is essential for reducing friction, cooling engine components and carrying wear material and foreign debris to the filter. If contamination generated by the engine is not filtered out, abrasive material will build up and rapidly wear out the moving parts of the engine.

The Oil Filter LF9039 is equivalent 3401544 AT193242 LF9039 2910965 BD7309 ELF7300 6742-01-4540,Applied to Cummins C Gas Plus, C8.3, ISC, ISC, ISC8.3, ISL, ISL, ISLG, M11 Plus, M11 Plus, N14+, N14+, QSC, QSC8.3, QSC8.3, QSK19, QSL, QSL, QSL9, QSL9

Oil Filter LF9039 Cross Reference:

Wix 51748XD, 57500

Hengst H300W07

R22177737

JCB 2/910965

John Deere AT193242, PMLF9009

Komatsu 6742-01-4540, CULF9009

Caterpillar 3964604

Cummins 3401544, 4906635,TECXLF75000, XLF75000

Donaldson ELF7300

Fleetguard LF9009

Agco 72516560

Baldwin BD7309

Sakura C-5707

Case IHC 366700A1, 441703A1, 8900126397, 907101T1

Dongfeng JLX350C, JLX-350C

Fleetrite LFR89009

Fram HPH11000FP, HPH9500

Kralinator D330

Luberfiner LFP3000XL

Manitowoc 4136530, A104130

McCormick 707154A1

Napa 1748XD, 7500

New Holland 73188091, 76194691

Purolator Facet L56019

SF Schupp SP4692

Sisu 1216400561

Sure SFO0009

Terex 4013389001, 6002338

Woodgate WGL9199

Product features

1.Thicken the skeleton

The oil filter element with thicker frame also requires pressure filtration,

but the flow direction of the filter medium is exactly the opposite of that of the inner bone refueling filter element.

It is the working performance from theinside to the outside. The outer frame is under pressure during operation.

2.

Strictly select materials

The filter element is made of high-quality glass fiber material, which

has good filtering effect and longservice life. The filter material plays a major filtering role.

3.Filter material

The filter layer adopts a multi-pleated folding processto form a complete filter element, with no leakage and no media shedding. After being folded, the filter area is large and the dirt holding capacity is large.

4.Metal end cap

Spiral stamping end caps, machine tool end caps, staintess steel end caps, provide an interface to the filter, which is the end cap, filter material, and the skeleton connection tie, which are connected with the seal to play a sealing role.

Product parameters

Product application

1.Power plant

2.Steel mill

3.Subway engineering

4.Chemical factory

5.Ship

6.Paper mill
