Product Details

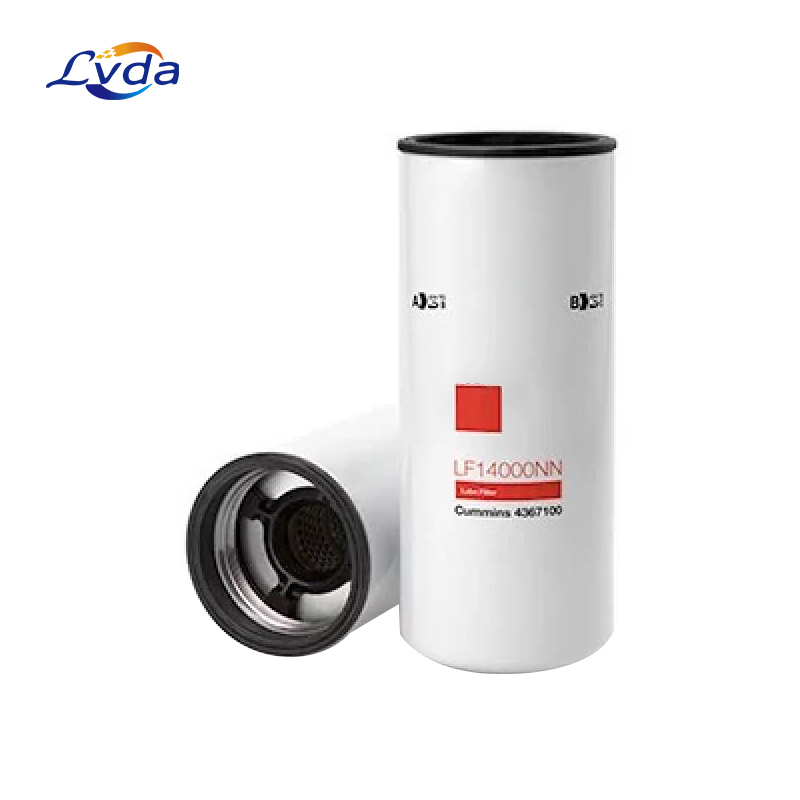

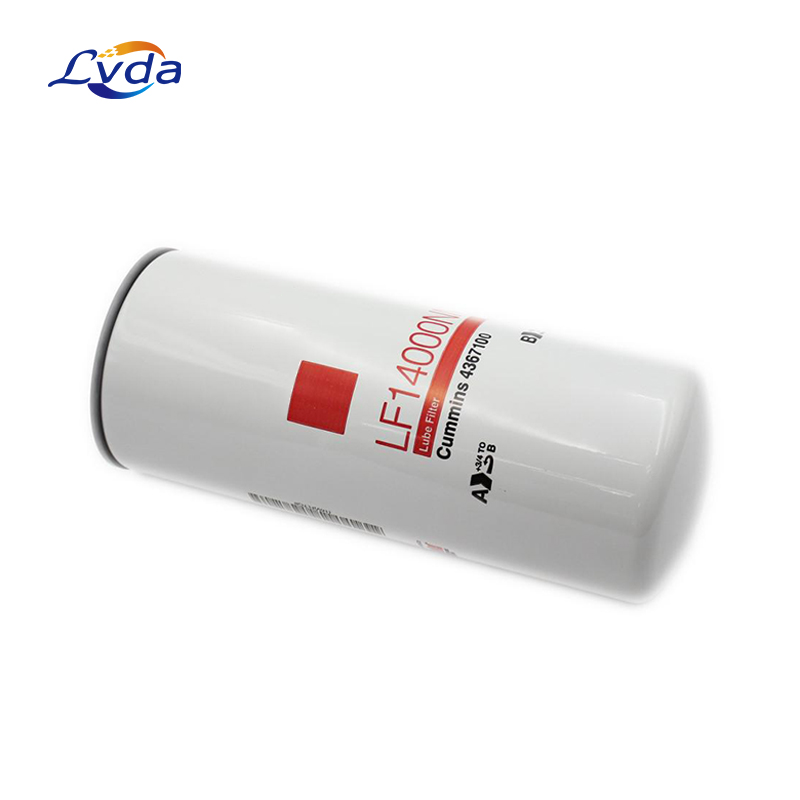

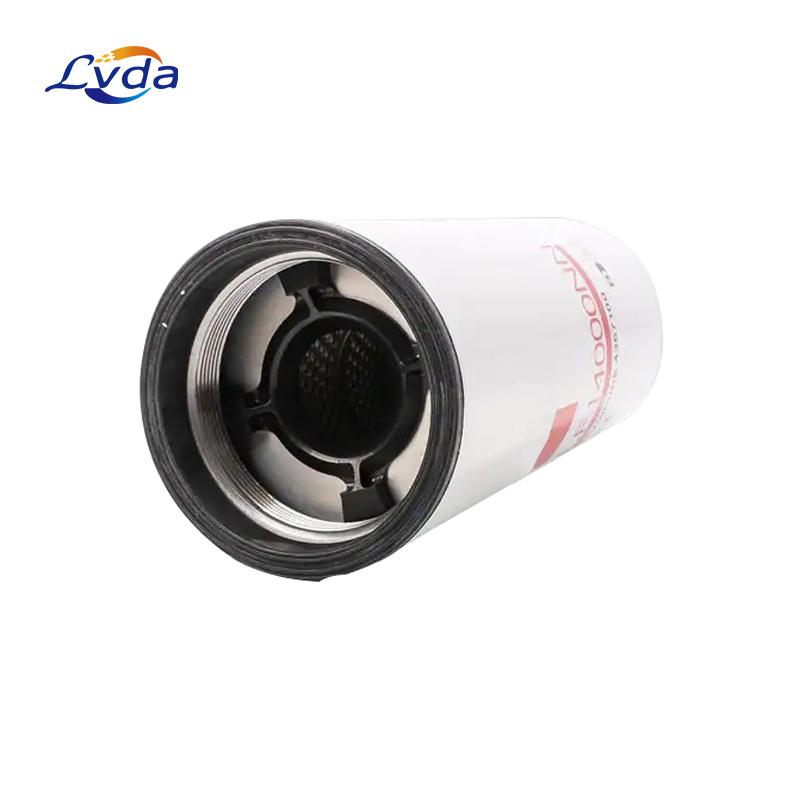

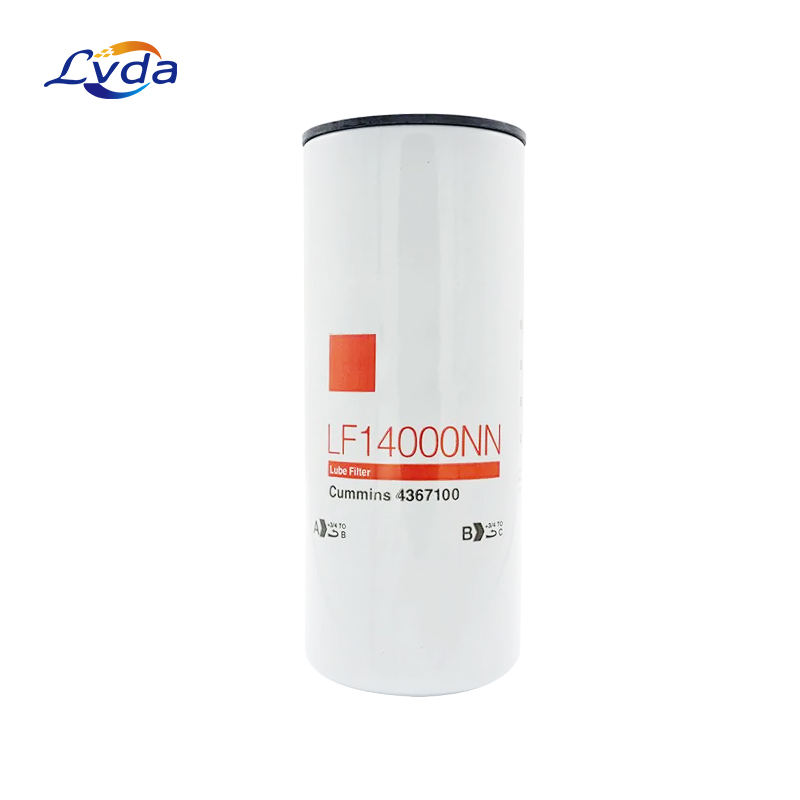

The LF14000NN is equivalent to Cummins 4367100, Baldwin BD7154, Donaldson P559000, Fleetguard LF9001.
The oil filter LF14000NN material is composite paper. the composite structure is designed to be spun bonded nonwoven fabric, melt blown nonwovens and wood pulp paper. Including optimization PBT melt blown nonwovens, has fast crystallization rate, heat resistance, oil resistance, chemical corrosion resistance of prominent characteristics.
The viscose layer of the composite filter material is mainly protective, and it will also increase accommodate the dust . The melt layer is to separate the oil and water, increase accommodate the dust and improve the filtration precision.Wood pulp paper support, meet the physical performance index and pleating requirements, also determine the final filtering precision.
The Fleetguard LF14000NN features technology features 2- in-1 media technology to optimize performance oil filtration in real world conditions.
Clean oil is the key to less engine strain and the highest level of fuel-saving when compared to any lube filter on the market.
This new oil filter was designed to meet every changing engine design and filtration specification required in today's diesel engines. This new Cummins Filtration LF14000NN spin-on oil filter now replaces these earlier model oil filters.
The Fleetguard LF14000NN Lubrication Filter applications :
●Cummins X15 diesel engines
●Cummins ISX15 diesel engines were built after 01/01/10.
●Cummins ISX12 diesel engines.
●Cummins ISX12 natural gas engines.
●Cummins QST30 diesel engines
●Cummins QSM11 Diesel engines were built after 2007 .
●Cummins X15 diesel engines built for 2017 plus.
●Volvo VED13 diesel engines.
●Cummins ISM diesel engines
●Cummins QSX diesel engines
●Cummins M11 Engines
The F1eetguard LF14000NN 0i1 filter cross reference :
●Cummins 4367100
●FRL 42033721
Q88 BD7154
●U30 PH8691
●V52 LF9001
●V52 LF9080
The Fleetguard LF14000NN is the upgraded version of the Fleetguard LF9080 oil filter. This new and improved lubrication filter features two kinds of 100% synthetic patented for the most advanced oil flirtation available.
Product features
1.NanoNet filtration media removes and retains 98.7% of all particles as small as 4 microns.
2.100% NanoNet filtration media is a synthetic, multi- layer polymer design with a robust structure .
3.The oil Filter provides for maximum cont aminant-holding capacity over the course of the filter's service life.
4.The NanoNet media structure enables superior cold-flow ability .
5.The Fleetguard LF14000NN 0il Filter holds 11 to 24 grams more contaminants than any competitor's oil filter.
6.High cold-f1ow ability means less restriction and faster oil lubrication during cold start-ups, and lubricating and protecting
7.the vital engine components .
8.0il Filter efficiency, capacity, and cold-flow ability are all improved.
Product parameters
Efficiency 97.6% | 15 micron |
Outer Diameter | 118 mm (4.65 inch) |
Thread Size | M95 x 2.5 |
Length | 297 mm (11.69 inch) |
Gasket OD | 119 mm (4.69 inch) |
Gasket ID | 102 mm (4.02 inch) |
Efficiency Test Std | ISO 4548-12 |
Media Type | Synteq |
Collapse Burst | 10.3 bar (149 psi) |
Type | Full-Flow |
Style | Spin-On |
Attributes |
Overall Height | 294.69 mm (11.602 inch) |
Largest OD | 120.3 mm (4.736 inch) |
Gasket OD | 120.3 mm (4.736 inch) |
Thread Pitch | 2.5 mm (.098 inch) |
Thread Class | M95 x 2.5-7H |
Thread Diameter | 95 mm (3.74 inch) |
Thread Form | Metric |
BPV Setting | No |
Standpipe | No |
Notes | Nanonet |
Product application
1.Power plant
2.Steel mill
3.Subway engineering
4.Chemical factory
5.Ship
6.Paper mill
