Product Details
The filter paper developed with high -capacity gray volume high -efficiency rates and large flow volumes. The structure is that the high -strength structure center tube filter element is not easy to deform, and the use of metal clamps to make the seal between the front and tail fold more complete. More importantly, the high -intensity sealing glue makes the sealing effect between the end cover and the filter paper is good and does not leak.

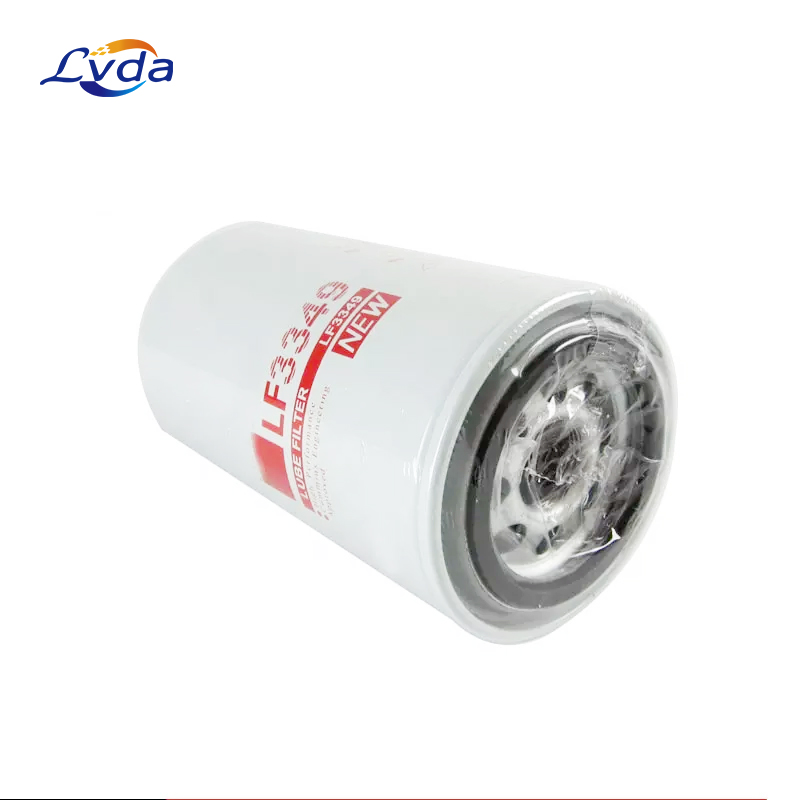

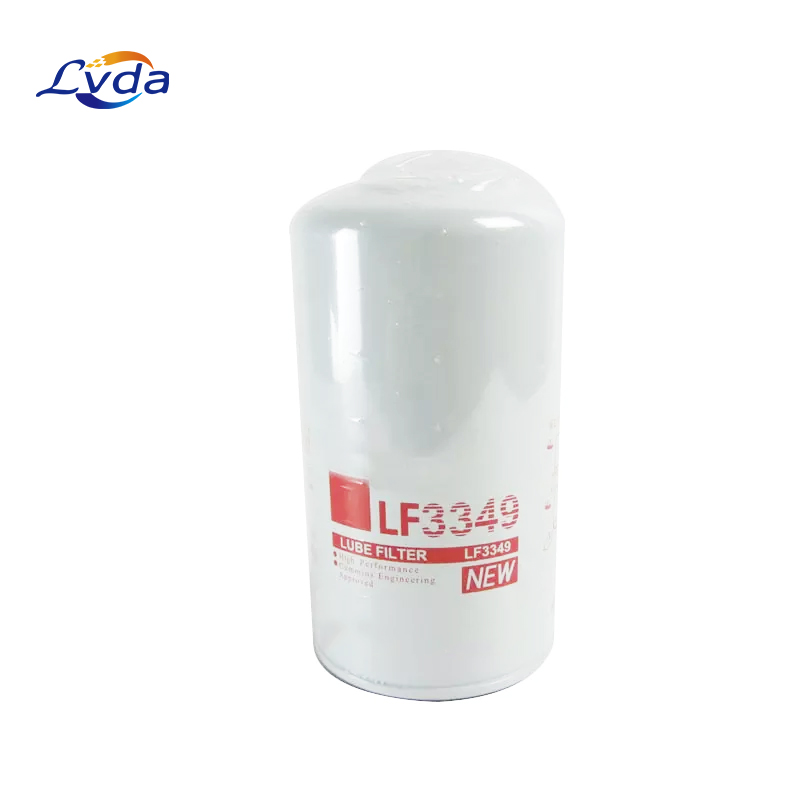

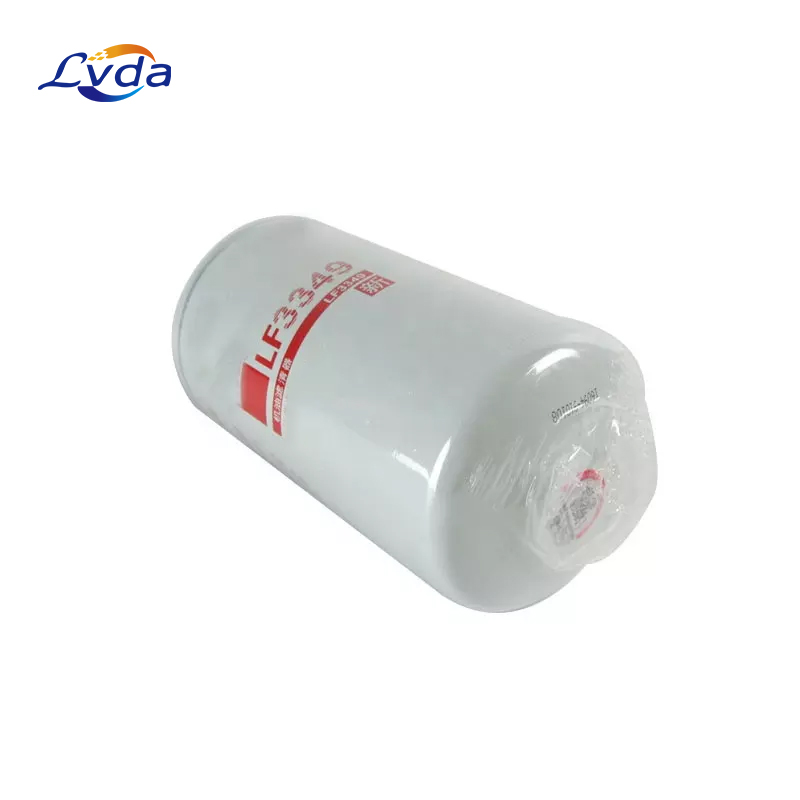

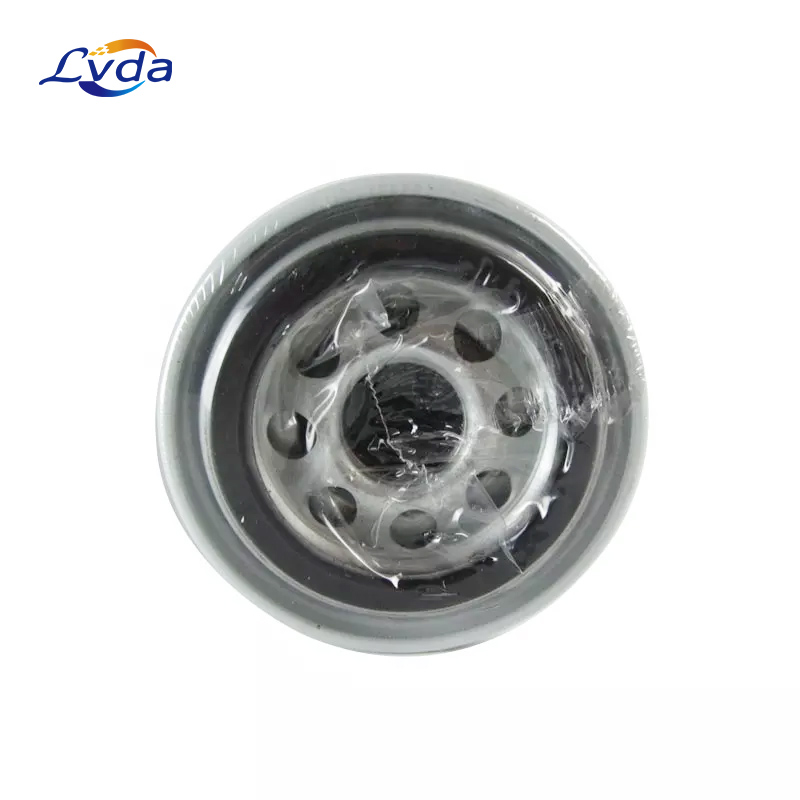

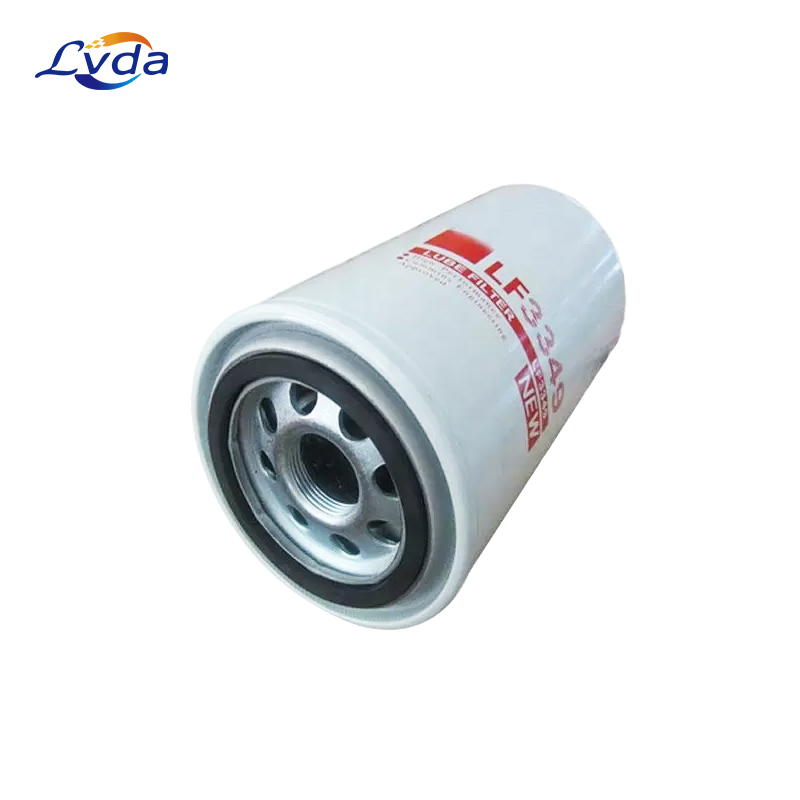

Replace Fleetguard LF3806 LF3349 Oil Filter
The Fleetguard Oil Filter LF3806 is equivalent to Fleetguard LF3349, Hyundai 11E1-70140, Donaldson P558615, Baldwin BT339, Case J903264, Consolidated Diesel 3903264, Cummins 3914395.
Product features
1.FILTER OUT FUEL DEBRIS
The debris generated in the production and trandportation of fuel oil is effectively filtered to prevend the corrosion and damage of the fuel system.
2.FILTER OUT DEBRIS IN THE AIR
Filter out wind, water and some suspended particles in the air to ensure the normal operation of the engine.
3.FILTER DEBRIS IN THE ENGINE
Block metal particles generated by high-speed operation of the engine and dust and sand in the process of adding oil,en-sure that the overall lubrication system is purified, reduce wear of parts, and extend the service life of the engine.
Product parameters
Outer Diameter | 93 mm (3.66 inch) |
Thread Size | 1-16 UN |
Length | 174 mm (6.85 inch) |
Gasket OD | 72 mm (2.83 inch) |
Gasket ID | 62 mm (2.44 inch) |
Efficiency 99% | 40 micron |
Media Type | Cellulose |
Collapse Burst | 6.9 bar (100 psi) |
Type | Full-Flow |
Style | Spin-On |
Primary Application | CUMMINS 3932217 |
Type: | Oil Filter |
Material: | Paper Core |
Structure: | Cartridge Filter |
Quality: | a Class |
Paper: | Iron+Cured Filter Paper |
Size | Height : 170 mm |
Outer Diameter : 93 mm |
Thread Size : 1-16 UN |
Working life | 30000KM |
Product application
1. Construction machinery industry: excavator, loader, roller, rotary drilling rig, paver
2. Power industry: generator sets, mobile power stations
3. Petrochemical industry: fuel dispensers, oil tankers, mobile fuel tankers
4. Mechanical processing equipment: various mechanical hydraulic system filters such as machining center, lathe, milling machine, bending machine, etc
5. Agricultural machinery: harvester, tractor, lawn mower
6. Transport vehicles: heavy trucks, mixer trucks, buses, sprinklers
7. Ships
