Product Details
The oil filter is used to remove the debris, glue and moisture in the oil, and to transfer the clean oil to the lubricating parts.In order to reduce the frictional resistance between the relative moving parts in the engine, the wear of the parts is reduced, and the oil is continuously transferred to the friction surface of various motor parts, forming lubricating film and lubrication.

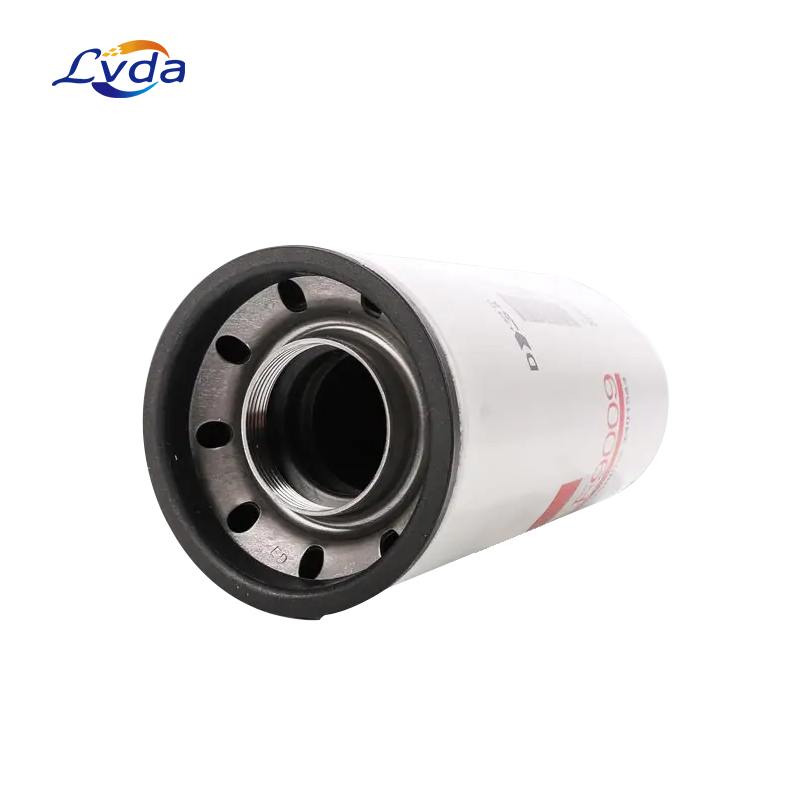

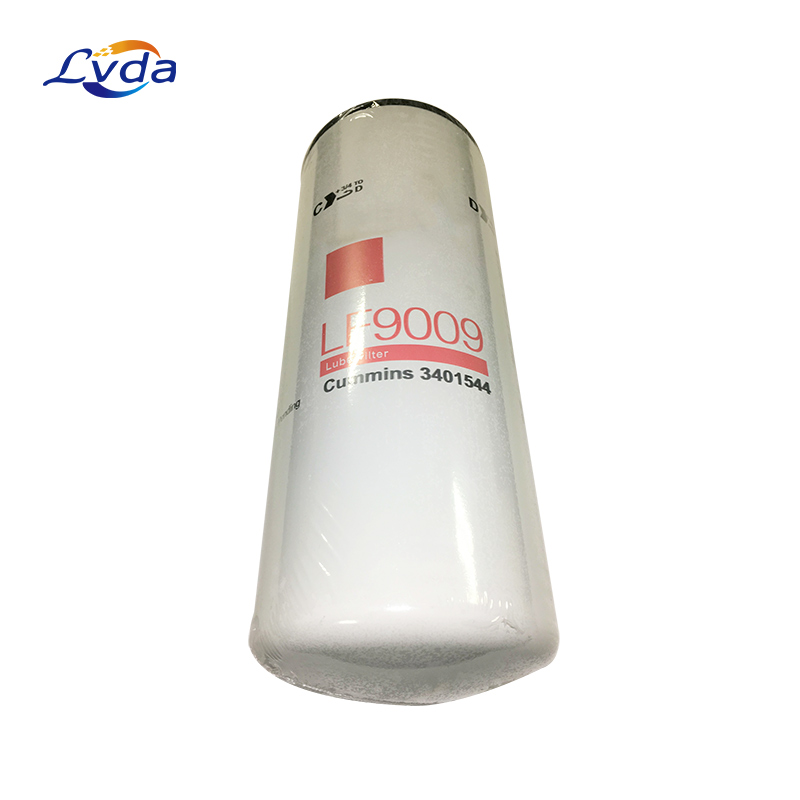

This LF9009 0il Filter is a Cummins replacement oil filter. This Cumins 0il Filter is a Venturim Combo Filter that provides high-efficiency filtration for extended oil service intervals while offering class-leading protection to the engine anccomponents. Constructed with a Full-Flow plus Stacked Disc design delivers optimum performance and reliable operation,maximizing equipment operating time and lowering costs.
The Oil Filter LF9009 can replace Cummins 3401544, John Deere AT193242, SISU 1216400561, Baldwin BD7309, Donaldson P553000.
Recommended Filter Change Intervals for the LF9009 0i1 Filter :
●Change Interval is 20, 000 Miles
●500 Hours
6 Months based on use and conditions.
Cross Reference:
Cummins 3401544
John Deere AT193242
SISU 1216400561
Baldwin BD7309
Donaldson P553000
Wix 57500
Komatsu 6742014540, 6742-01-4540
New Holland 73188091, 76194691
Fram HPH11000FP, HPH9500
Product features
1.The patented StrataPore" Media with gradient density.
●0il Filter provides high efficiency.
●The filter provides minimal cold start restriction.
2.Stratapore filter media offers a High capacity for oil contaminant retention .
3.This Fleetguard LF9009 Lube Filter comes with a gasket for the proper leak-free installation.
Product parameters
Part Number | LF9009 |
Parts Name | Oil Filter |
Brand | Fleetguard |
Overall Height | 301.76 mm |
Largest OD | 118.31 mm |
Seam OD | 118.87 mm |
Gasket OD | 118.87 mm |
Gasket ID | 101.85 mm |
Thread Size | 2 1/4-12 UNS-2B |
Outer Diameter | 118 mm (4.65 inch) |
Thread Size | 2 1/4-12 UN |
Length | 290 mm (11.42 inch) |
Gasket OD | 119 mm (4.69 inch) |
Gasket ID | 102 mm (4.02 inch) |
Efficiency 99% | 15 micron |
Efficiency Test Std | ISO 4548-12 |
Media Type | Synteq |
Collapse Burst | 10.3 bar (149 psi) |
Style | Spin-On |
Product application
1. Construction machinery industry: excavator, loader, roller, rotary drilling rig, paver
2. Power industry: generator sets, mobile power stations
3. Petrochemical industry: fuel dispensers, oil tankers, mobile fuel tankers
4. Mechanical processing equipment: various mechanical hydraulic system filters such as machining center, lathe, milling machine, bending machine, etc
5. Agricultural machinery: harvester, tractor, lawn mower
6. Transport vehicles: heavy trucks, mixer trucks, buses, sprinklers
7. Ships
