Product Details
Filters for car is a parts of engine,it is include oil filter,air filters,cabin filter and fuel filters.Our oil filter selection of high-quality cellulose filter paper, can ensure the oil clean for a long time.Fuel water separator filters provide additional ‘pre fuel filter’ protection for standard fuel filters in diesel delivery systems. The finer micron rated high efficiency filter provides additional protection for the injectors and fuel pump.

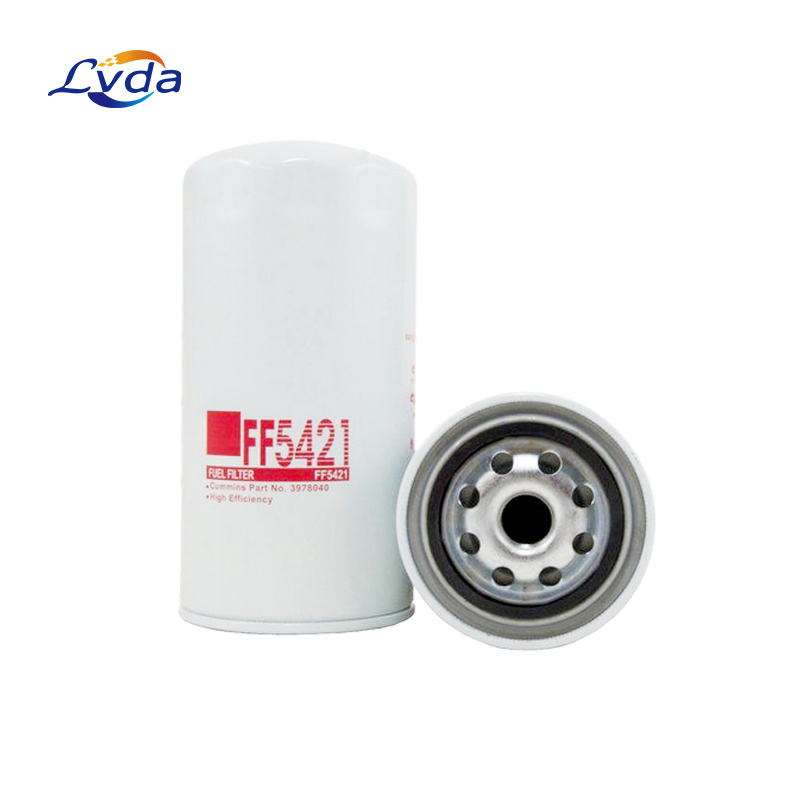

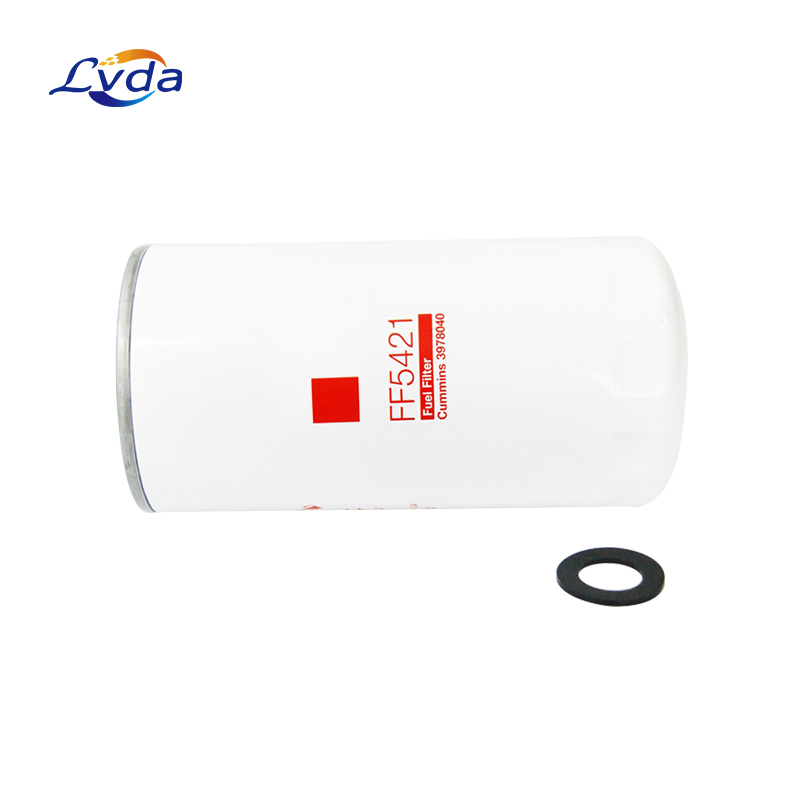

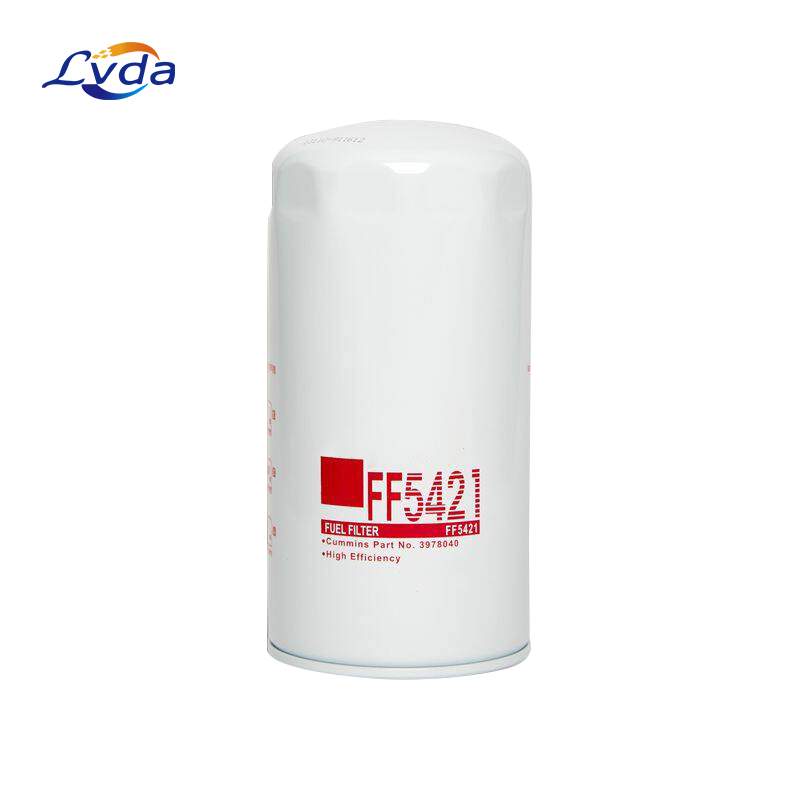

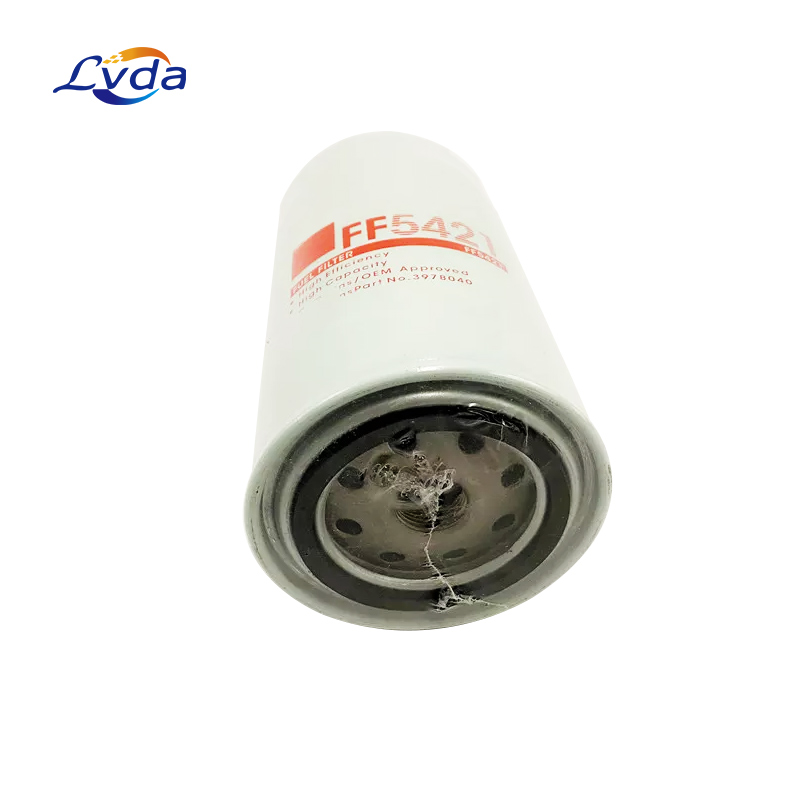

The Fleetguard Fuel Filter FF5421 is equivalent to Cummins 4897897,3978040, Fleetguard FF5612, Donaldson P550880, Baldwin BF7966.
Fuel Filter FF5421 Cross Reference:
Cummins 4897897,3978040
Fleetguard FF5612
Donaldson P550880
Baldwin BF7966
Product features
1.Thicken the skeleton
The oil filter element with thicker frame also requires pressure filtration,
but the flow direction of the filter medium is exactly the opposite of that of the inner bone refueling filter element.
It is the working performance from theinside to the outside. The outer frame is under pressure during operation.
2.
Strictly select materials
The filter element is made of high-quality glass fiber material, which
has good filtering effect and longservice life. The filter material plays a major filtering role.
3.Filter material
The filter layer adopts a multi-pleated folding processto form a complete filter element, with no leakage and no media shedding. After being folded, the filter area is large and the dirt holding capacity is large.
4.Metal end cap
Spiral stamping end caps, machine tool end caps, staintess steel end caps, provide an interface to the filter, which is the end cap, filter material, and the skeleton connection tie, which are connected with the seal to play a sealing role.
Product parameters
Part Number | FF5421 |
Parts Name | Fuel Filter |
Brand | Fleetguard |
Overall Height | 192.50 mm |
Outer Diameter | 118.4 mm (4.66 inch) |
Thread Size | 1 1/4-12 UN |
Length | 310.92 mm (12.24 inch) |
Gasket OD | 110 mm (4.33 inch) |
Gasket ID | 98 mm (3.86 inch) |
Efficiency 99% | 17 micron |
Efficiency Test Std | SAE J1985 |
Emulsified H2O Efficiency | 95.00 Percent |
Collapse Burst | 6.9 bar (100 psi) |
Type | Water Separator |
Style | Spin-On |
Media Type | Cellulose, Silicone |
Primary Application | CUMMINS 3309437 |
Product application
1.Power plant
2.Steel mill
3.Subway engineering
4.Chemical factory
5.Ship
6.Paper mill
