Product Details
Functions of Fuel water separator
The function of the oil-water separator is to filter out some impurities in the diesel.Remove the moisture in the diesel. The oil-water separator is composed of ahand-pressed diaphragm pump, a liquid level sensor, a float, a shell and a
cover. Diesel enters the separator through the oil inlet and flows out through theoil outlet.
NOTE: The FS1280 water separator filter is not recommended for Marine Application!

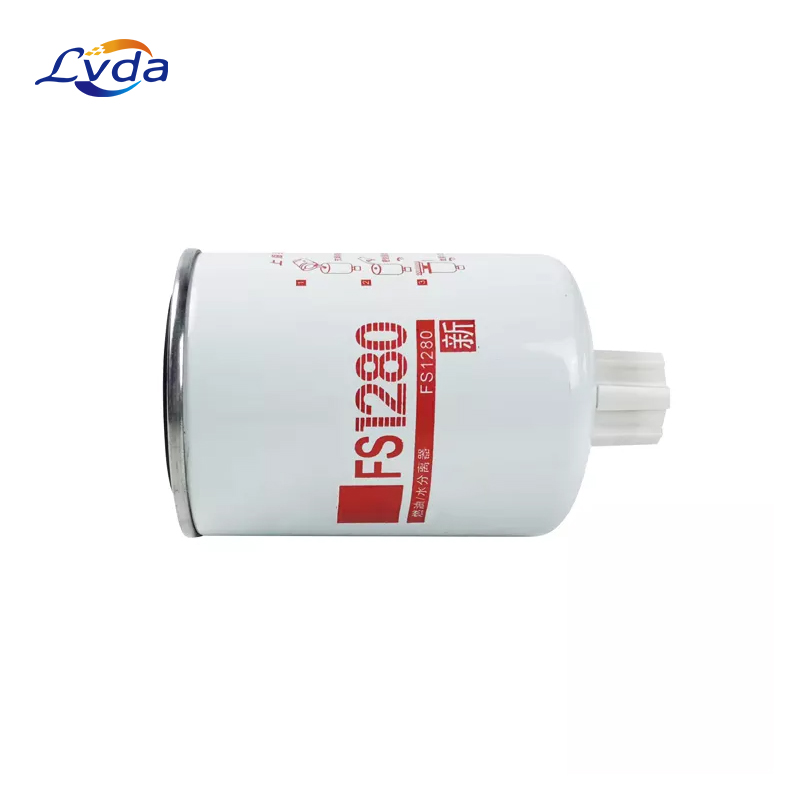

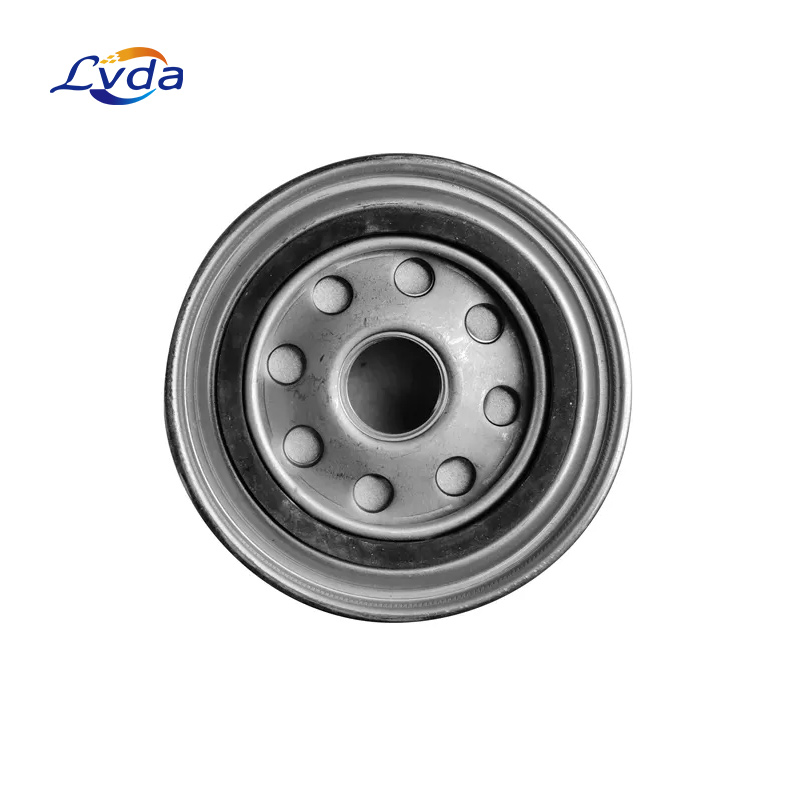

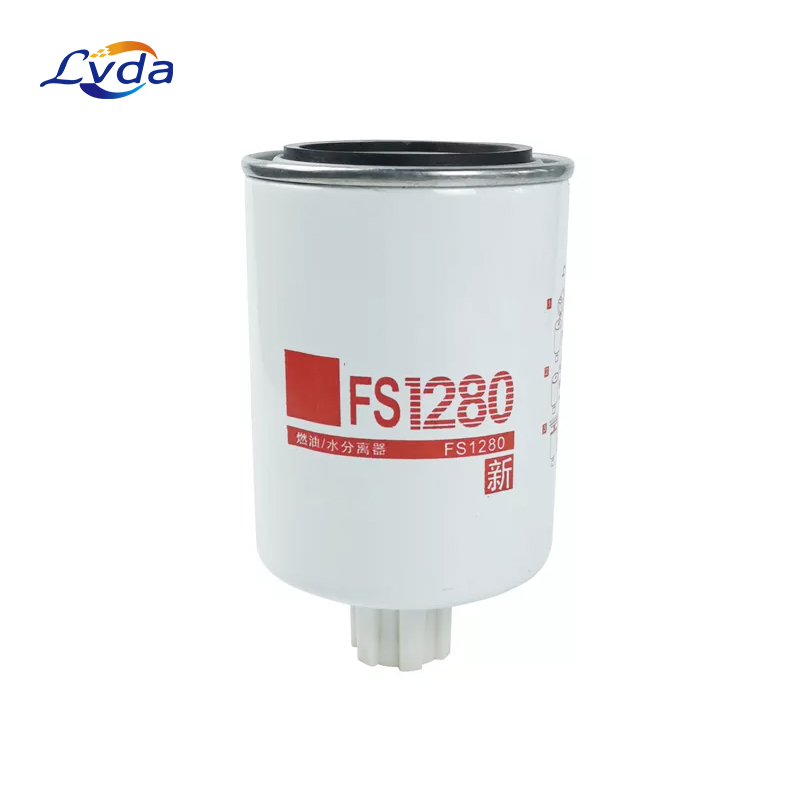

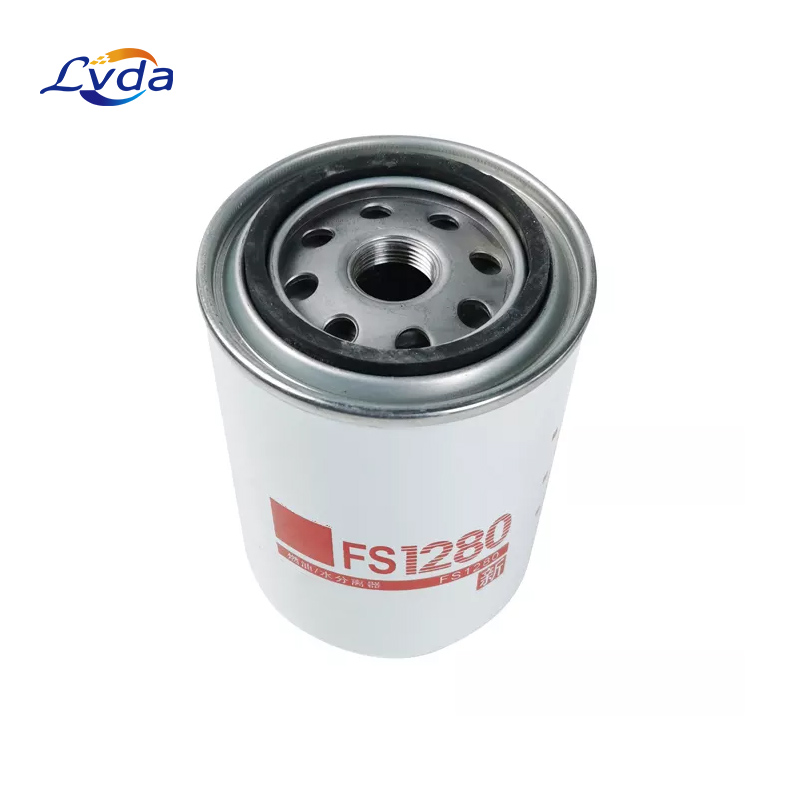

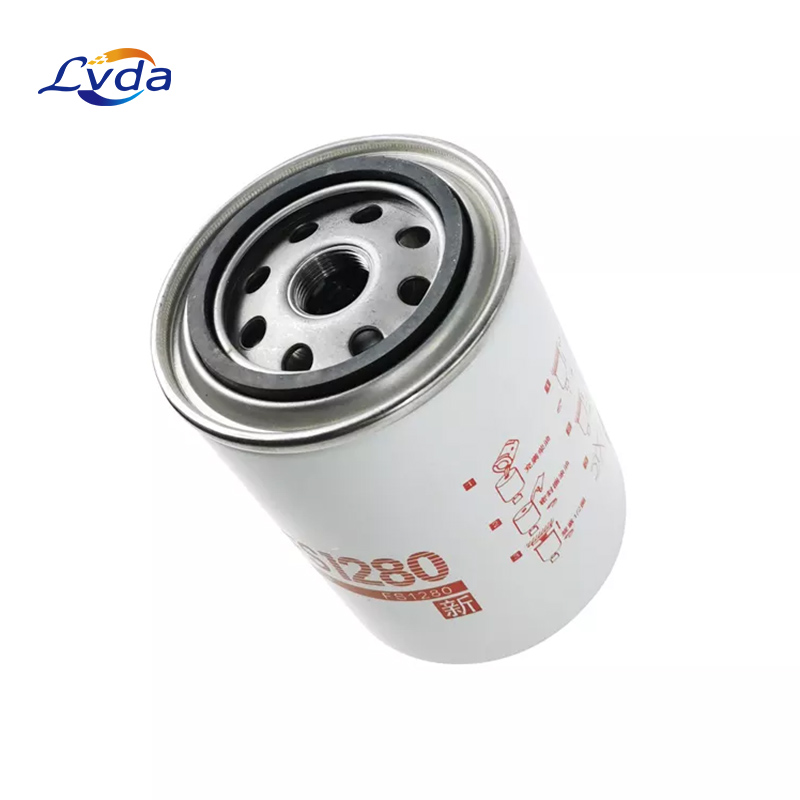

The water separator filter is a spin engine spin-on type filter that removes both free and coarse water down to a 10 Micron 1evel. The Fleetguard FS1280 Water Separator Filter meets today's high-pressure fuel systems requirements for entrained and emulsified water
separation that causes injector tips to wear out prematurely. Installation is simple and will be leak-free because replacement seals
are included with this Filter. This Water Separator is a direct OEM Cummins replacement filter.
KLM recommends regularly draining this fleetguard fue1 water separator filter to remove the water contained within this filter.
Periodically removing the water from this Fleetguard water separator filter will help to prevent freeze-ups in your vehicle fuel system during the winter months. KLM Performance recommends keeping a spare set of the Fleetguard Replacement Filters in your vehicleat all times.
FS1280 Water Separator Filter applications :
●Cummins 4BTA3.9C
●Cummins 4BT3.9C
●Cummins 4B3.9 0
●Cummins 4BTA3.9-G2
●Cummins 6BTA5.9
●Cummins 6BT5.9
●Cummins 6CTA8.3
●Cummins 8.3L
--
Fleetguard FS1280 Fue1 Water Separator Cross References :
●Agco 72501531
●CUMMINS 3890706
●CUMMINS 3903410
●CUMMINS 3930942
●DRESSTA 161623
●VOLVO 36846
PUROLATOR P551329
Product features
1.ROBUST & CORROSION-RESISTANT HOUSING
Deep- drawn steel shell is sturdy and durable, not easy to damage
2.ENSURE CONTINUOUS
OIL SUPPLY
Bypass valve and check valve design to ensure continuous oil supply
3.SEAL RING DESIGN
Multi-directional sealing ring ensures that the oil seal does not leak and can be quickly disassembled and assembled
Product parameters
product name | Fuel Filter |
Material | steel filter paper |
Filter level | High efficiency filtration |
Features | 1. High quality filter paper, excellent filter capacity, 98% filtering efficiency; |
2. High quality filter seal ring made by special synthetic rubber; |
3. Various kinds of different models oil filter for cars to world market. |
4. Easy and quick to install, with long service life. |
Filter particle | 0.3 micron are 99.99% |
Material | Oil filter paper |
Filter particle | 0.3 micron are 99.99% |
Part Number | FS1280 |
Parts Name | Fuel Water Separator |
Brand | Fleetguard |
Overall Height | 164.85 mm |
Largest OD | 93.73 mm |
Seam OD | 93.47 mm |
Gasket OD | 71.88 mm |
Gasket ID | 62.48 mm |
Thread Size | 13/16-18 UNS -2B |
Product application
1.Power plant
2.Steel mill
3.Subway engineering
4.Chemical factory
5.Paper mill
