Product Details

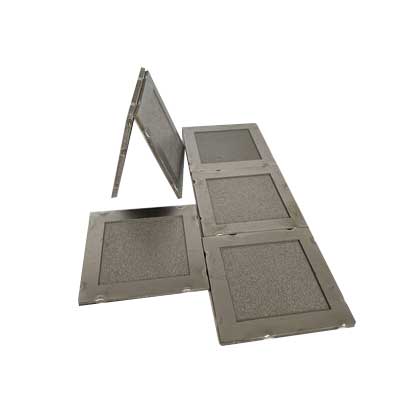

PEM gas diffusion layer sintered titanium plate is a microfiltration element
made from titanium TA1 and stainless steel 316L powder as raw materials, which
are sieved, formed, and sintered. High filtration accuracy, good breathability,
high mechanical strength, high material utilization rate, suitable for high
working temperatures and heat shock resistance. Widely used in pneumatic
components, chemical industry, environmental protection and other fields. We can
produce porous components of various shapes, structures, particle sizes, and
porosities according to user requirements. Therefore, powder sintered filter
materials have unique excellent performance due to their high-tech material
composition and special molding process:
High temperature resistance, normal use below 500 degrees Celsius.
High filtration accuracy, stable pores, effective removal of suspended solids
and particles, excellent filtration accuracy, and good purification effect.
Good breathability and low pressure loss. High porosity, uniform pore size,
low initial resistance, easy backwashing, online regeneration, easy cleaning,
strong regeneration ability, and long service life.
High mechanical strength, good rigidity, good plasticity, no need for
external skeleton support protection, simple installation and use, easy
maintenance, good assembly, and can be welded, bonded, and mechanically
processed.
Uniform pores are particularly suitable for situations with high uniformity
requirements such as fluid distribution and homogenization treatment.
Filtering accuracy: 1-70 μ M.
No particle shedding, no secondary contamination of the original
solution.
Good mechanical performance, low pressure difference, large flow rate,
capable of pressure filtration and suction filtration, with simple
operation.
Good corrosion resistance, can be stably used in environments such as nitric
acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric
acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide,
acetylene, water vapor, hydrogen, carbon dioxide gas, etc.
The molding process is good, and the overall length without welding can reach
1200 millimeters.
Application area
Powder sintered filter cartridges, with their unique performance, can be
widely used in the pharmaceutical industry, water treatment industry, food
industry, biotechnology, chemical industry, petrochemical industry,
metallurgical industry, and gas purification field. They are a new type of
filter material with broad development prospects.
Purpose
Impurity removal filtration, material decarbonization filtration, and
precision filtration in the production process of chemical raw materials.
Security filtration of ultrafiltration, RO, EDI systems for water
treatment.
Clarification and filtration of beverages, fruit juice, Baijiu, beer,
vegetable oil, mineral water, soy sauce and vinegar in food and beverage.
Decarbonization filtration and precision filtration of liquid products,
liquid raw materials, and pharmaceutical intermediates in the chemical industry,
filtration and recovery of ultrafine crystals and catalysts, precision
filtration after resin adsorption, and impurity removal filtration of system
thermal oil and materials, catalytic gas purification, etc.
Security filtration for reverse osmosis in fields such as oilfield
reinjection water filtration.
High temperature decarbonization and whitening filtration in the dye
industry.
Gas purification involves steam, compressed air, and catalyst filtration.
Media purification and flow limitation of pneumatic components, lubricating
oil, fuel and hydraulic pressure systems, compressed air oil removal
purification, crude oil sand removal filtration, nitrogen and hydrogen gas
filtration, pure oxygen filtration, bubble generator, gas distribution in
floating bed, etc
