Product Details
A self contained solution for high viscosity bulk oil handling, fluid transfer and reservoir or gearbox conditioning. Ideal for higher viscosity lube oil and highly contaminated fuel and hydraulic oil.
Built in versatility.
From cold weather to cold starts, the high viscosity filter cart is engineered to easily handle almost any job you can throw at it. Rugged construction including the heavy duty, oversized filter housing and cast iron gear pump with internal relief all come together so that you can be sure the high viscosity filter cart will tackle your application with ease.
Filtration starts with the filter.
The oversized coreless filter element in every high viscosity filter cart delivers lower ISO Codes over a long element lifespan to ensure low disposal impact, simultaneously reducing your environmental footprint and your bottom line. To top it off, select elements come standard with an integral zero-leak bypass so with every filter change you get a new bypass along with peace of mind.
Unmatched on the move.
Non-shredding wheels, optional off-road, heavy duty tires, and easy to maneuver cart design with ergonomic handle mean you get powerful filtration exactly when and where you need it.
Setting the new standard.
Sampling is no longer an option, it’s a necessity. That’s why every high viscosity filter cart comes standard with upstream and downstream sample ports located in the proper positions for best practice oil sampling. You’ll get consistently accurate readings and a first hand view at just how well your high viscosity filter cart is working.
With options to make your job easier.
Use the high viscosity filter cart to pump out your gearbox or to ease cold starts and get your system up to temperature faster with the optional complete filter bypass line. Add on the PM-1 Particle Monitor to see real time ISO Codes of your fluid and you’ll be amazed to watch how effective your high viscosity filter cart will be.
Completely customizable.
Tailor your high viscosity filter cart specifically to your application with options including pneumatic or explosion proof models, CE and CUL marks, and stainless steel construction for safety and compatibility with your existing systems. And if you’re nice, we’ll even let you trick it out with a custom paint job.
Technical parameter
| Model | AOP-VS-*25 -**/*** | A0P-VS-*40 -**/*** | AOP-VS-*50 -**/*** | A0P-VS-*63 -**/*** | A0P-VS-*100 -**/*** | AOP-VS-*160 -**/*** |
| Flow rateL/min) | 25 | 40 | 50 | 63 | 100 | 160 |
| Working pressure(MPa) |
|
| 1.0 |
|
|
|
| Initial pressure loss (Mpa) |
|
| ≤0.2 |
|
|
|
| Coarse filtration(μm) |
|
| 100 |
|
|
|
| Fine filtration accuracy(μm) |
|
| 3、5、10、20、40 |
|
|
|
| Pressure differentials |
|
| 0.2Mpa |
|
|
|
| Operating temperature(°C) |
|
| 5-80 |
|
|
|
| Recommended viscosity(cSt) |
|
| 10- 760 |
|
|
|
| Voltage(V) | 1.1 | 2.2 | 3.0 | 3.0 | 4.0 | 5.5 |
| Weight(kg) | 160 | 232 | 240 | 265 | 400 | 540 |
| Dimensions(mm) | 1080x600x980 | 1200x600x980 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 | 1500x740x1020 |
Note: *- filtration series, A: primary filtration, B: secondary filtration
**- is filter's rating,such as 03 is 3 microns.
***- heating module, Omission: no heating module, R: heating module
****- oil pump, Omission: gear pump, LG: screw pump
Features

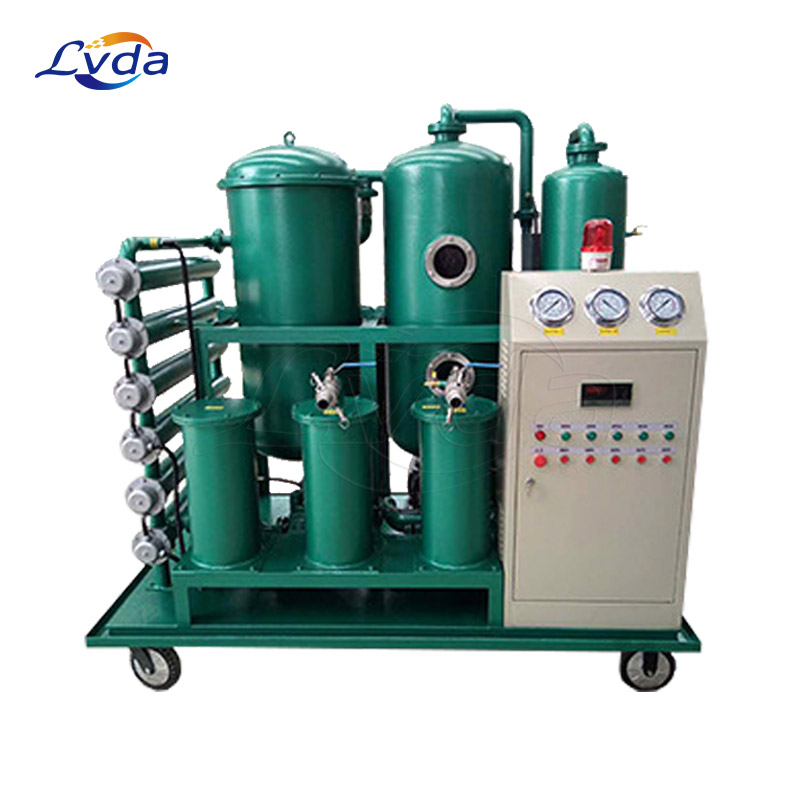

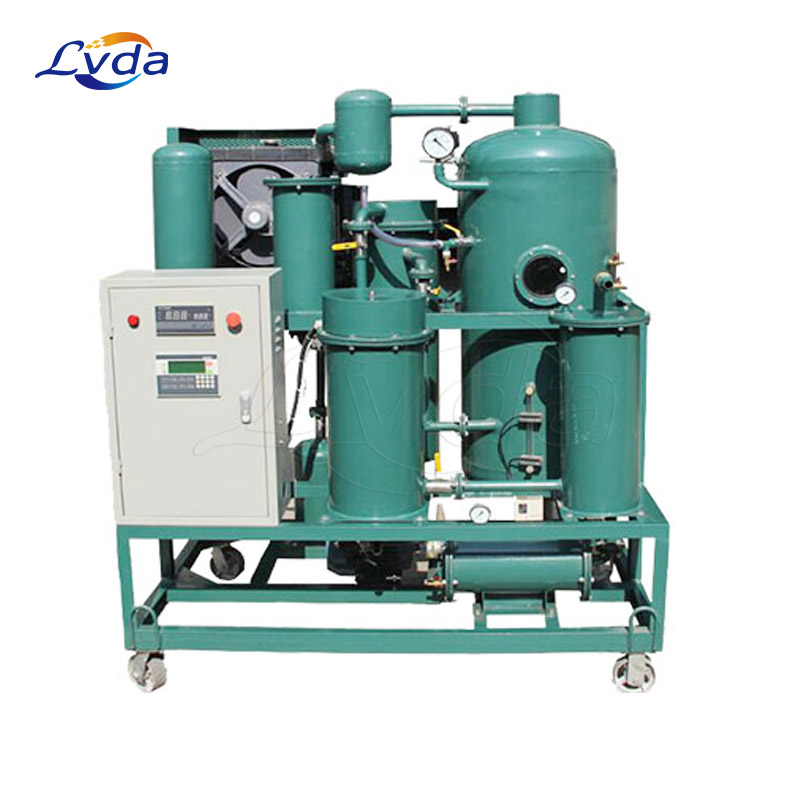

-The high viscosity lubricating oil purifer vacuum recycling machine oil equipment conveys the oil filtration process smoothly and evenly.
-The high viscosity lubricating oil purifer vacuum recycling machine oil equipment is economical and efficient, it can filter corrosive media, and the temperature is high.
-This high viscosity lubricating oil purifer vacuum recycling machine oil equipment can handle high viscosity media.
Applications
-To filter high-viscosity gear oils or lubricants
-To fill-up high-viscosity gear oils or lubricants
-The by-pass filtration for working hydraulic lubricants system
