Product Details

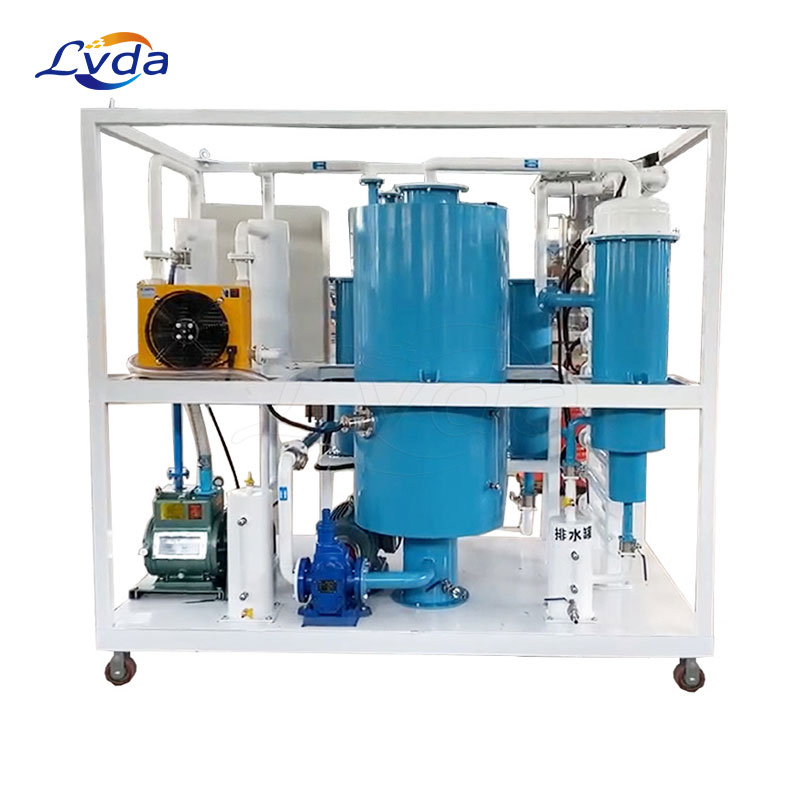

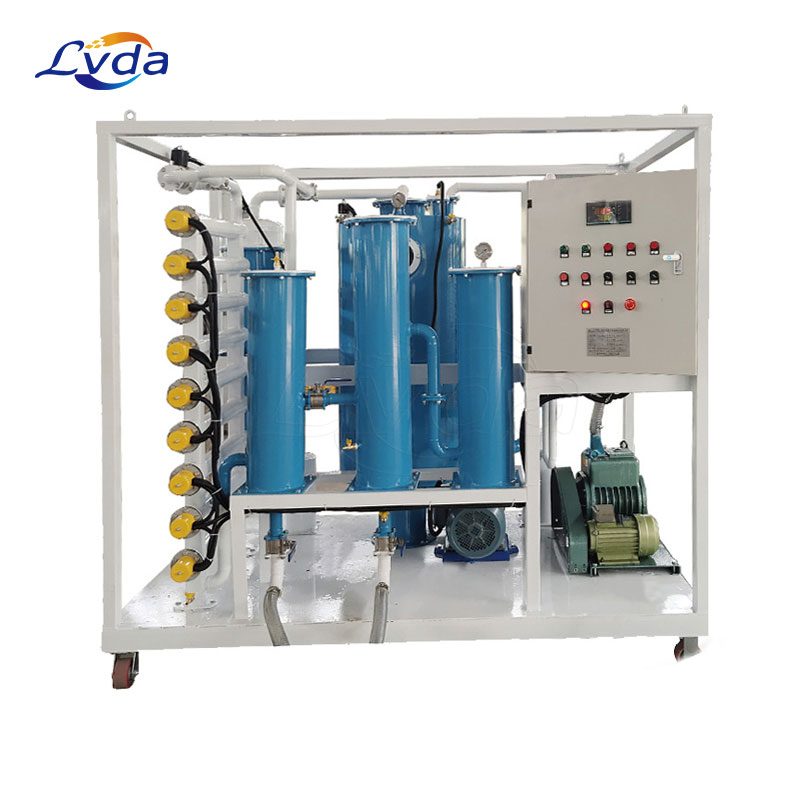

Our motor engine oil decoloring distillation system,car oil purifier adopts pure physical low-temperature distillation and microfiltration purification technology, which can quickly separate various pollutants such as moisture, oxides, metal impurities, residual carbon, colloids, suspended solids, and emulsions in the waste oil, and completely reduce the waste oil. In the oil. The physical and chemical indexes of waste oil (namely, viscosity, PH value, flash point) meet the standards and are completely consistent with brand new oil.
It can fully crack the molecular chains and refractory oxides wrapped by the oil film that cannot be filtered by ordinary oil filters; use pure physical methods (flocculation and bridging) to fully remove all suspended particles or sediments insoluble in gasoline or benzene to make oil molecules The chain and the membrane are recombined and connected to restore the physical and chemical indicators and cleanliness of the oil to meet international standards.
Our oil filter and purifier can be used in the petroleum purification and refining equipment industry. With the high quality and good reputation of our best-selling machines, our machines have been exported to more than many countries.
Product parameters
| Technical item | Unit |
|
|
| Model |
|
|
|
|
| AD-30 | AD-50 | AD-100 | AD-150 | AD-200 | AD-250 | AD-300 |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 |
| Average power | Kw/h | 7 | 7 | 9 | 9 | 12 | 15 | 15 |
| Heating power | Kw/h | 3 | 4.5 | 6 | 6 | 9 | 9 | 11 |
| Working vacuum | Mpa |
|
|
| -0.04～-0.098 |
|
|
|
| Working oil temperature | ℃ |
|
|
| 30～160 |
|
|
|
| Working pressure | MPa |
|
|
| ≤0.8 |
|
|
|
| With power supply | V |
|
|
| 380 |
|
|
|
| Noise | db(A) |
|
|
| ≤70 |
|
|
|
Features
Features
*BOD vacuum oil disillation plants combines several of the advanced latest technologies. It can repidly extract light fractions from crude oil and waste oil to remove water and light disillates and to eventually produce high quality base oil continuously. In the meanwhile, those non-ideal components from waste oil such as Metal Impurities, Base Nitrogen, Sulfur Compounds etc will be removed from the end product after distillation process.
*Unique Catalytic Pyrolysis system
BOD Catalytic Pyrolysis system combines with Vacuum flash distillation technology, breaking up the molecular bonds of crude oil and waste oil into short chain to be formed into high quality base oil.
*Environment Friendly
With the fully closed dillaion system, zhongneng patented gas purification and recycling technologies ensuring ZERO pollutions to the environment.
*Buitl-up in the first class workmanship and superior component. Every single Zhongneng distillation plant passed
the severe inspection procedures to ensure the best quality to be delivered to each of customer.
*High Quality Final Product of New Base Oil
Precise Cut Fractions, producing pure high quality base oil with low sulfur content. The final product out of this disillation plant is high quality base oil with the same quality of new base oil from gas stations.
*Highly automatic control system, Digital Monitoring and PLC System optional. (APP monitoring under development)
*Safety Gurantee
Extra thicker steel plates deliveries extra durability and safety.
*Germany Spare Parts Option(CE/UL/CUL LISTED/CERIFIFED PARTS OPTIONAL)
*High oil recovery rate (high to 95%)
*Residue contains high quantity of polymera and can be used for asphalt blending, production of paving asphalt, bitumen protective covering or as fuel in cement factories.
Applications
BOD vacuum distillation plant is applicable to crude oil and various waste oil, such as waste car engine oil, heavy fuel oil,hydraulic oil, gear oil, transmission oil, mixed black oil, etc. To convert those oil into high quality base oil.
