Decolorization and filtration system unit for engine oils
Decolorization and filtration system unit for engine oils
Decolorization and filtration system unit for engine oils

Decolorization and filtration system unit for engine oils

Engine Oil Purifier

Model Number:

Working vacuum : -0.04~-0.098

Working oil temperature : 30~160

Working pressure : ≤0.8

With power supply : 380

Noise : ≤70

Get Quotation

Product Details

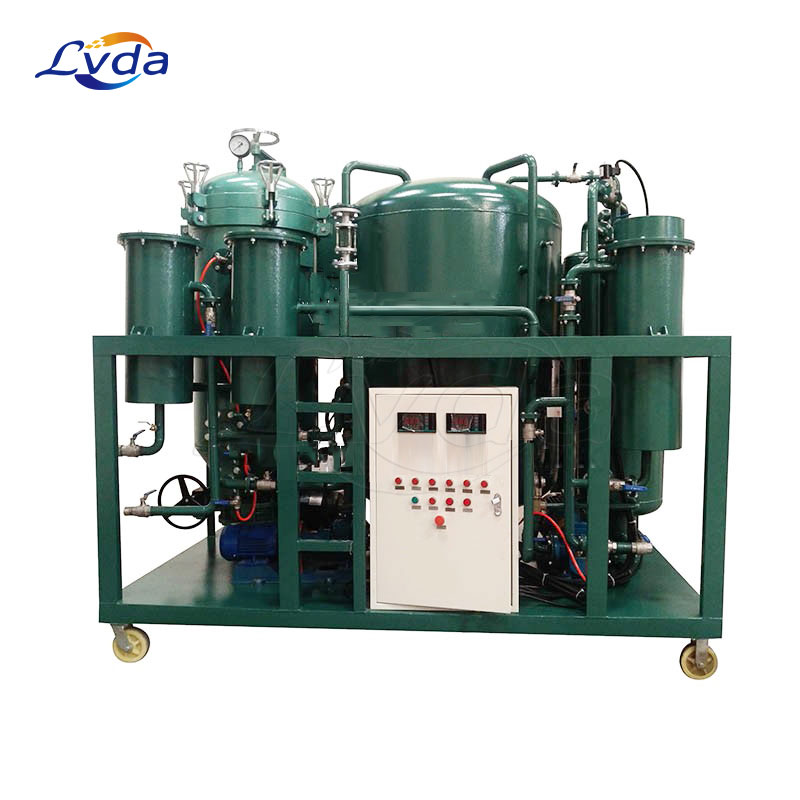

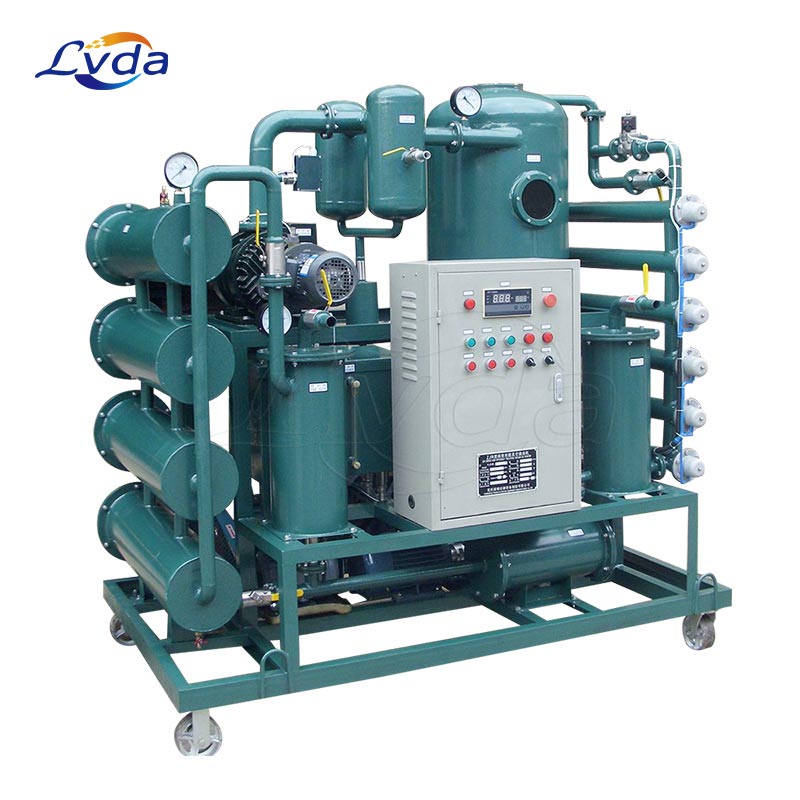

Decolorization and filtration system unit for engine oils is a complete filtration system composed of automatic slag discharge filter and some auxiliary equipment such as mixing tank, conveying pump, pipeline, valve, electric control, etc.

Decolorization and filtration system unit for engine oils is a complete filtration system composed of automatic slag discharge filter and some auxiliary equipment such as mixing tank, conveying pump, pipeline, valve, electric control, etc. The integrated design eliminates the trouble of complicated installation in all links. The system is designed with overall compatibility and applicability in mind at the beginning of the design. Through overall design, debugging and operation, better results are obtained, thus effectively guaranteeing the overall performance of the system.

We can also tailor the product for our clients.

Product parameters

 Technical item  Unit


  Model




 AD-30 AD-50 AD-100 AD-150 AD-200 AD-250 AD-300
 Flow  L/min 30 50 100 150 200 250 300
 Average power  Kw/h 7 7 9 9 12 15 15
 Heating power  Kw/h 3 4.5 6 6 9 9 11
 Working vacuum  Mpa


  -0.04~-0.098


 Working oil temperature  ℃


 30~160


 Working pressure  MPa


 ≤0.8


 With power supply  V


 380


 Noise  db(A)


 ≤70



Features

Fast decolorization, obvious effect, pure physical oil purification method, high degree of automation, simple and convenient operation, and movable. It can effectively remove pollutants in oil products, degas, dehydrate, remove mechanical impurities and severely oxidized sludge, asphaltenes, carbon residues, colloids, chromatin, etc.;The different properties and physical and chemical indicators meet the relevant oil standards, and improve the cleanliness, flash point and emulsification performance of the oil.

Applications

Electric power, petroleum, chemical industry, metallurgy, mining, machinery, aviation, shipbuilding, railway and many other industries.

It is mainly used for the centralized regeneration of various red and blackened dirty oils and scrapped oils. Oils such as Hydraulic Oil,Turbine Oil,Lubrication Oil,Gear Oil,Transformer Oil,Diesel Fuel.
