Product Details
Moisture, gas, volatile substances and impurities are inevitably mixed into the oil phase due to various reasons, which accelerates the oxidation of the oil and promotes foam, fouling and sludge during the operation of engine oils such as diesel oil gasline korosene or kerosine. The formation of oil reduces the lubrication, heat dissipation, dispersion, cooling and other properties of oil. At the same time, it causes corrosion and wear of metal parts, which affects the normal operation of hydraulic system, power system and lubrication system. This series of high accuracy oil filter purifier can quickly remove moisture, gas, impurities and volatiles (gasoline, diesel, kerosene, etc.) from oil. Improve oil quality, restore lubricating oil viscosity, flash point and performance. Ensure the normal operation of engine system, power system and other oil operating systems.

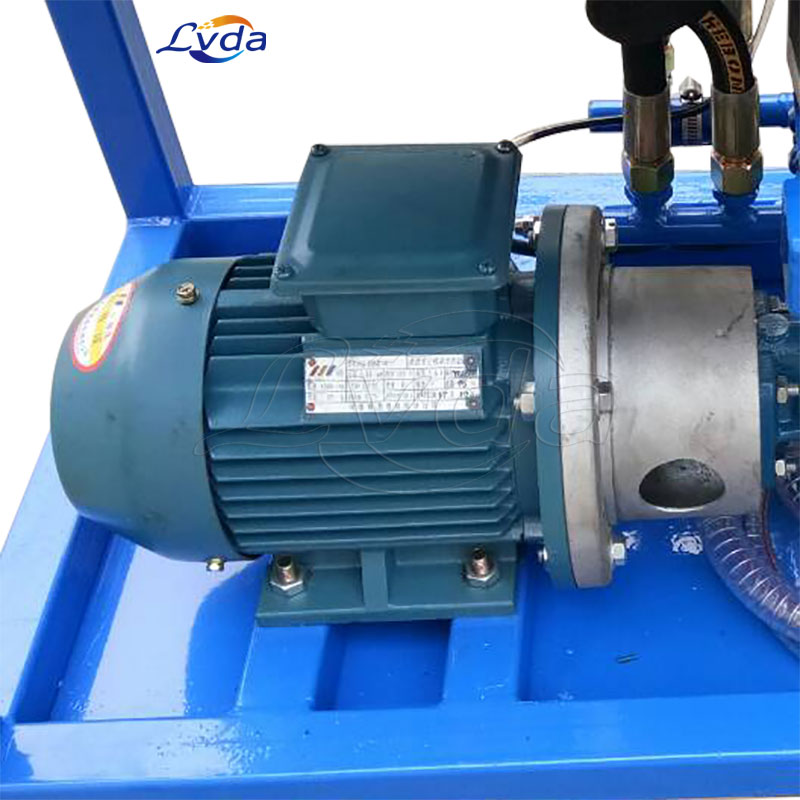

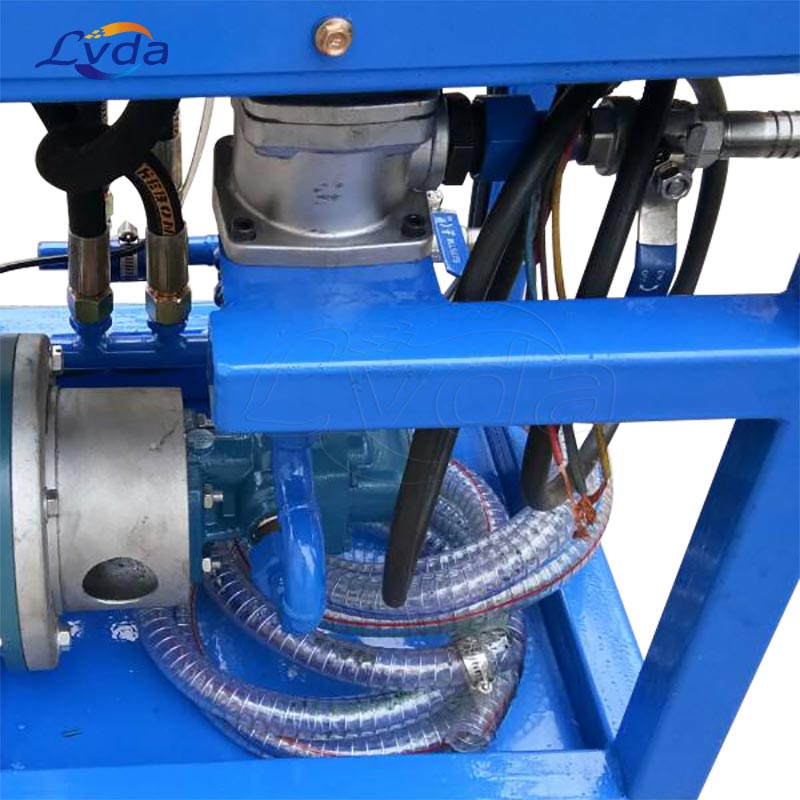

Our high accuracy oil filter purifier consists of several parallel pipes of precision oil filters, and is equipped with a pump motor, vacuum gauge, pressure gauge, suction filter, electromagnetic switch, iron frame, etc. to form a filtering system, and is equipped with wheels for easy mobile use , suitable for centralized filtration or all kinds of mechanical rotation filtration of the same oil, the filtration process is simple, the effect is good, the economy is affordable, and the scope is wide.High Precision Oil Purifier - China Manufacturers, Suppliers, Factory.
Technical parameter
| Model | AOP-S- 1R-* | AOP-S-2 R-* | AOP-S-3 R-* | AOP-S-4 R-* | AOP-S-5 R-* | AOP-S-6 R-* | AOP-S-7 R-* |
| Rated flow(L/min) | 3 | 6 | 9 | 12 | 15 | 18 | 24 |
| Rated pressure(MPa) | 1.6 |
| Mpa(MPa) | ≤0.25 |
| Coarse filter precision(μm) | 100 |
| Fine filter precision(μm) | NAS1638 3-6 Grade |
| Differential pressure | 0.8Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-180 |
| Voltage(V) | AC380V(Three- phase)、50Hz |
| Motor power(kw) | 0.2 | 0.2 | 0.4 | 0.4 | 0.55 | 0.75 | 0.75 |
| Weight(kg) | 66 | 86 | 90 | 108 | 112 | 120 | 135 |
| Dimensions(mm) | 380x500x680 | 380x500x680 | 600x500x680 | 600x500x680 | 860x500x1000 | 1100x500x1000 | 100x500x1000 |
Features
-High-fficiency electric heating system, automatic control, less power consumption.
-Strong ability of demulsific ation, separating oil and water fficinty.
-Large area three-dimensional flash disillation technology.
-Three stage filtration system (primary flter, secondary filter, fine filter).
-Interlocking protection mechanism.
-Automatic oil level controller.
-Humanized design, easy control for operation and supervision.
-Automatic pressure protect system.
Applications
Engine oil filtration and purification
