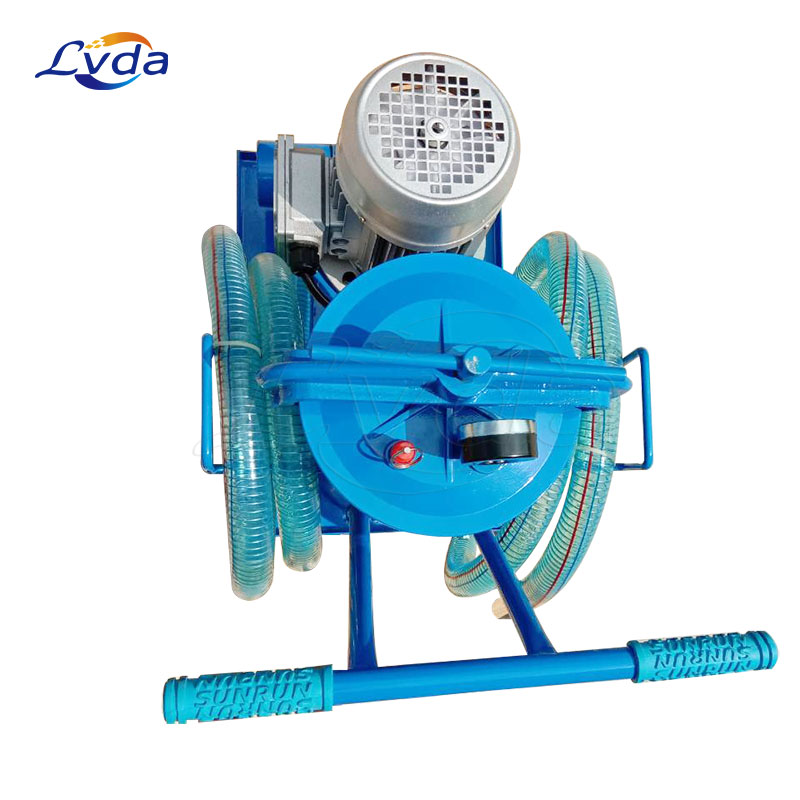

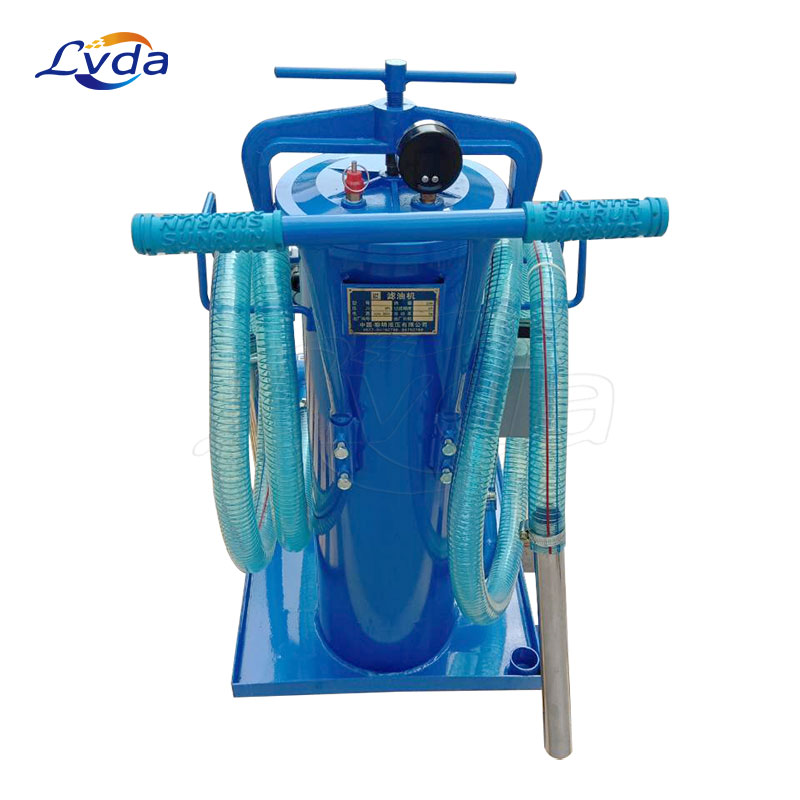

High solid ratio oil filtration purifier

High solid ratio oil filtration purifier

Engine Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 180、120、80

Differential pressure : 0.2 MPa

Recommended viscosity(cSt) : 10-160

Voltage(V) : AC 380V(Three - phase)、50Hz

Product Details

The high solid ratio oil filtration purifier can be used to purify diesels in engine.

The high solid ratio oil filtration purifier provides regular oil purification such as degassing, drying and particulate removal, it also can remove acidity, sludge, other soluble oil decay products and discoloration.

After the treatment, the oil can be reused as new.

For special uses, the high solid ratio oil filtration purifier unit also can be installed on a leak proof base and can be installed and operated on a trailer. Regular servicing your machine's engine with our high solid ratio oil filtration purifier will substantially increase the machine lifetime and performance, the most important thing is, that helps to reduce your maintenance cost, and make your machine work more nicely, so that your production equipment utility stays in a well good state.

Technical parameter

Model	AOP-G32 -/*	AOP-G50 -/*	AOP-G100 -/*	AOP-G150 -/*	AOP- -G200 -/*
Rated flow(L/min)	32	50	100	150	200
Rated pressure(MPa)	0.6
Mpa(MPa)	≤0.1
Coarse filter precision(μm)	180、120、 80
Clarify filter precision(μm)	5、10、20
Fine filter precision(μm)	3
Differential pressure	0.2MPa
Recommended viscosity(cSt)	10-160
Voltage(V)	AC 380V(Three - phase)、50Hz
Motor power(kw)	0.75	1.1	2.2	3.0	5.5
Weight(kg)	220	280	360	480	600
Dimensions(mm)	900x600x1080	1000x600x1080	1200x880x1280	1200x880x1520	1350x900x1870
