Product Details

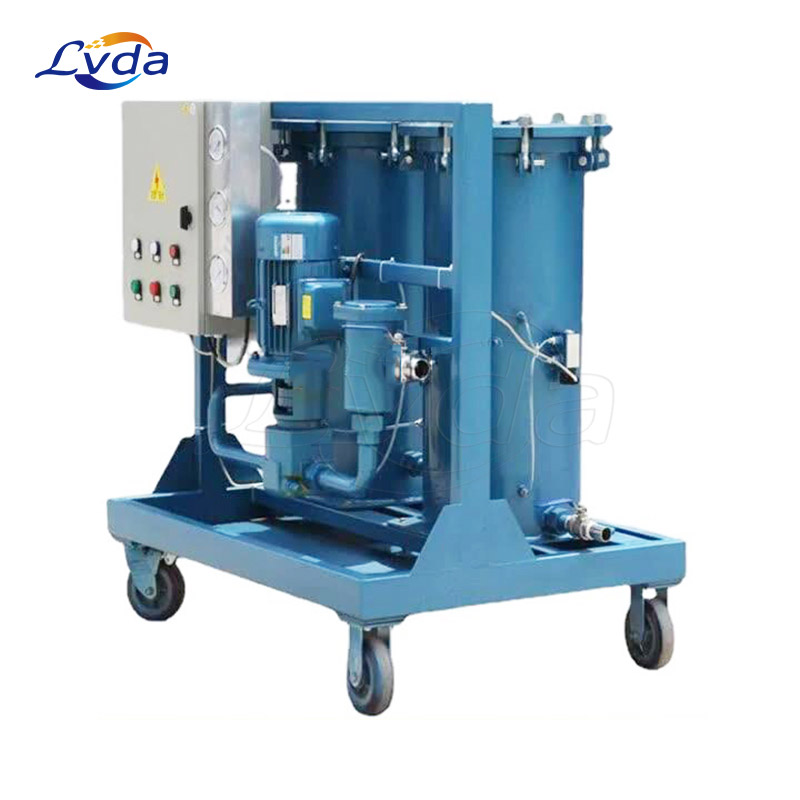

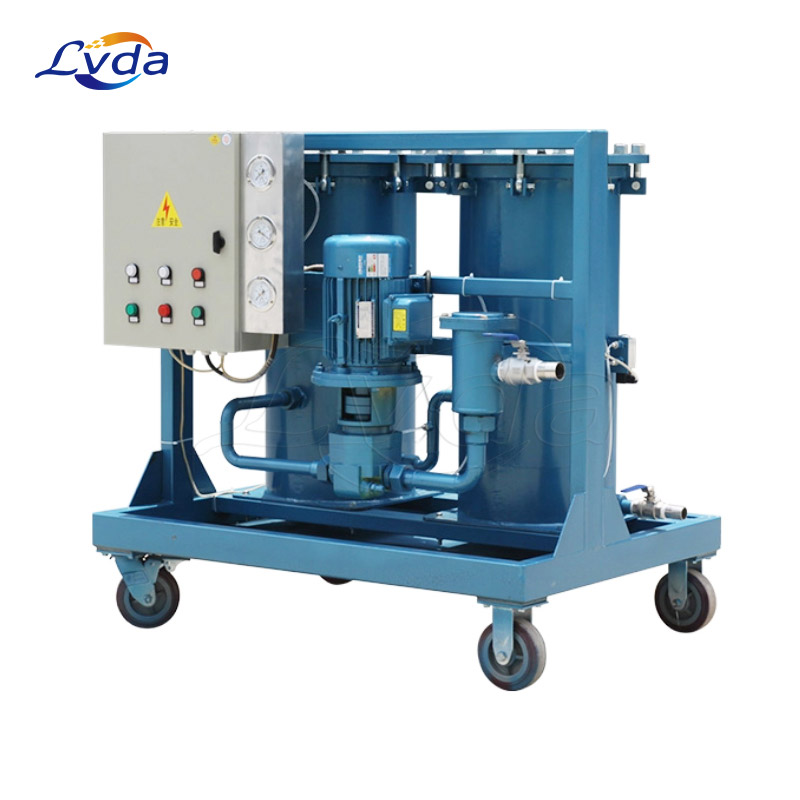

For high solid content in oil media, the series of high solids oil filter purifier unit is applied.The solid content is the mass percentage of the emulsion or paint after drying under specified conditions. The solids content of an ingredient, such as waste oil. The high solid content oil filter is a filter unit that gets rid of the high solid content in the impure oil by filtering. Mainly used for all kinds of engine oil clarification and filtration, as well as high solid content food oil filtration.
The unit can treat the diesel oil, gasoline oil,kerosene oil, kerosine oil, train fuel and other burning oils used inside the oil engine.
Technical parameter
| Model | AOP-G32 -*/** | AOP-G50 -*/** | AOP-G100 -*/** | AOP-G150 -*/** | AOP- -G200 -*/** |
| Rated flow(L/min) | 32 | 50
| 100 | 150
| 200 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.1
|
| Coarse filter precision(μm) | 180、120、 80
|
| Clarify filter precision(μm) | 5、10、20 |
| Fine filter precision(μm) | 3
|
Differential pressure
| 0.2MPa |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three - phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 3.0 | 5.5 |
Weight(kg) | 220 | 280 | 360 | 480 | 600 |
| Dimensions(mm) | 900x600x1080
| 1000x600x1080 | 1200x880x1280 | 1200x880x1520 | 1350x900x1870 |
Features
The ability to filter out impurities is strong, and the large-area, deep-level precision filter material can remove fine particles in the oil.
Automatic backwash function: automatic cleaning of a large number of impurities retained by the filter.
Advanced media endothermic condensation system.
The lubricating oil purifier is equipped with pressure protection, automatic temperature control heating, automatic separation of condensate water device, and drainage during line operation. The operation is simple, safe and reliable.
Using high-quality filter material, it has large dirt holding capacity, corrosion resistance, high temperature resistance, high mechanical strength, high impurity removal accuracy and long service life.
Unique degassing and dehydration system: Using three-dimensional evaporation technology and multi-level oil-water separation technology, it can quickly separate water, gas and impurities in oil.
Application
Filtration of High Solids Lubricants
Clarification and filtration of large quantities of lubricating oil
Regeneration and Filtration of Waste Oil
General hydraulic oil, edible oil, phosphate ester hydraulic oil
The filtration of diesel oil, gasoline oil,kerosene oil, kerosine oil, train fuel and other burning oils used inside the oil engine.
