Product Details
Box type oil purifier filtrator trolley unit

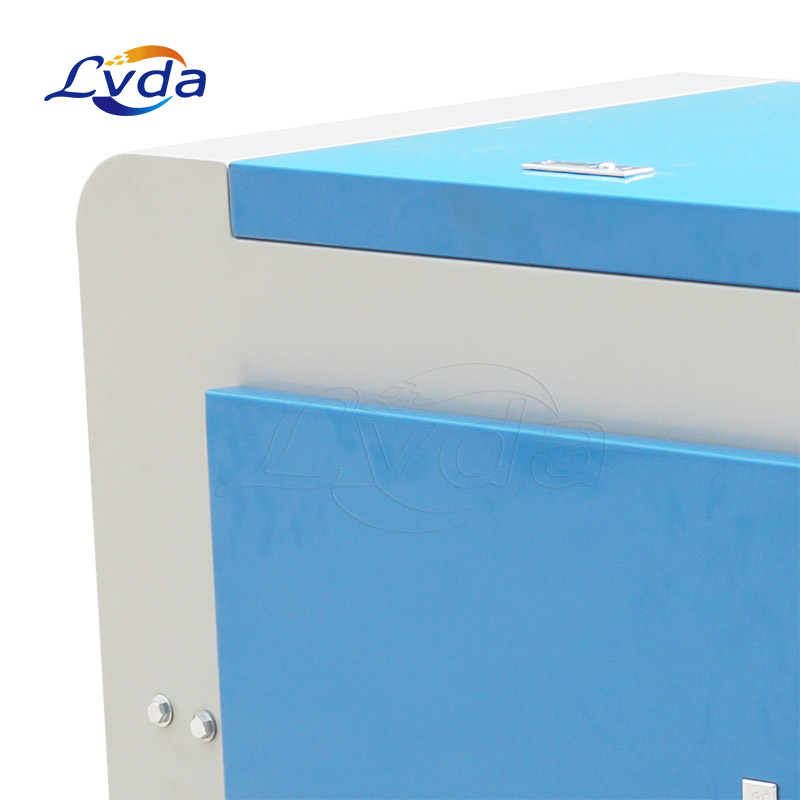

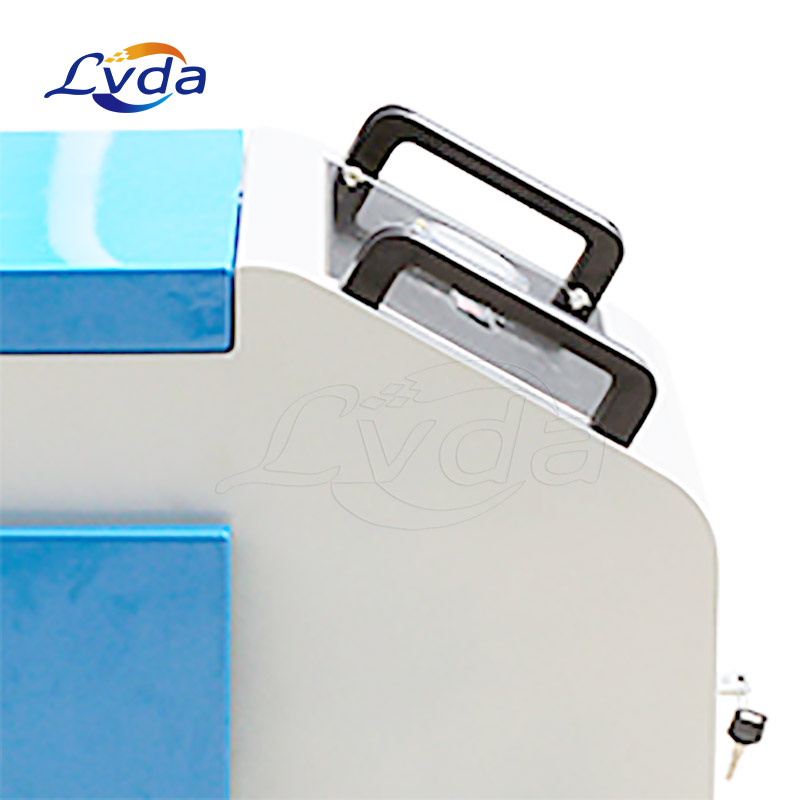

All parts are packaged in a refined housing to protect the equipment from outside pollution, specially for situations with very high requirements for the application environment.
The unit includes china made gear pump driven by a motor, which has the features of small noise, high self-priming ability and stable operating attribute.
The oil filter outer shell employs a quick-opening structure, and this quick-opening structure can rapidly open the upper cover and replace the filter element without special tools.
The inside precision filter can choose different precision according to the different users to achieve the required results.
All connections are made of hydraulic pipe joints, with reliable connection and sealing, and 0 leakage. Gear pump, inner gear pump, quiet operation and long life. Pressure indication, the Box type oil purifier filtrator trolley unit is equipped with a pressure gauge. That indicates the system pressure and prompts to replace the filter element in time. Wheels, polyurethane wheels. Bearings, running smoothly and without noise. Filter element, filter material, large filtration area. Following with the international level of structural design. The oil suction filter adopts high-strength woven mesh to protect the oil pump from damage. Fully covered car body, neat and beautiful, protects all components. End cap, top design. Quick opening structure, easy to replace the filter element. Two-stage precision filter, pre- and fine two-stage filtration, double filtration area. Longer using life and optional dewatering filter. Electrical control, using magnetic starter, built-in thermal relay protection, can effectively protect the motor. Explosion-proof, explosion-proof type can be selected, which is suitable for the occasion of filtering gasoline, diesel oil, kerosene and other flammable and explosive media in petroleum, chemical, aerospace and other industries. With its own fuel tank, this box type oil purifier filtrator trolley unit can be optionally carried with a fuel tank. Comes with a fuel tank. The oil in the self-provided oil tank can be directly injected into the system after the self-circulation filtration arrives the standard. Especially suitable for hydraulic systems containing servo valves, proportional relief valves and other parts.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
The whole unit has small working noise and long service life.
Nice performance and compact design.
It adopts domestic high-quality filter paper and meshs, which has large dirt holding ability, durability, acceptable price, nice mechanical strength and high impurity removal accuracy.
The mechanical impurities in the oil reach the national new oil standard after being filtered.
The unit is small and light, mobile and flexible.
There is a two-stage fine filter behind the pump, so that the oil can quickly reach a high degree of cleanliness.
The suction port coarse filter protects the oil pump and prolongs the life of the main filter.
In order to prevent motor damage caused by motor overload, thermal relay protection is adopted.
Applications
The unit, being explosion-proof, is uesd to filter gasoline, diesel, kerosene, and other flammable medium, in the field of petroleum, chemical, aerospace and other industries.
Mechanical processing equipment: lubrication system and compressed air purification of papermaking machinery, mining machinery, injection molding machine and large machinery, dust recovery and filtration of tobacco processing equipment and spraying equipment.
Railway internal combustion engines and generators: filtration of lubricating oil and oil.
Thermal power and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water supply pump, fan and dust removal system purification.
The box type oil purifier filtrator trolley unit can be widely used in power industry, construction machinery, metallurgical industry, offshore oil well and onshore oil field industry, petrochemical industry, and machining industry.
