Product Details
Box type oil purify filtration trolley
All components are packaged in a refined shell to protect the equipment from external pollution, especially for occasions with high requirements for the use environment.
This machine includes a Chinese-made gear pump driven by a motor, which has the characteristics of low noise, strong self-priming ability and stable operation.

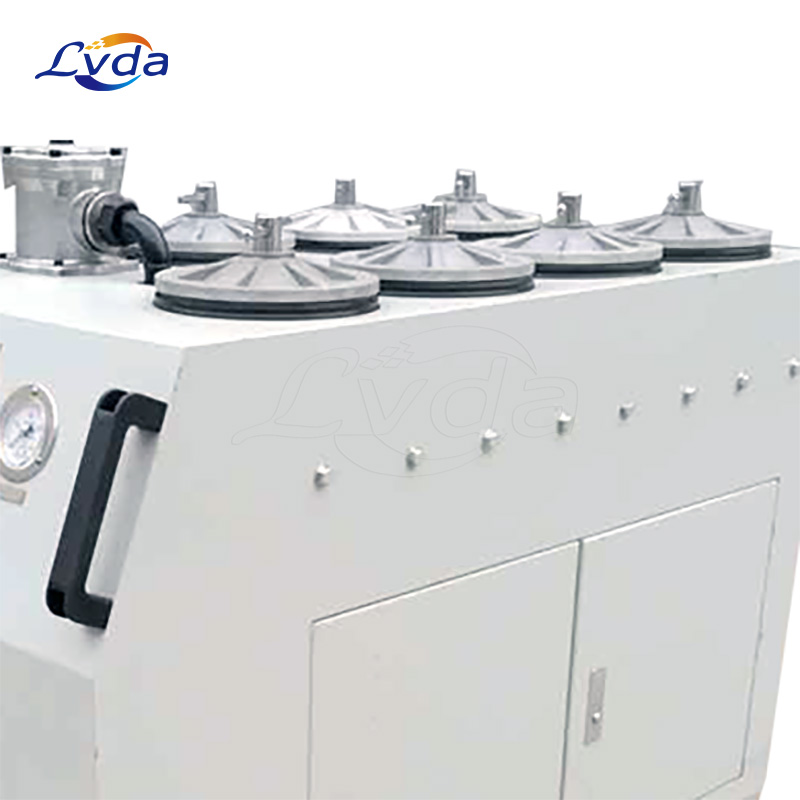

The oil filter housing adopts a quick-opening structure, which can quickly and quickly open the upper cover and replace the filter element without special tools.
The fine filter can choose different precision according to the different needs of users to achieve the required results.
All connections are made of hydraulic pipe joints, with reliable connection and sealing, and zero leakage. Gear pump, internal gear pump, quiet operation and long life. Pressure indication, the box-type mobile oil filter truck is equipped with a pressure gauge. It indicates the system pressure and prompts to replace the filter element in time. Wheels, polyurethane wheels. Bearings, running smoothly and without noise. Filter element, filter material, large filter area. Keep up with the international level of structural design. The oil suction filter adopts high-strength woven mesh to protect the oil pump from damage. Fully covered car body, neat and beautiful, protects all components. End cap, top design. Quick opening structure, easy to replace the filter element. Two-stage fine filter, pre- and fine two-stage filtration, double filtration area. Longer service life and optional dewatering filter. Electrical control, using magnetic starter, built-in thermal relay protection, can effectively protect the motor. Explosion-proof, explosion-proof type can be selected, which is suitable for the occasion of filtering gasoline, diesel oil, kerosene and other flammable and explosive media in petroleum, chemical, aerospace and other industries. With its own fuel tank, this box-type mobile oil filter truck can be optionally carried with a fuel tank. Comes with a fuel tank. The oil in the self-provided oil tank can be directly injected into the system after the self-circulation filtration reaches the standard. Especially suitable for hydraulic systems containing servo valves, proportional relief valves and other components.
Technical parameter
| Model | A0P-B32-*/** | AOP- B40-*/** | AOP- B50-*/** | AOP-B63-*/** | AOP-B100-*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
With three-stage filtration, light and flexible, easy to operate, no filter paper, no pollution to the site
The whole machine has low working noise and long service life.
Excellent performance and compact design.
It adopts domestic high-quality filter material, which has large dirt holding capacity, durability, reasonable price, good mechanical strength and high impurity removal accuracy.
The mechanical impurities in the oil reach the national new oil standard after being filtered.
The machine is small and light, mobile and flexible.
There is a two-stage fine filter behind the pump, so that the oil can quickly reach a high degree of cleanliness.
The suction port coarse filter protects the oil pump and prolongs the life of the main filter.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
This machine uses a refined shell to cover all components to protect the equipment from external pollution, especially suitable for occasions with high requirements for the use environment.

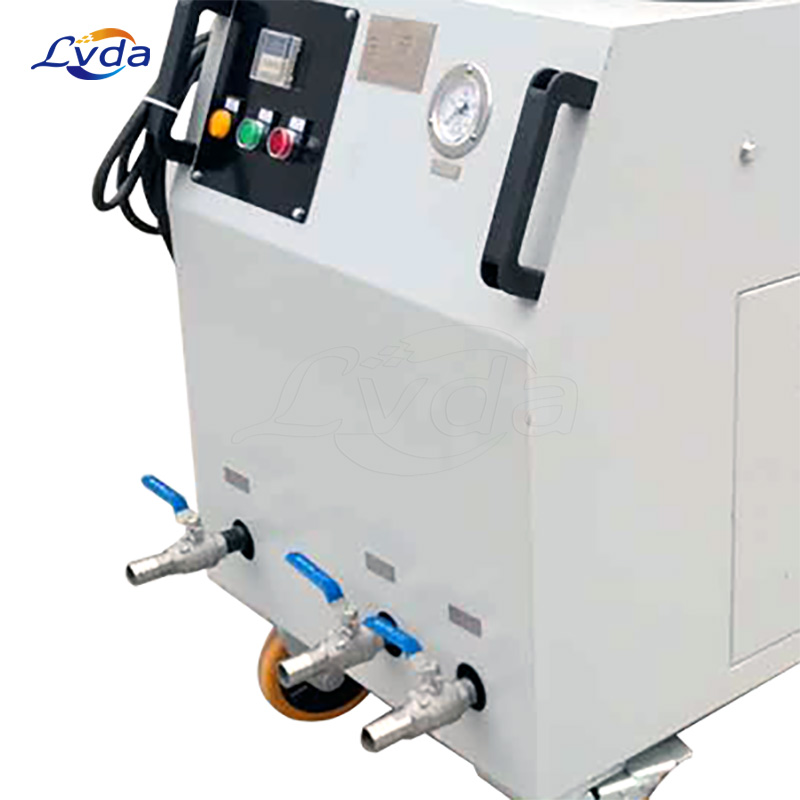

The panel is equipped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the filter element during operation.
Adopt thermal relay protection to prevent motor damage caused by motor overload.
Applications
The machine, being explosion-proof, is uesd to filter gasoline, diesel, kerosene, and other flammable medium, in the field of petroleum, chemical, aerospace and other industries.
Textile: Purification and uniform filtration of polyester melt in the process of wire drawing, protection and filtration of air compressors, and degreasing and water removal of compressed gas.
Electronics and pharmaceuticals: pre-treatment and filtration of reverse osmosis water and deionized water, pre-treatment and filtration of cleaning solution and glucose.
Mechanical processing equipment: lubrication system and compressed air purification of papermaking machinery, mining machinery, injection molding machine and large machinery, dust recovery and filtration of tobacco processing equipment and spraying equipment.
Railway internal combustion engines and generators: filtration of lubricating oil and oil.
Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, liquid purification, purification of magnetic tapes, optical discs and photographic films in manufacturing, and particle removal and filtration of oilfield well water and natural gas.
Metallurgy: It is used for the filtration of the hydraulic system of rolling mills and continuous casting machines and the filtration of various lubricating equipment.
Automobile engines and construction machinery: air filters, oil filters, fuel filters for internal combustion engines, various hydraulic oil filters, diesel filters, and water filters for construction machinery, ships, and trucks.
Thermal power and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water supply pump, fan and dust removal system purification.
The box-type oil filter can be widely used in power industry, construction machinery, metallurgical industry, offshore oil well and onshore oil field industry, petrochemical industry, and machining industry.
