Engine Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Coarse filter precision(μm) : 100

Differential pressure : 0.2Mpa

Working temperature(°C) : 5-80

Recommended viscosity(cSt) : 10-160

Get Quotation

Product Details

Box-type waste engine oil purifier for diesel oil

Our Box-type waste engine oil purifier for diesel oil is mobile pushcart filter not only can be used as hydraulic system tanker to ensure the cleanliness of oil, but also used as by-pass circulation filtering equipment of the hydralic system for rugular cleanliness.

The box-type waste engine oil purifier for diesel oil can be maintain the pollution of hydralic system, keep the system work properly, and prolong the service life.

Technical parameter

Model

A0P-B32-*/**

AOP-B40-*/**

AOP-B50-*/**

AOP-B63-*/**

AOP-B100-*/**

Rated flow(L/min)32
405063100
Rated pressure(MPa)0.6
Mpa(MPa)≤0.02
Coarse filter precision(μm)100
Grade 1 filter precision( μ m)3、5、10、20
Grade 2 filter precision( μ m)3、S-W
Differential pressure0.2Mpa
Working temperature(°C)5-80
Recommended viscosity(cSt)10-160
Voltage(V)AC 380V(Three- phase)、50Hz
Motor power(kw)0.751.11.11.12.2
Weight(kg)135145150156182
Dimensions(mm)
950 x 560 x 900950 x 560 x 900950 x 560 x 900950 x 560 x 9001100 x 660 x 1000

Feartures

-Pre-filtration, fine filtration, double filtration area, long service life, and optional dewatering filter.

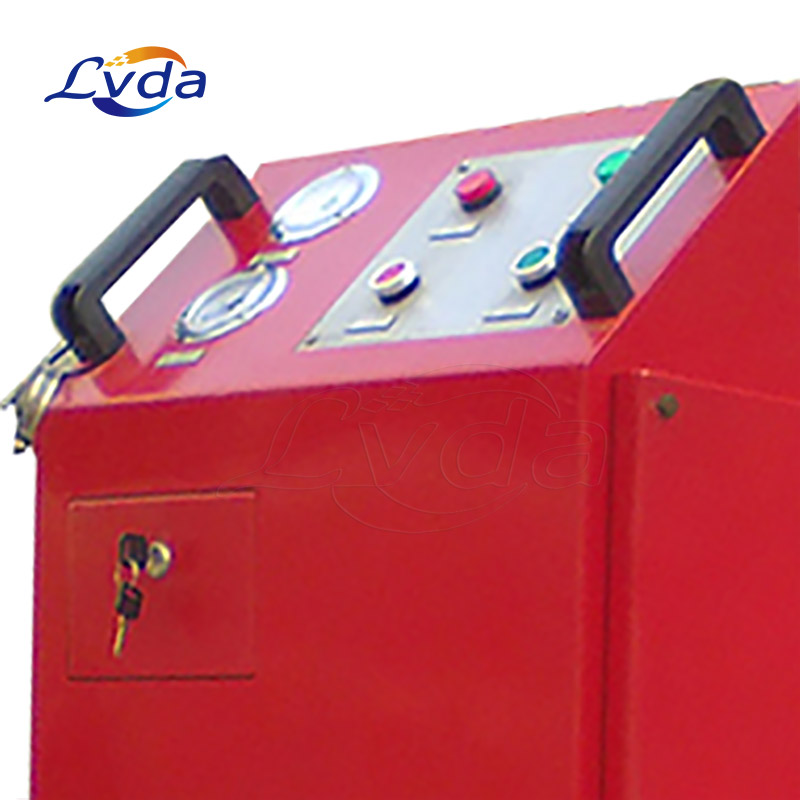

-The top design allows quick opening of the structure for easy replacement of the filter element.

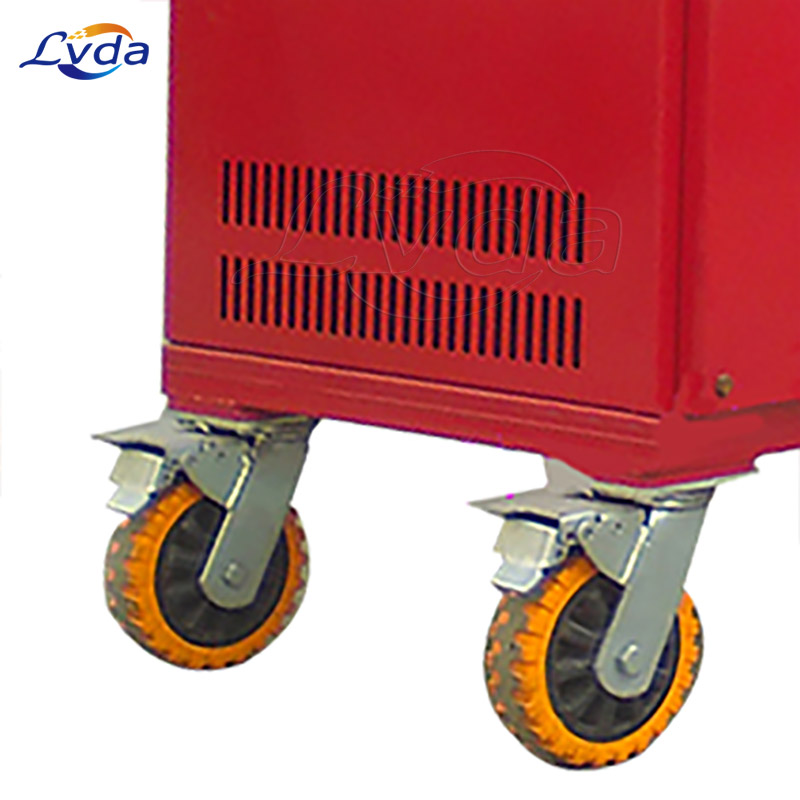

-High quality whees, bearings, smooth running, no noise.

-The magnetic starter is equipped with thermal relay protection to protect the motor and is durable.

Applications

Access the hydraulic lubrication system to improve the cleanliness of the system in an all-round way

Filtration of hydraulic lubrication systems when refueling

Bypass filtration when hydraulic lubricating system works

Circulation filtration before the hydraulic lubrication system is put into operation
