Product Details

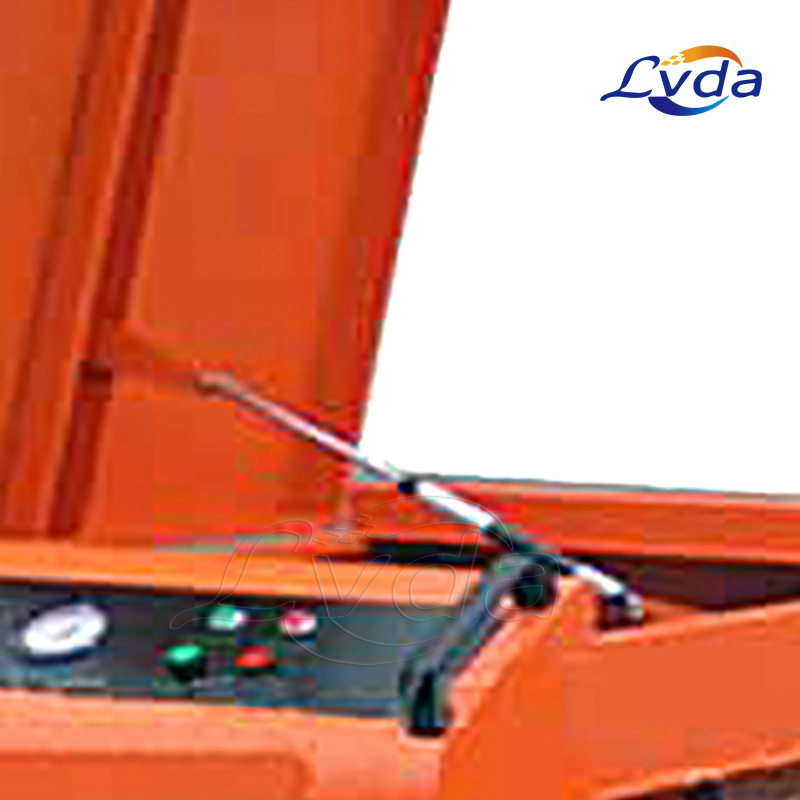

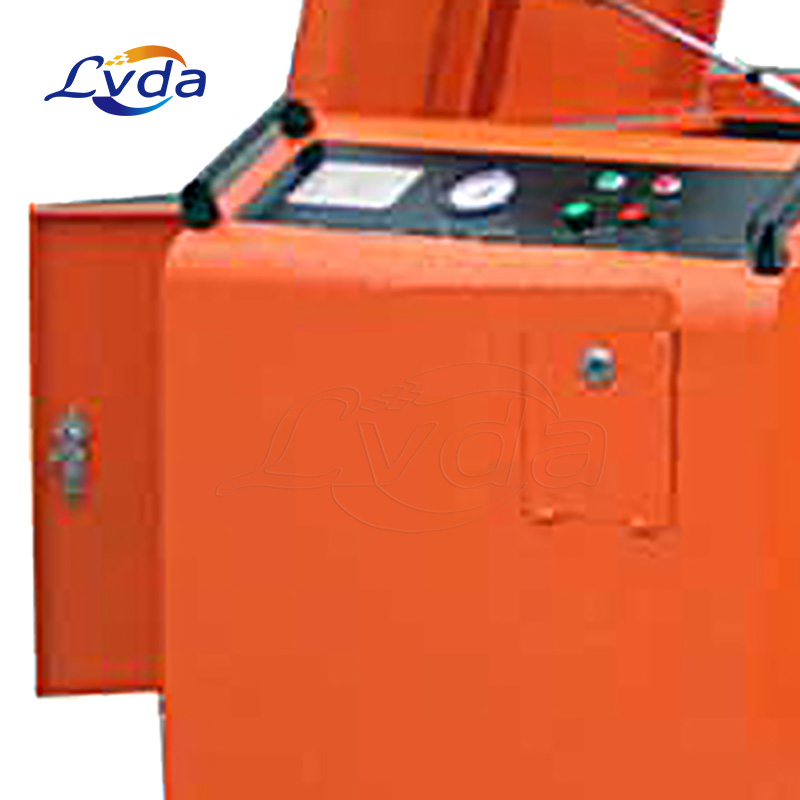

Mobile box type oil purifier
This mobile box type oil purifier employs refined shell covered all the components to protect equipment from outside contamination, particularly adapted to the use of special environmental requirements of the occasion. The mobile box type oil purifier consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.The use of thermal relay protection to prevent motor damage caused by motor overload.Coarse filtration of suction port can protect the pump and extend the life of the main filter.After the pump has two precision filters, so the oil can quickly reach high cleanliness.First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture. The precision filter chosen by different users for different precision, can provide better protection for the system. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Technical parameter
| Model | A0P-B32 -*/** | AOP-B40 -*/** | AOP-B50 -*/** | AOP-B63 -*/** | AOP-B100 -*/** |
| Rated flow(L/min) | 32
| 40 | 50 | 63 | 100 |
| Rated pressure(MPa) | 0.6 |
| Mpa(MPa) | ≤0.02 |
| Coarse filter precision(μm) | 100 |
| Grade 1 filter precision( μ m) | 3、5、10、20 |
| Grade 2 filter precision( μ m) | 3、S-W |
| Differential pressure | 0.2Mpa |
| Working temperature(°C) | 5-80 |
| Recommended viscosity(cSt) | 10-160 |
| Voltage(V) | AC 380V(Three- phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 1.1 | 1.1 | 2.2 |
| Weight(kg) | 135 | 145 | 150 | 156 | 182 |
Dimensions(mm)
| 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 950 x 560 x 900 | 1100 x 660 x 1000 |
Features
Box type structure
Neat and beautiful, effectively protect all components.
Double stage fine filter
Pre-filter and fine filter, 2 times fltration area, long service life, optional dehydrating filter element.
End cap
Top design, Quick -opening structure, convenient for maintenance.
Filter element
High precision fliter material, Large fitration area, advanced structure design.
Connection
Adopting hydraulic pipe joints, reliable connection and sealing, zero leakage.
Frame
Sturdy and durable.
Carriage wheel
Premium polyurethane wheel, operate smoothly, no noise.
Electrical control
Using magnetic starter, built-in thermal relay protectin, efective protection of the motor, sturdy and durable.
Suction oil filter
Using high-strength mesh grid for protecting oil pump from damage.
Pressure indicator
Equipped with pressure gauge to indicate system pressure and prompt to replace the fiter element in time.
Gear pump
Internal gear pump, quiet operation, reliable performance, long service life.
Anti- explosion
Anti-explosion type is optional, widely used in petroleum, chemical, aerospace and other fields.
Built-in tank
Built-in tank is optional. The oil in the tank can be directly injected into the system after it passes through the self-cirulating fltration to reach the standard.
Applications
Suitable oil types:
Engine oil, hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil, rail oil, cutting oil, quenching oil, stamping oil, anti-rust oil, spark oil, etc..
