Product Details

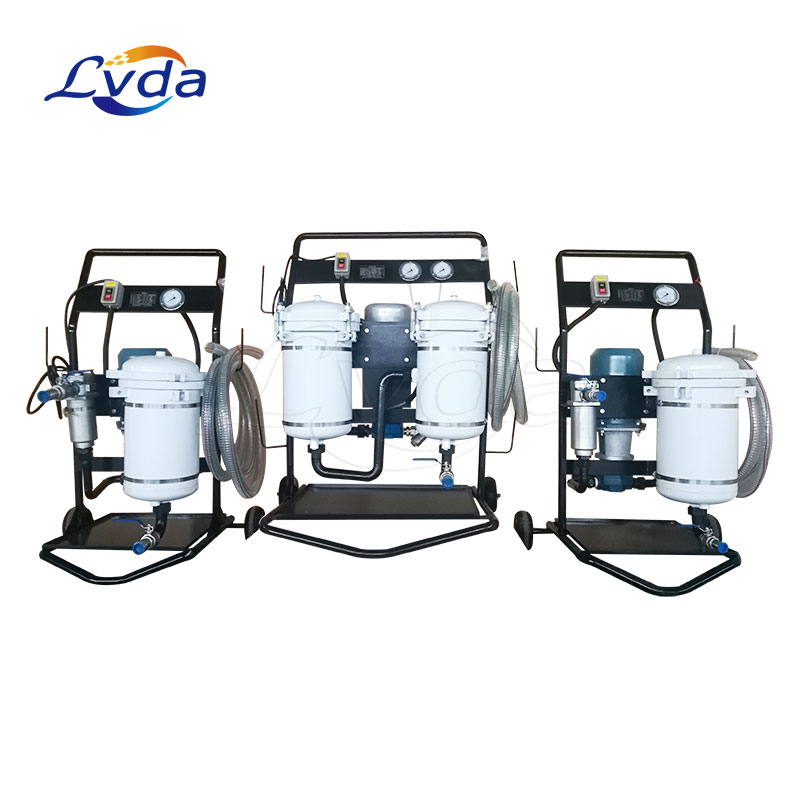

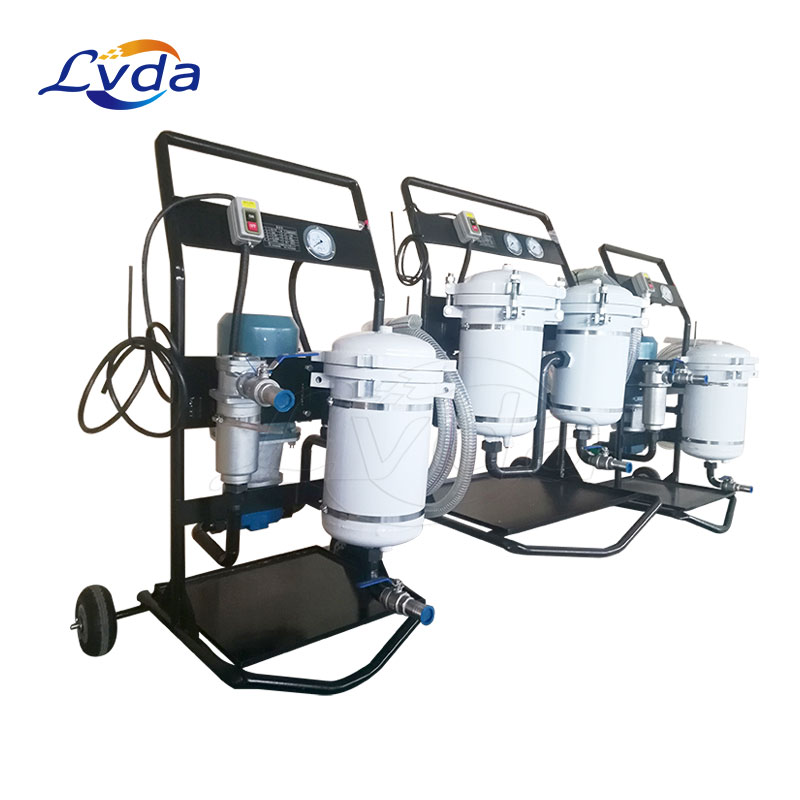

Mobile filter device for hydraulic oil and diesel
High-quality hydraulic oils in machines and industrial plants occasionally need to be filtered be used to extend service life. Many machine manufacturers even require that fresh oil when pouring into the machines needs to be filtered. The cleaning device makes this task easier in an easy way. On a sturdy, weatherproof chassis painted tubular steel is the 220V electric pump assembled specifically for conveying low-viscosity oils.There is a filter at the pump outlet Removable cartridge mounted, in which the oil with 10μ is filtered. A manometer shows the condition of the filter. 2 m suction and pressure hoses are installed.A lance is also mounted on the suction hose. All devices are customizable.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
-Mobile tubular frame with anti-rust treatment and weatherproof finish.
-Positive displacement vane pump with bypass.
-Self-ventilating induction motor, with overcurrent switch and start/stop switch.
-Replaceable cartridge filter with head. Paper filter with 10 μ. filter capacity.
-Pressure gauge to indicate filter clogging.
-Suction and discharge lines with transparent spiral hose.
Applications
Particulate and Water Removal
Hydraulic Reservoir Maintenance
Gearbox Flushing & Oil Change
Filtration System Upgrades
Turbine Oil Conditioning
Refinery Upset Condition
Complete System Flushing
Varnishing
Liquid Coalescing and Separating
High Viscosity Lubrication and Hydraulic Oils
Transfer and Replenishment of New Fluids
Reusing Oil and Expanding Machinery Life
