Product Details

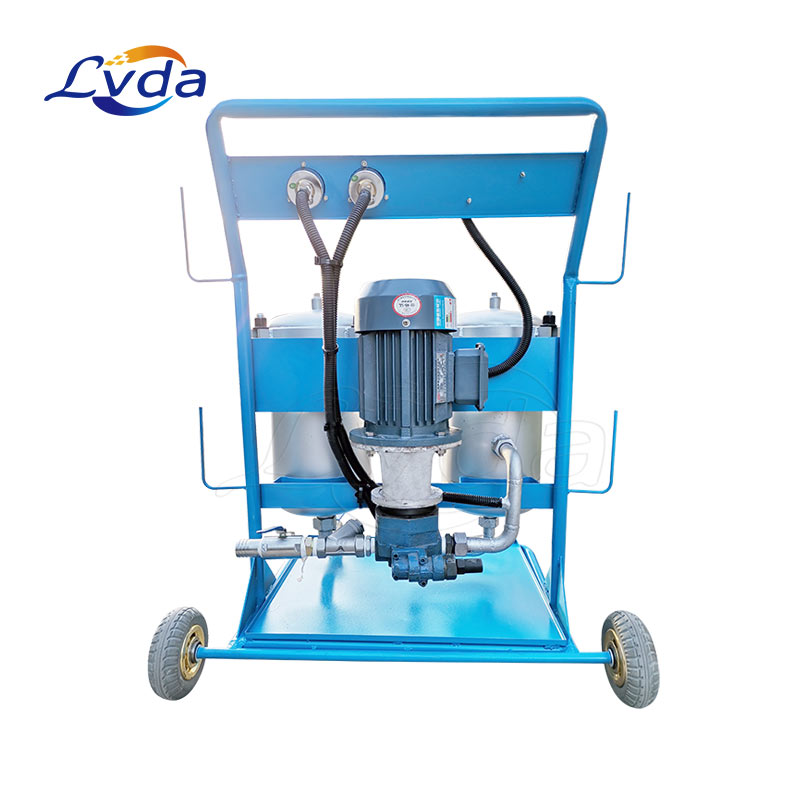

Mobile portable skid for diesel fuel filtration
The mobile portable skid for diesel fuel filtration is designed for purification of industrial, hydraulic, turbine, transformer and other oil types, as well as diesel fuel, kerosene and petroleum with especially high moisture content.
The mobile portable skid for diesel fuel filtration can process oil with high water content.
Water is removed by coagulation. When oil passes through a special filter element, water molecules gather into droplets and flow down the surface of the filter into a settling vessel. The water can then be drained through a valve.
A cartridge filter is installed in the mobile portable skid for diesel fuel filtration for removal of water from oil to remove particulate matter from the oil.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|

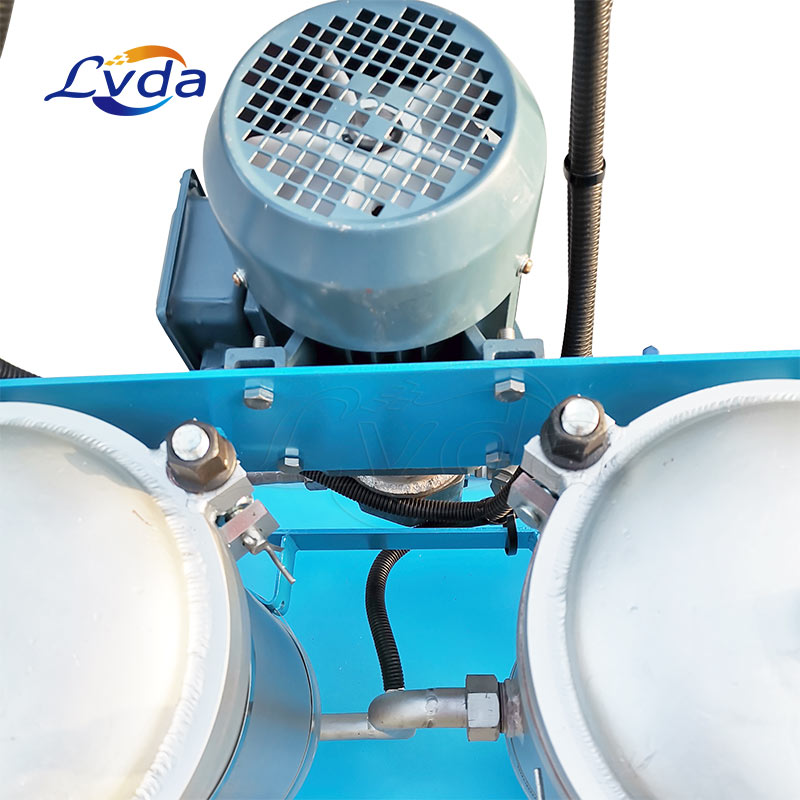

This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Explosion proof
Process oil with extremely high water content, as high as 50/50 % and above;
The processed material is not subjected to heating, chemicals or other factors that can adversely affect its properties;
Low power consumption;
Relative compact dimensions;
Highly mobile.
Small, light weight and convenient.
The ultrasonic cleaning function can be selected.
Operate steady and the noise is specially low.
Applications
Diesel filtration, and filtrating industrial oils, turbine and other engine oils.
All types of turbine oils, turbine oils with water content.
Turbine Oil Conditioning
Particulate and Water Removal
Gearbox Flushing & Oil Change
High Viscosity Lubrication and Hydraulic Oils
