Product Details

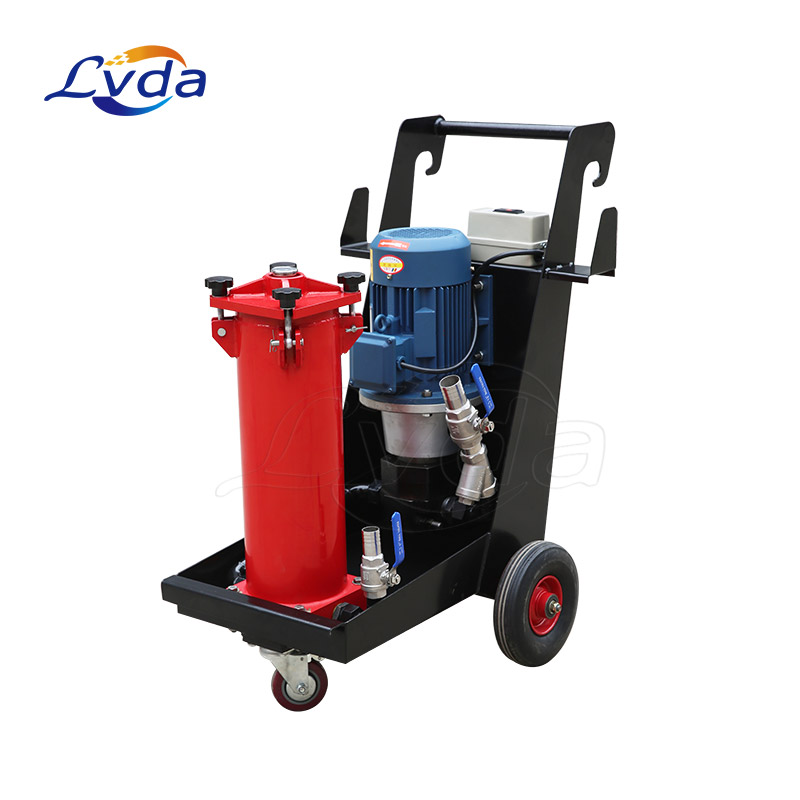

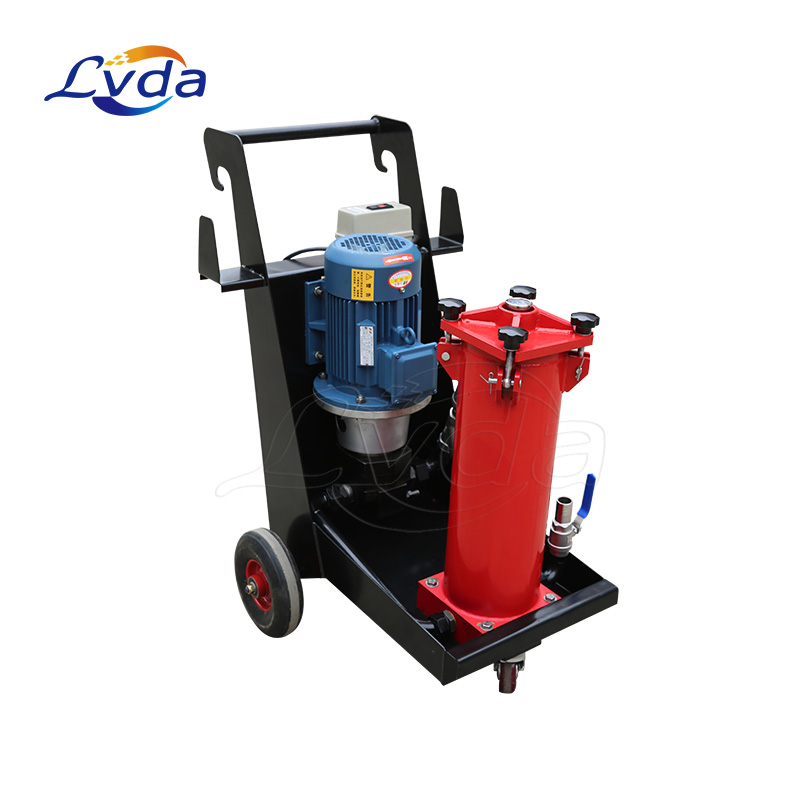

Explosion proof diesel oil dehydration unit mobile skid, gasoline fuel oil water separator and filter machine mobile skid
This oil filter unit mobile skid integrates fine filter, high efficiency demulsification and dehydration into one body. This oil filter unit mobile skid can quickly separate water from the oil, which even contains half water.Convenient using with the go-cart model designed. In a word, it is be used for fast removal of water and impurities in fuel oil or light oil which contains large amount of water.
This oil filter unit mobile skid can be tailored, according to the requirement of customers. Please indicate the degree of explosion-proof in the application conditions and other special requirements. Purification performance is detail introduced in some related product introduction.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
It adopts special coalescence-separation filter, which offering much more higher water removing efficiency than other types of purifiers.
Without vacuum heating and high-speed centrifugation.
As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
Reduce water content to less than 100 PPM or less.
Trolly type, easy to move and operate in workshop.
It can remove large of water without heating,creates the fatest dehydration speed at present. The machine can quickly separate water from the oil which even contains half water and attain cleanness of NAS grade 6. This machine is suitable for treating fuel oil and light oil with high water content.
Applications
The explosion proof diesel oil dehydration unit mobile skid, gasoline fuel oil water separator and filter machine mobile skid can be applied in the filtration of diesel oil, gasoline fuel oil, light oil, and other engine oils, etc..
