Product Details

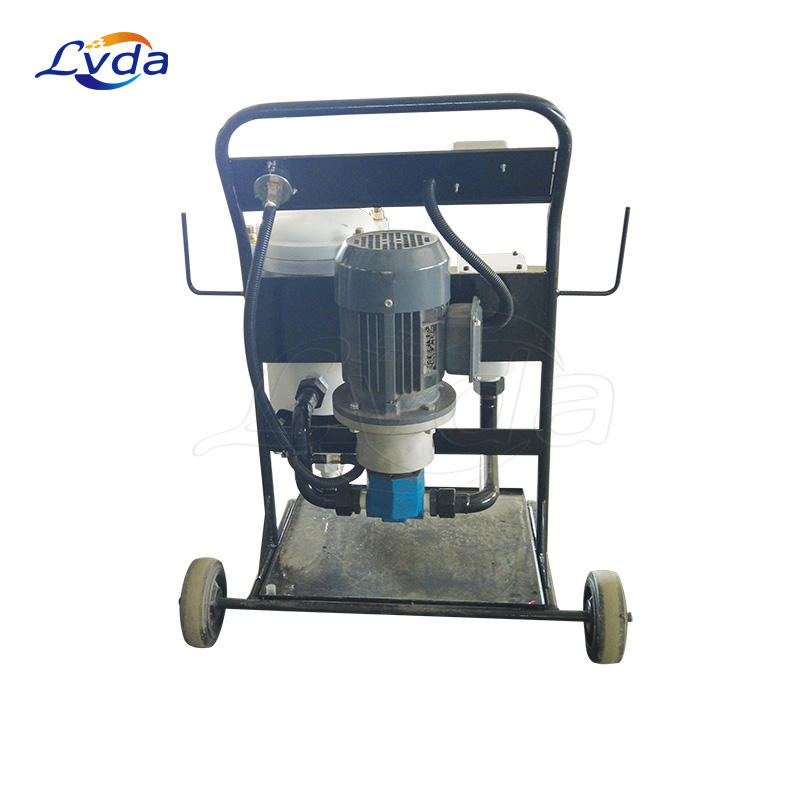

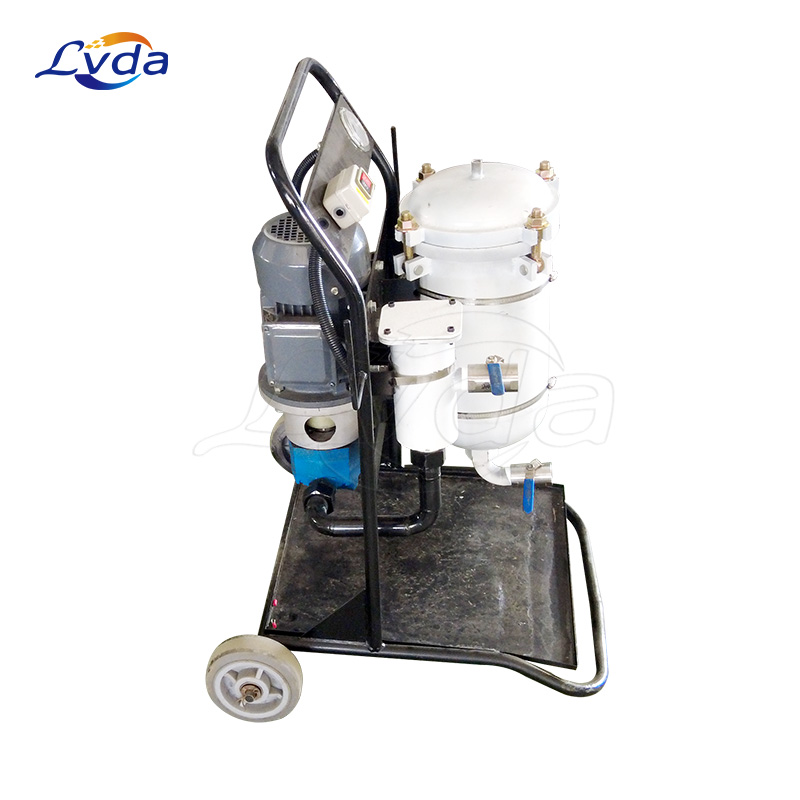

Intelligent compact portable engine oil purification filtration system cart
Our intelligent portable engine oil filtration system cart is a compact, self-contained filtration unit which has all of the features of a standard moveable oil purifier has. Intelligent portable engine oil filtration system cart is ideal for applications for engine oil of all kinds.
Our intelligent portable engine oil filtration system cart gives real flexibility while at the same time offering the water content in percent saturation.
Fitted with the same two-filter design and equipped with high efficiency and high capacity filter elements which are capable of removing particulate contaminants conveniently and economically.
The intelligent portable engine oil filtration system cart has a large dirt holding capacity and the option of staged filtration, on top of this, the intelligent portable engine oil filtration system cart offers all of filtration capabilities that the heavy duty model has, having more intelligence and more mobile and small foot-print.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
Flow rate options between 10 or 40 l/min
Clean up oil to <1-micron absolute
Rugged frame with integral drip tray
Small footprint
Easy to transport
Increased dirt holding capacity
Staged filtration possibilities to reduce element change out
Flexible filter element selection – water removal option available
Low-cost replacement cartridges
Easy element changeover
Clean and dry oil ready for use with required
Recover and re-use contaminated oils
Applications
Engine oil purification and filtration.
To clean-up your engine oil system before restarting following a component failure.
Providing clean fluid when re-filling and adding fluid to the system reservoir.
To reclaim contaminated fluid.
Pre-filling and cleaning up hydraulic systems on new or re-built machinery and equipment.
For offline contamination of engine oil systems.
To empty waste engine oil fluid quickly.
For other uses in many industries including steel production, machine tools, automotive, etc..
