Product Details

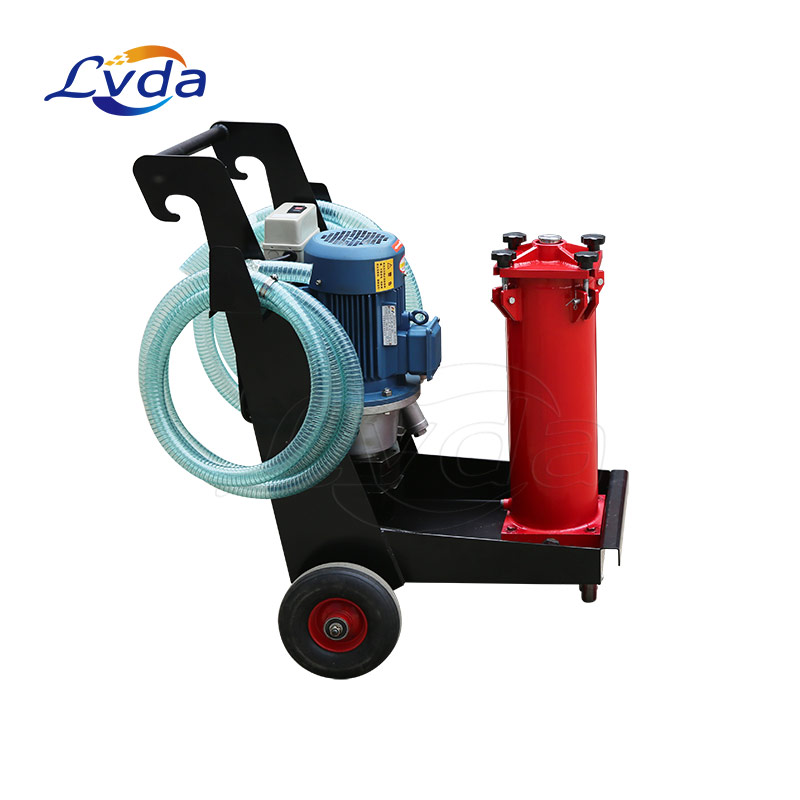

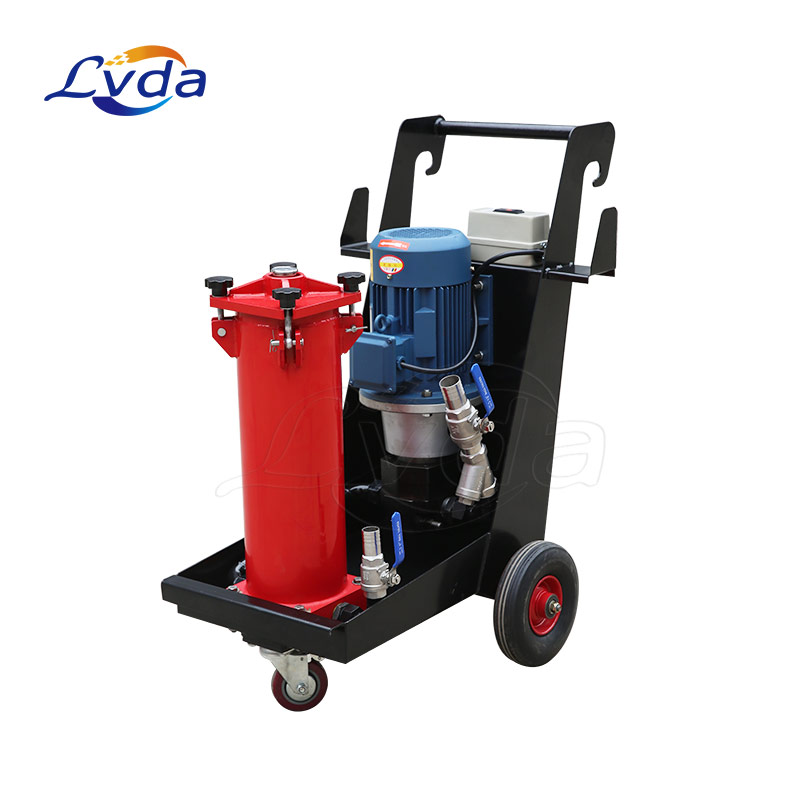

Mobile filter system/Mobile fuel filters and oil filters
General
Mobile filter system/Mobile fuel filters and oliefilters are the best filters for trucks, construction machinery, generators and boats, diesel/gasoline flow up to 1200 liters/hour and bypass up to 300 liters (especially in extreme environments ).
This mobile filter system/Mobile fuel filters and oliefilters are suitable not only for commercial use but also for private use. The filter's low purchase price and ease of maintenance, as well as the savings and extended life of the engine and machine, make it an absolutely essential piece of equipment.
Parameters
| Model |
AOP-B25
-*/** |
A0P-B32
-*/** |
A0P-B40
-*/** |
A0P-B50
-*/** |
A0P-B63
-*/** |
A0P-B100
-*/** |
A0P-B150
-*/** |
| Rated flow(L /min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
| Rated pressure(MPa) |
0.6 |
| Mpa(MPa) |
≤0.02 |
| Coarse filter precision(μm) |
100 |
| Grade 1 filter rating(μm) |
10、20、40 |
| Grade 2 filter rating(μm) |
3、5、 10、S-W |
| Differential pressure |
0.2Mpa |
| Working temperature(°C) |
5-80 |
Recommended viscosity(cSt) |
10- 160 |
Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5
|
2.2
|
3.0
|
| Weight(kg) |
46
|
78
|
90
|
96
|
102
|
120
|
160
|
| Dimensions(mm) |
520x350 x950
|
520 x350x950
|
720x 680 x 1020
|
720 x<680 x 1020
|
720 x 680x 1020
|
720x 750x 1020
|
720x750x 122
|
This oil filter includes a special gear pump driven by a motor. It has the characteristics of low field sound, strong self- priming ability, and stable operation.
The high-pressure pipeline is equipped with overflow protection device a. It can efetively protect the safety of the hydraulic system.
Use thermal relay protection to prevent the motor from being damaged due to motor overload.
The coarse filter at the suction port protects the oil pump and extends the service life of the main flter.
There is a two-stage fine filter behind the pump to make the oil quickly reach a high degree of cleanliness.
Different precision for the fine filter can be chosen according to the dffrent needs of users to achieve the required results.
The primary flter can filter out larger particles and impurities, and the secondary flter can fiter out fine particles or water.
The oil filter housing adopts a quick- opening structure. No special tools are needed to quickly open the upper cover and replace the flter element.
The panel is equpped with a pressure gauge, which continuously indicates the operating status of the system and the pollution degree of the flter element during work.
Features
The mobile filter system/Mobile fuel filters and oliefilters are mainly used for acute problems.
Contaminated fuel bunkered
bacteria in the fuel
Too many ppm water in fuel
Chips or other small and very small parts must be filtered out
Our mobile oil and fuel filter systems can also be made customizablely.
Applications
Mobile filter system/Mobile fuel filters and oliefilters are ideal for all types of equipment and hydraulics. Our filtration systems provide cleaner and water-free hydraulic fluid for better performance. Filters are suitable for all equipment and hydraulic systems with filtration down to 0.5 microns. See other model specifications below.
Applicable oil: lubricating oil, hydraulic oil, turbine oil, etc.
