Product Details

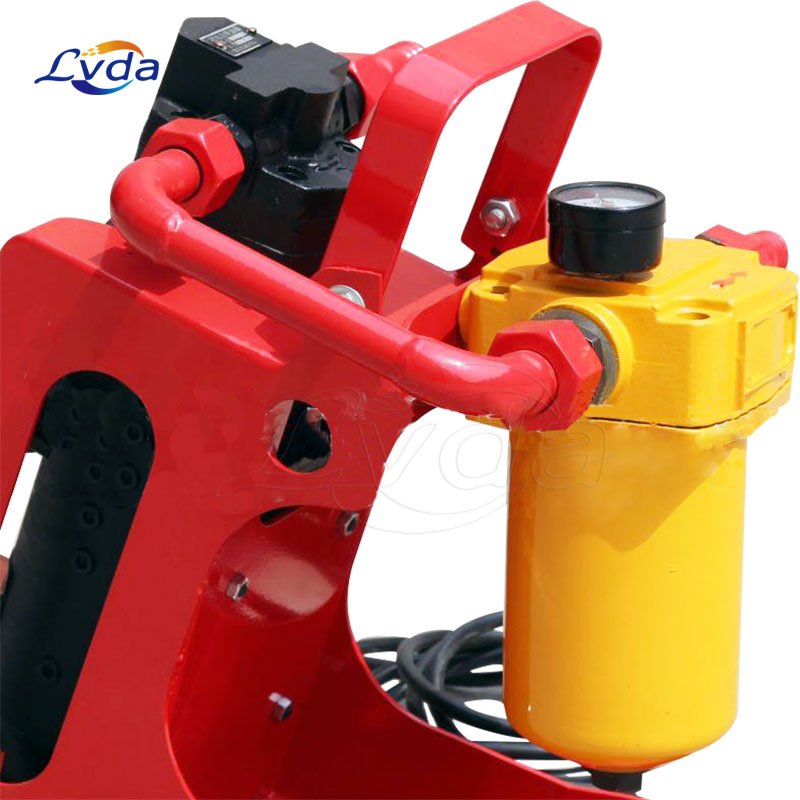

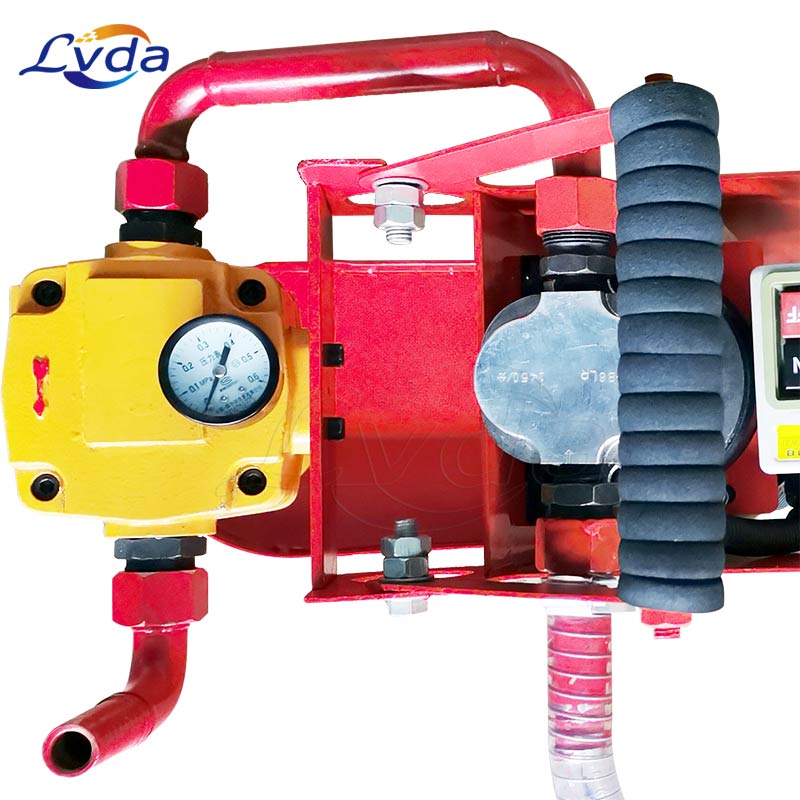

Diesel petrol gasoline electric fuel pump set
Diesel petrol gasoline electric fuel pump set is a new type of oil filter produced by our company. It is suitable for the filtration of general low-viscity petroleum-based mineral oil. Installed in the system for bypass filtering.
Compact structure, light and flexible, small size, easy to move and use.
The overall shell adopts a quick-opening structure, which is convenient for maintenance and replacement of the filter element.
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safe operation of the hydraulic lubrication system.
The thermal relay is used to implement overload protection for the motor.
Secondary filtration, add an oil suction filter before the pump to protect the oil pump and prolong the service life of the main engine.
The special meshing tooth lookout whistle pump driven by motor is adopted, which has low noise, strong self-priming ability and stable operation.
The filter precision can be freely selected as required.
Parameters
| Model | AOP-6-*/**
| AOP-10-*/**
| AOP-16-*/**
|
Rated flow(L/min) | 6
| 10 | 16 |
Rated pressure(Mpa) | 0.34
|
| Original pressure loss(Mpa) | ≤0.02
|
Coarse filtration accuracy(μm) | 40 meshes
|
Fine filtration accuracy(μm) | 3、 5、 10、 20、 40 |
Alarm differential pressure(MPa) | 0.2MPa |
Use temperature(°C) | 6~80 |
Recommended viscosity for use(cSt) | 10~160 |
Power supply(V) | AC380V three-phase, AC220V three-phase |
Motor Power(kw) | 0.18 | 0.25 | 0.35 |
Weight(kw) | 13 | 16 | 18 |
Dimensions(mm) | 650x680x980
| 650x680x980
| 720x680x1020
|
Note: *- filter precision, such as 003 is 3 microns
**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.
Features
■Portable hand-held unit
■Compact and light-weight design
■Very flexibilty
■High-quality gear pump
■ Micron rating available from 3~125 um
■Also available with a blank filter element for the reason of used oil to be removed from the hydraulic reservoir
■Weight: approx. 33 kg
■Country/Region of Manufacture: China
■Placement on Vehicle Engine
■Material Type: iron
■Material Type: Aluminum
Applications
The small size mobile filter system machine is widely used in workshops, maintenance, power plants, power stations, oil depots, factories and mines, aviation, chemical industry, laboratories, etc..
Applicable oil types: mechanical oil, hydraulic oil, lubricating oil, compressor oil, turbine oil, insulating oil, diesel oil, kerosene.
