Portable hand-held diesel transfer & filtration system unit
Portable hand-held diesel transfer & filtration system unit
Portable hand-held diesel transfer & filtration system unit

Portable hand-held diesel transfer & filtration system unit

Engine Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

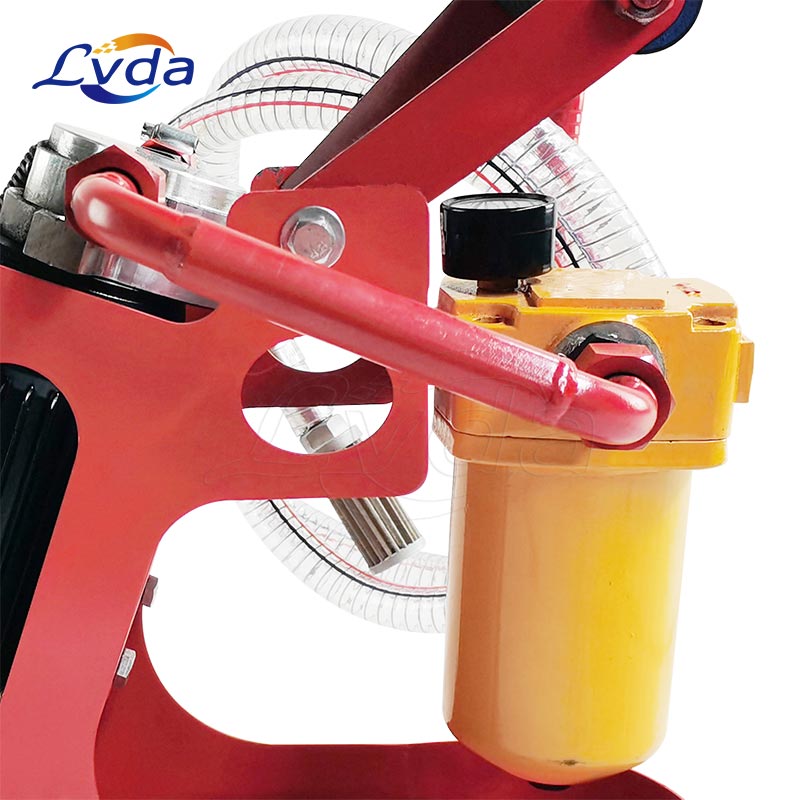

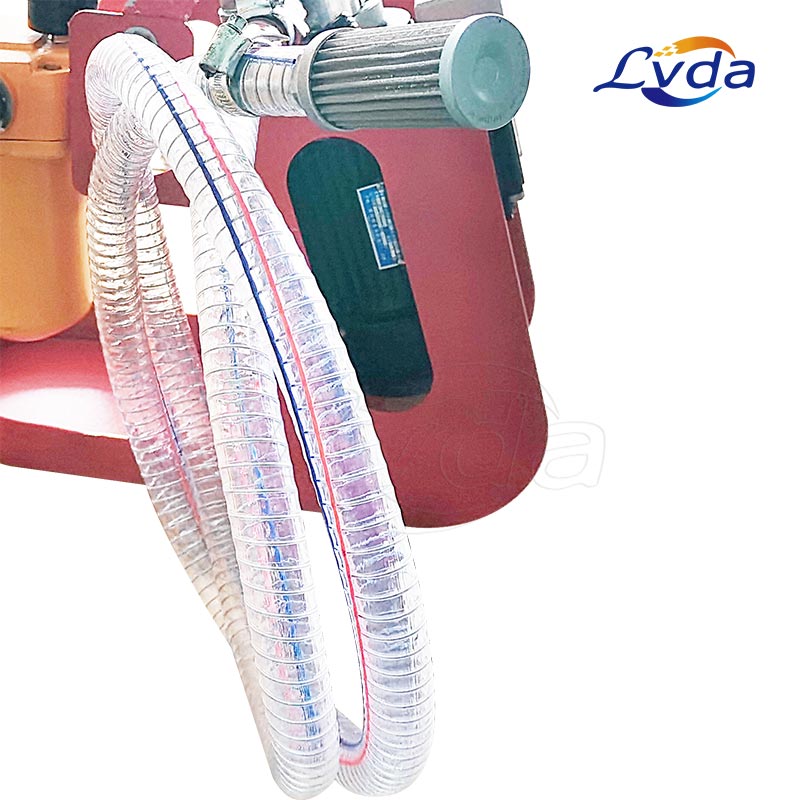

Portable hand-held diesel transfer & filtration system unit

The Portable hand-held diesel transfer & filtration system unit is an unique portable lightweight Filtration System designed for those hard to reach areas.

The new dual element design allows for two stage filtration for numerous filtration options.

With the portable hand-held diesel transfer & filtration system unit heavy duty stainless steel frame, industrial grade motor & pump it is ideal for most hydraulic, lube oil and diesel applications.

Parameters

ModelAOP-6-*/**
AOP-10-*/**
AOP-16-*/**

Rated flow(L/min)

6
1016

Rated pressure(Mpa)

 0.34
Original pressure loss(Mpa)≤0.02

Coarse filtration accuracy(μm)

40 meshes

Fine filtration accuracy(μm)

3、 5、 10、 20、 40

Alarm differential pressure(MPa)

0.2MPa

Use temperature(°C)

6~80

Recommended viscosity for use(cSt)

10~160

Power supply(V)

AC380V three-phase, AC220V three-phase

Motor Power(kw)

0.180.250.35

Weight(kw)

131618

Dimensions(mm)

650x680x980
650x680x980
720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.

Features

*Lightweight & Compact

*13 GPM Flow Capacity

Longer Filter Life

Two Stage Filtration

Clean, Easy Filter Change-Out

*Filtration Down to 3 Micron Absolute

*Water Absorbing Elements

*Industrial Quality Vane Pump

*Heavy Duty Stainless Steel Frame

*Pump Safety Relief Valve

*Strainer on Inlet

*Easy to Read Pressure Gages

*Fleet Maintenance

*Portable Cleaning

*Fuel Polishing

*Field Maintenance

*Fuel Dispensing

Applications

Conditioning lubricants already in use

Filtering new oil to meet a target cleanliness standard

Flushing reservoirs to clean out any unwanted contaminants

Transferring new oils from bulk drums to storage tanks or system reservoirs
