Engine Oil Purifier

Model Number:

Rated pressure(Mpa) : 0.34

Original pressure loss(Mpa) : ≤0.02

Coarse filtration accuracy(μm) : 40 meshes

Use temperature(°C) : 6~80

Recommended viscosity for use(cSt) : 10~160

Get Quotation

Product Details

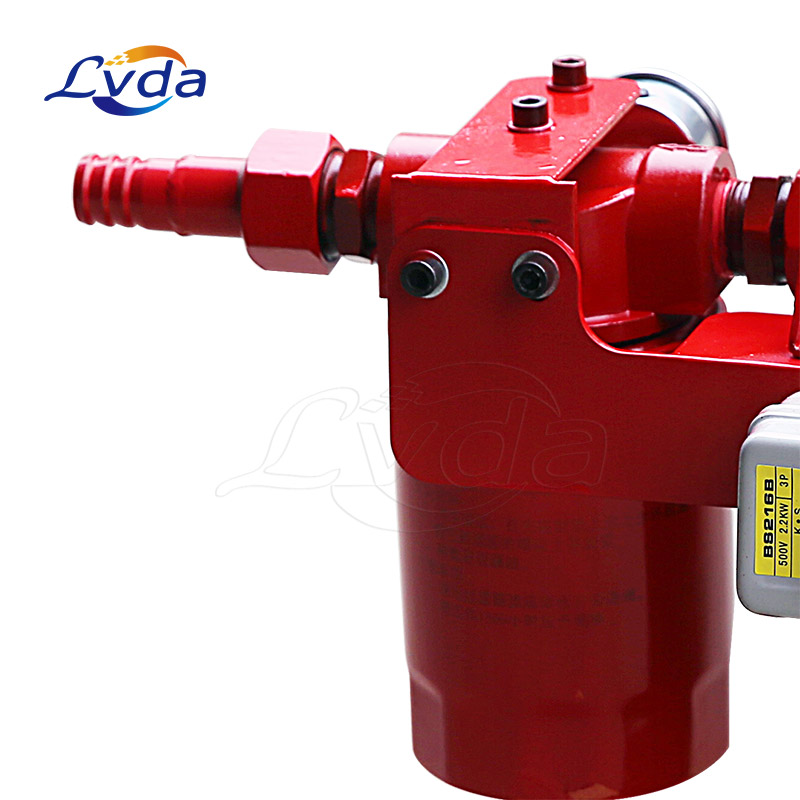

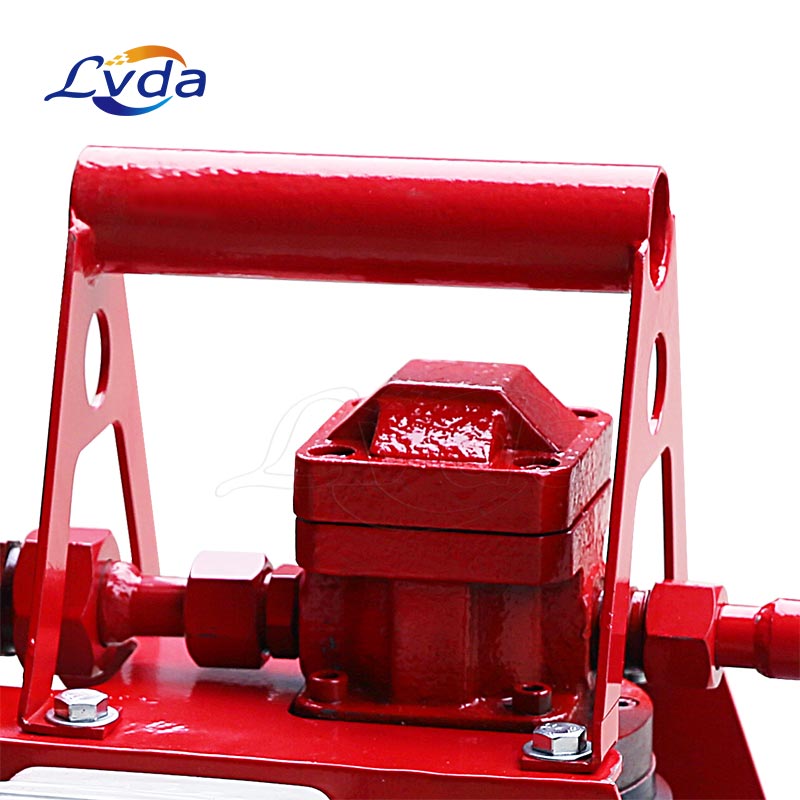

Portable micro oil filter

The main material is high carbon steel, which can be made of 304 stainless steel.

The working principle is coalescence and demulsification, vacuum separation to remove water and degassing, and step-by-step precision filtration to remove acid and impurities.


Parameters

                       Model              AOP-6-*/**
             AOP-10-*/**
            AOP-16-*/**

                   Rated flow

                      L/min

                   6
                   10                  16

               Rated pressure

                       Mpa

                                                                                         0.34
          Original pressure loss

                       Mpa

                                                                                         ≤0.02

       Coarse filtration accuracy

                       μm

                                                                                         40 meshes

       Fine filtration accuracy

                       μm

                                                                                  3、 5、 10、 20、 40

     Alarm differential pressure

                     MPa

                                                                                         0.2MPa

            Use temperature

                       °C

                                                                                         6~80

Recommended viscosity for use

                      cSt

                                                                                         10~160

               Power supply

                        V

                                                              AC380V three-phase, AC220V three-phase

               Motor Power

                       kw

                   0.18                    0.25                 0.35

                   Weight

                      kw

                    13                     16                  18

               Dimensions

                     mm

           650x680x980
            650x680x980
          720x680x1020

Note: *- filter precision, such as 003 is 3 microns

**-Filter media, omitted: ordinary hydraulic oil; BH: water glycol; V: phosphate ester hydraulic oil.


Features

●Small size and light weight, easy to move.

●Using low noise high pressure oil pump.

●With overpressure protection, the filter element is durable.

●Multi-stage filtering, step-by-step precision. User optional configuration.

●Motor and electrical oil pump can choose imported brands according to needs.

●The flowmeter can be installed according to user requirements.

●Explosion-proof products can be customized according to the site environment.


Applications

● Impurity filtration of liquid oil during transportation.

●Bypass filtration of oil circuit system at work.

●Circular filtration of hydraulic lubricating system before it is put into operation.

●The oil of the hydraulic lubricating system is pumped out without being filtered by the pump of the equipment itself.

●Applicable oil: It is mainly used for the regeneration of lubricating oil such as mechanical oil, hydraulic oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, gear oil, gasoline oil and so on.
