Product Details

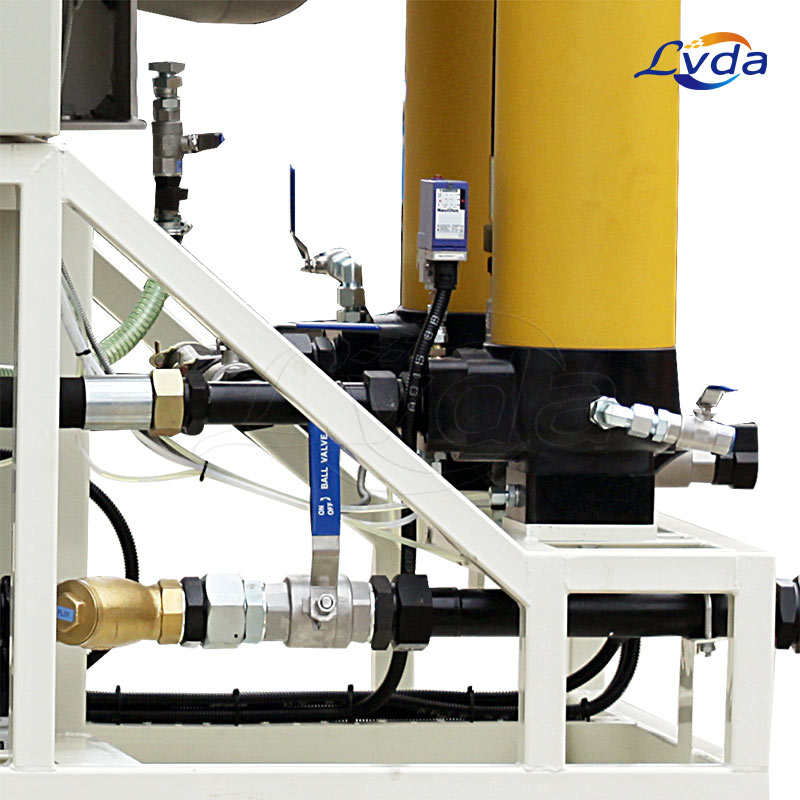

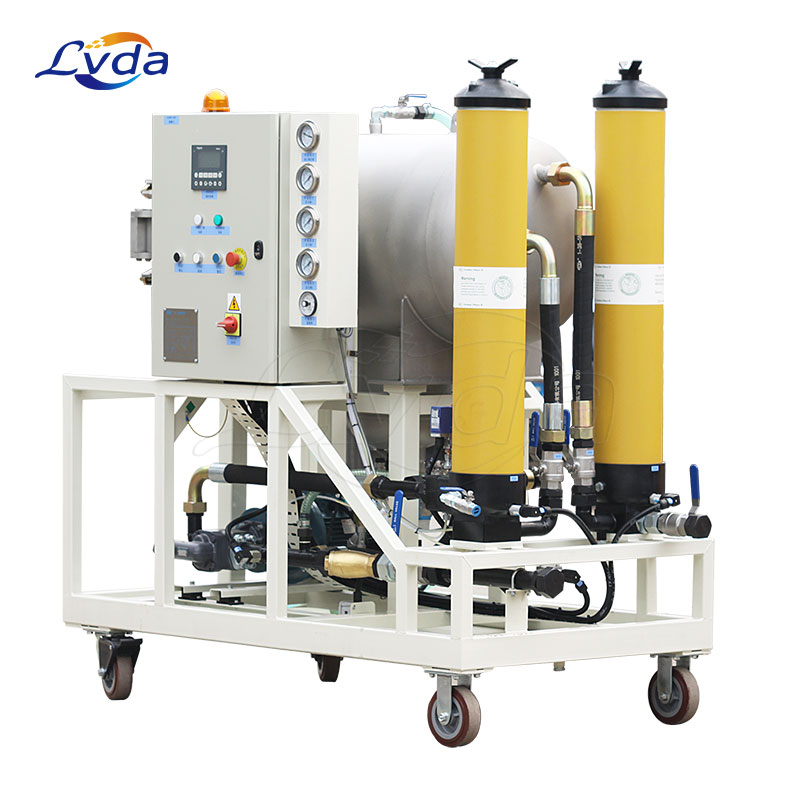

Mobile coalescing separation light fuel oil purifier (explosion-proof oil purifier)
The Mobile coalescing separation light fuel oil purifier (explosion-proof oil purifier) ??integrates precision filtration, high-efficiency demulsification and dehydration, and can remove a large amount of water without heating. The oil is quickly separated; the mechanical impurities in the oil can be filtered and purified to the national standard; the mobile design is convenient to use.
The main material is high carbon steel, and the consumables are stainless steel mat-shaped mesh filter material. The main body can choose the stainless steel oil pipeline, oil pump, and electrical related main components according to the user's requirements, and can also choose domestic or imported brands. The conventional packaging is bamboo and wooden box packaging, which is in line with long-distance transportation at home and abroad.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features:
① This type of oil purifier adopts a special oil-water separation filter, which does not require heating, which completely guarantees that the additives in the oil will not crack or deteriorate, and the quality of the oil can be guaranteed after dehydration.
② The operation is simple, with automatic water delivery device, which can automatically run and release water online without any need for personnel on duty.
③ This type of equipment has standard type and explosion-proof type.
④ Working principle: The unqualified oil first enters the primary filtration, and the large particles of impurities are retained. The oil that removes the large particles of impurities is then transported to the fine filter by the oil pump. After the small impurities are removed in the fine filter, it continues to enter the coalescence In the separator, the principle of molecular separation technology is used to analyze the oil under pressure, eliminate the intermolecular binding force, dissolve water, free water in the oil, quickly break the oil film and separate the oil molecules and separate out; so far, the dehydration and removal of impurities are completed. , so as to achieve the required moisture and cleanliness requirements.
⑤ This machine is equipped with perfect protection device. Through the implementation of the original machine, the temperature, pressure, vacuum degree, power failure, etc. are fully protected, which can effectively prevent accidents and ensure the normal operation of the equipment.
⑥ The automatic control and protection system consists of sensors, motors, and protection components. The factory pressure protection control point of the pressure controller is set to 0.4Mpa. After the working pressure reaches the set point, the whole machine will alarm and stop working to prevent accidents.
Product applications
Suitable for light oils with high water content (ordinary diesel, gasoline, kerosene, etc.)
