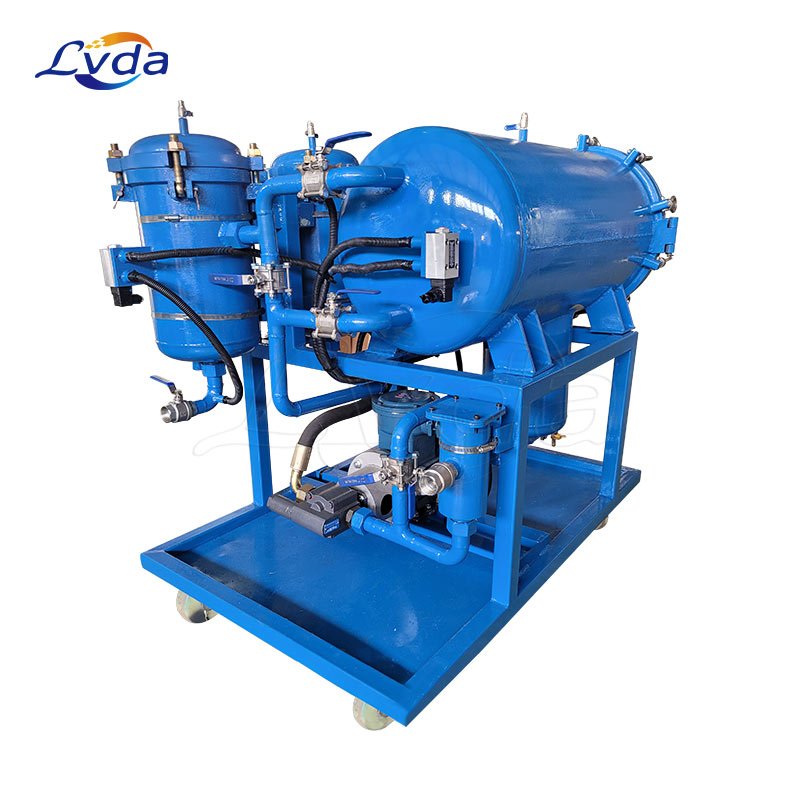

Diesel coalescing separation water removal filter equipment
This diesel coalescing separation water removal filter equipment integrates precision filtration, high-efficiency demulsification and dehydration, and does not require a large amount of water can be removed by heating; the dehydration speed is the highest in China. The oil that is half oil and half water can be quickly separated. The cleanliness can reach NAS6 level; the cart-type design is convenient to use, and is suitable for light oil and fuel oil with high water content.
The unqualified oil first enters the primary filtration, and the large particles of impurities are retained. The oil that removes the large particles of impurities is transported to the fine filter by the oil pump. After the small impurities are removed in the fine filter, it continues to enter the coalescing separator. In it, the principle of molecular separation technology is used to analyze the oil liquid by pressure change, eliminate the intermolecular binding force, so that the dissolved water, free water in the oil liquid, quickly break the oil film and separate from the oil molecules and separate out; at this point, the dehydration and removal of impurities are completed, so as to achieve the desired results. Moisture and cleanliness requirements.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
1) This type of oil purifier adopts a special oil-water separation filter without heating, and the dehydration efficiency is more than 20 times that of other types of oil purifiers.
2) Because of no heating, it is completely guaranteed that the additives in the oil will not crack or deteriorate.
3) The operation is simple, it can automatically run and release water online, and no one needs to be guarded.
4) Low operating cost, 50% lower cost than vacuum oil filter, centrifugal separation, plate and frame pressure filter.
5) This equipment has common type and explosion-proof type.
Product applications
Can handle kerosene, diesel, gasoline and other light fuels.
