Product Details

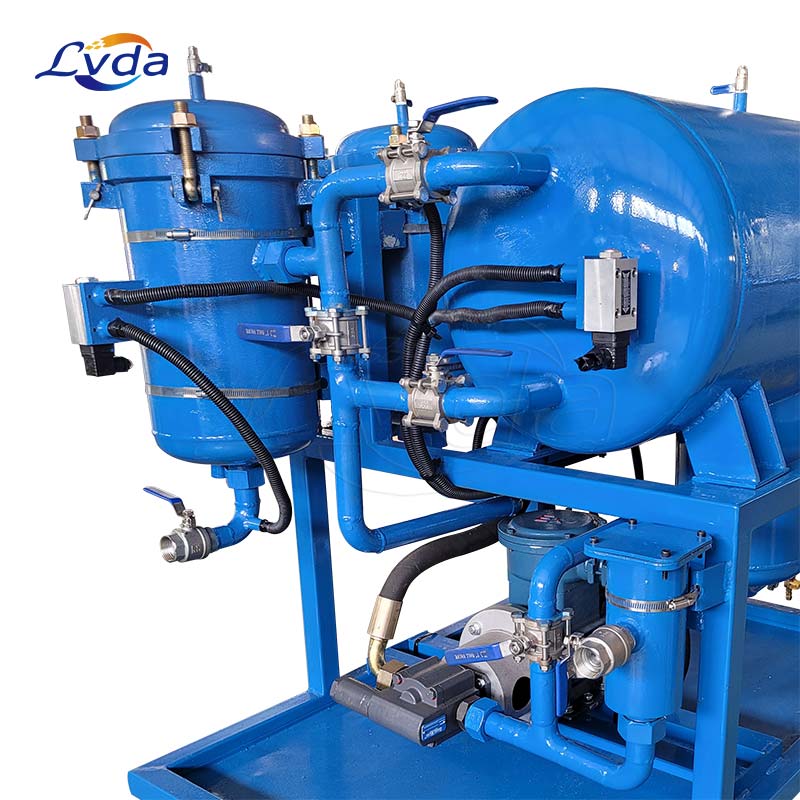

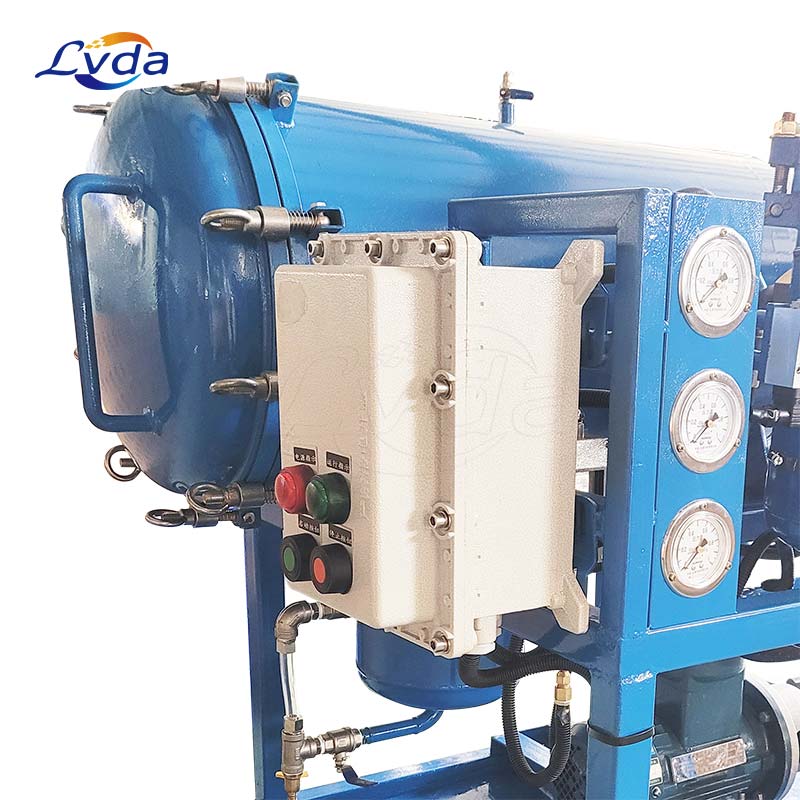

Non-heating type light fuel oil purifier machine with coalescing separator filter
Our coalescense separation fuel oil purifier can clean fuel oil high efficiently, it takes high eficient coalescence separation filters, and integrates fine flter, high efficiency demulsifcation and dehydration into one body. This machine can quickly separate water from the oil(such as diesel), which even contains half water. Convenient using with the go-cart model designed. In a word, it is be used for fast removal of water and impurities in fuel oil or light oil which contains large amount of water.
As no heating is needed makes this unit is much easier and safe for operation. And this oil purifier is very convenient using with the go-cart model designed. Besides it can quickly separate large quantity water from oil, it can also clean oil and achieve the oil cleanness of NAS grade 6.
This portable oil purifer is perfectly suitable to be used for fast removal of water and impurities in fuel oil or light oil which contains large amount of water.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features:
1.Our oil purifer adopts special coalescence-separation filter, which offering much more higher water removing efficiency than other types of purifers.
2.Without vacuum heating and high-speed centrifugation.
3. As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.
4.Reduce water content to less than 100 PPM or less.
5.Trolly type, easy to move and operate in workshop.
6.Suitable for treating fuel oil and light oil with high water content.
7.This machine,which can remove large of water without heating.creates the fatest dehydration speed at present.
8.lt can quickly separate water from the oil which even contains half water and attain cleanness of NAS grade 6.
Product applications
Metallurgy, mechanical oilfield, chemical, mining, electric power, transportation, manufacturing and other industries purify hydraulic oil, hydraulic transmission oil, gear oil, compressor oil, refrigeration oil, heat treatment oil, diesel oil, heat transfer oil, coking oil,diesel, etc.
