Product Details

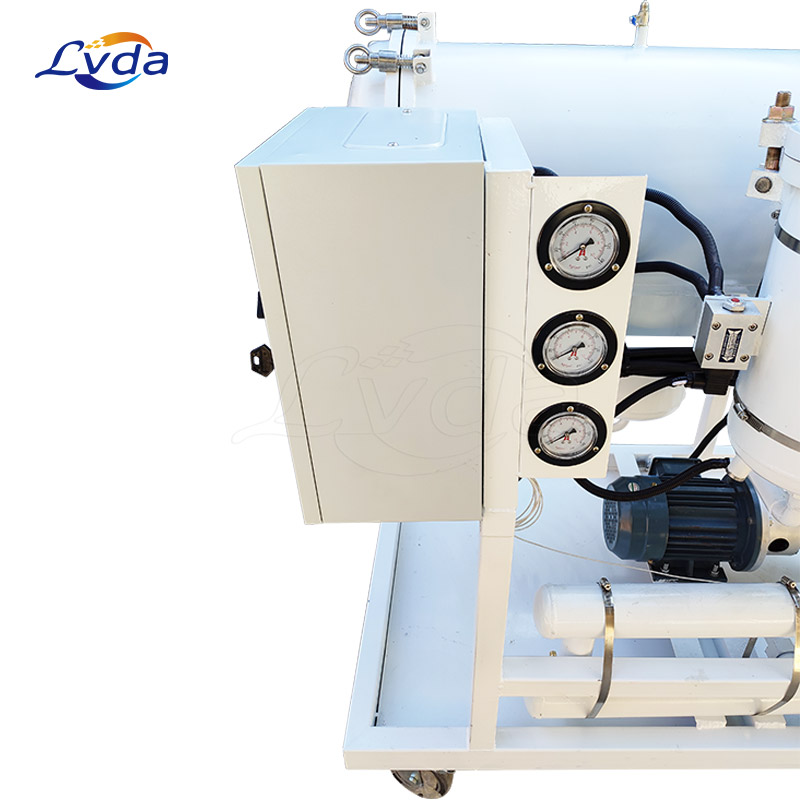

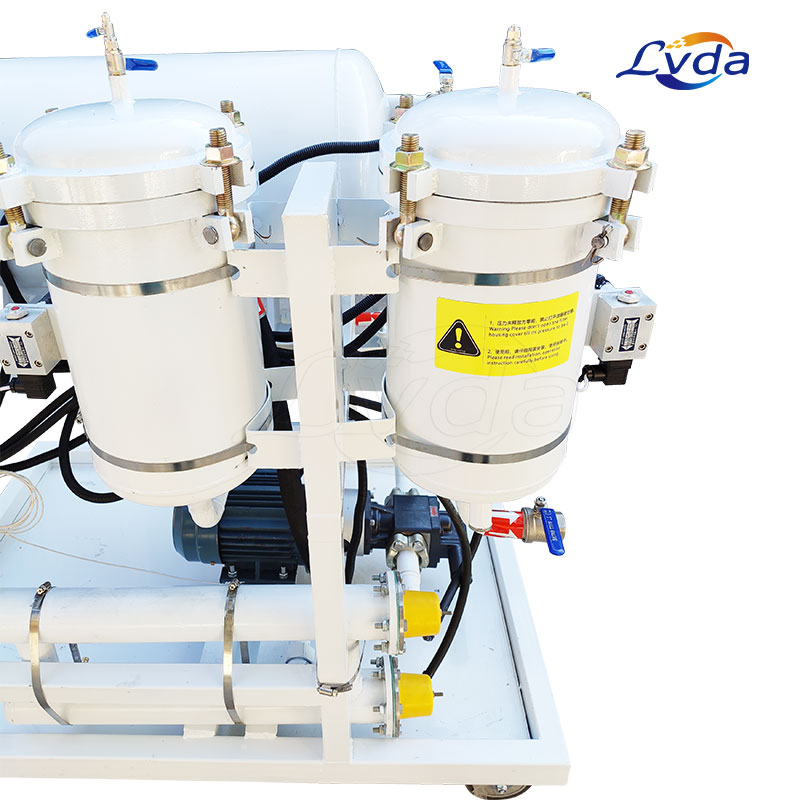

Coalescence&separation oil purifier for light fuel
We provided coalescence&separation oil purifier to separate free and emulsified water from light fuel, it combines the latest innovations in coalescence separation technology and micro-glass filter media in one system to achieve optimal fluid cleanliness. The high efficiency coalescing and separators filter elements are specifically designed to separate oil from water and water from oil quickly, together with oil mist from air. After separation, overall water content can reach 100 PPM. At the same time, to reach NAS 6 grade cleanliness level, the coalescence type fuel filtration machine equips high efficiency micro-glass filter elements.
Product parameters
| Model | A0P-D25 | AOP-D50 | A0P-D100 | AOP-D150 | A0P-D200 | AOP-D400 |
| Rated flow(L/min) | 25 | 50 | 100 | 150 | 200 | 400
|
| Rated pressure(MPa) | 0.6 |
| Initial pressure loss (Mpa) | ≤0.1 |
| Filtered water content | ≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) | 10、20 |
Grade 2 filter rating( μ m) | 3、5 |
| Pressure differentials | 0.2Mpa |
| Working temperature(°C) | 25- 80 |
| Recommended viscosity(cSt) | 10-120 |
| Voltage(V) | AC 380V(Three-phase)、50Hz |
| Motor power(kw) | 0.75 | 1.1 | 2.2 | 4 | 5.5 | 13
|
| Weight(kg) | 150 | 200 | 300 | 520 | 860 | 2860
|
| Dimensions(mm) | 1200x 800x1250 | 1350 x800x1400 | 1740x 980x1450 | 1800x1000x1540 | 1840x1050x1780 | 3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
-The coalescing elements are normally constructed using a pre-filter stage to protect the coalesce filters.
-Removing particles down to NAS 6 grade cleanness level
-Cart type, light weight, simple and reliable operation, low maintenance cost.
-The coalescing type fuel oil purifier can be used for filtration of turbine lube oil, hydraulic oil, diesel fuel, heat transfer oil, dielectric oil etc.
-Rapidly removing large amount free & emulsified water from oil and as low as 100 PPM.
Product applications:
Diesel, kerosene and other light fuel oil, low viscosity lubricating oil, turbine oil, hydraulic oil.
