Coalescence separation oil purification machine
Coalescence separation oil purification machine
Coalescence separation oil purification machine

Coalescence separation oil purification machine

Engine Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Initial pressure loss (Mpa) : ≤0.1

Filtered water content : ≤100

Coarse filtration(μm) : 100

​Pressure differentials : 0.2Mpa

Get Quotation

Product Details

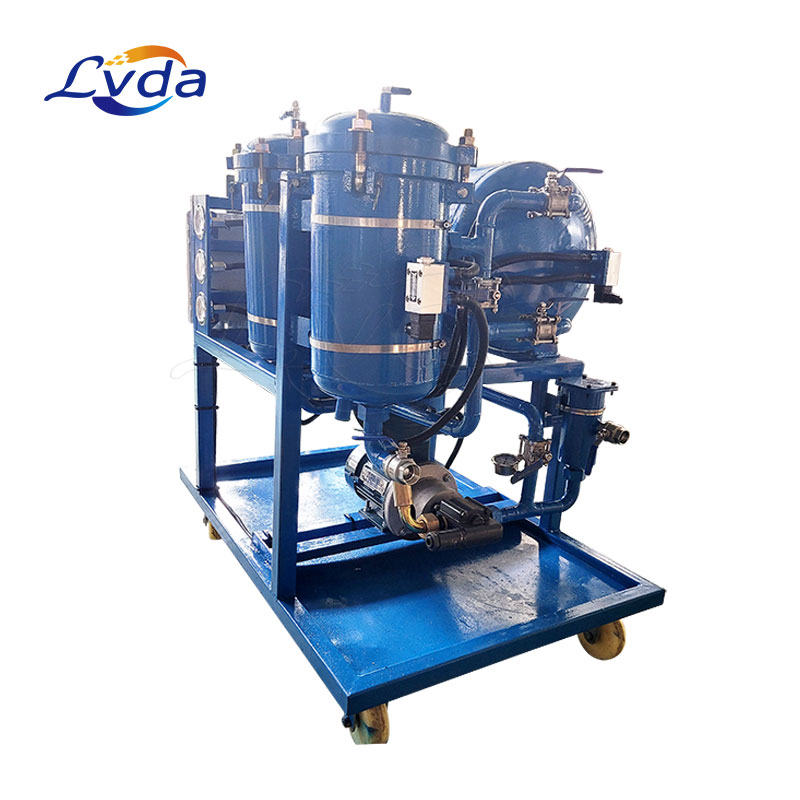

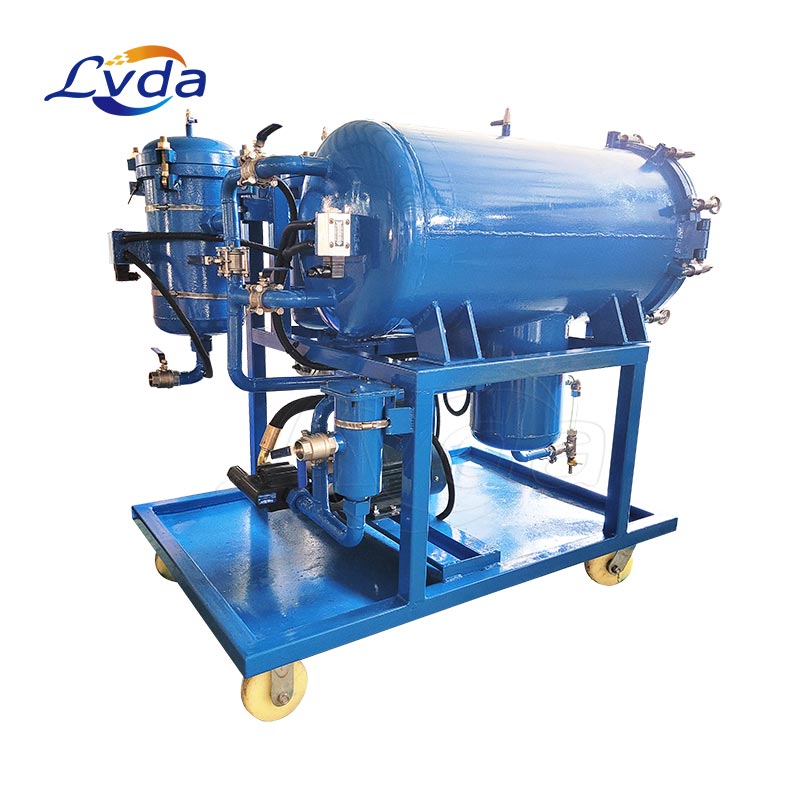

Coalescence separation oil purification machine

This coalescence separation oil purification machine integrates fine filter, high efficiency anti-emulsification and dehydration into one body. This coalescence separation oil purification machine removes large of water without heating, fastest dehydration speed. It quickly separate water from the light oil, which even contains half water, to attain cleanness of NAS 6 grade, it is convenient to operate because of the go-cart model design.


Product parameters

Model A0P-D25 AOP-D50 A0P-D100 AOP-D150 A0P-D200 AOP-D400
Rated flow(L/min)

25

50

100

150

200

 400
Rated pressure(MPa)                                                                                                          0.6
Initial pressure loss (Mpa)                                                                                                        ≤0.1
Filtered water content                                                                                                        ≤100
Coarse filtration( μ m)


                                                                                                        100
Grade 1 filter rating( μ m)                                                                                                      10、20


Grade 2 filter rating( μ m)

                                                                                                        3、5
Pressure differentials                                                                                                     0.2Mpa
Working temperature(°C)                                                                                                      25- 80
Recommended viscosity(cSt)                                                                                                      10-120
Voltage(V)                                                                                   AC 380V(Three-phase)、50Hz
Motor power(kw)

0.75

1.1

2.2

4

5.5

 13
Weight(kg)

150

200

300

520

860

 2860
Dimensions(mm) 1200x 800x1250 1350 x800x1400 1740x 980x1450 1800x1000x1540 1840x1050x1780 3180x 1600x2000

Note: *-is filter's rating,such as 03 is 3 microns.

**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

***-explosion-proof type: add F before type, Omission: normal type


Product features

* Our coalescence separation oil purification machine employs special oil water separator which requires no heating, offering 20 times higher water removing efficiently than other types of purifiers.

* As no heating is needed, the additives in the oil are well prevented from degradation or deterioration.

* Easy-to-operate, water can be discharged online automatically.

* Low operation cost, 20%-40% lower than vacuum purifier, centrifugal purifier and filter press.


Product applications

Used for fast removal of water and impurities in diesel oil,gasoline oil,light lubricating oil which contains large amount of water.
