Product Details

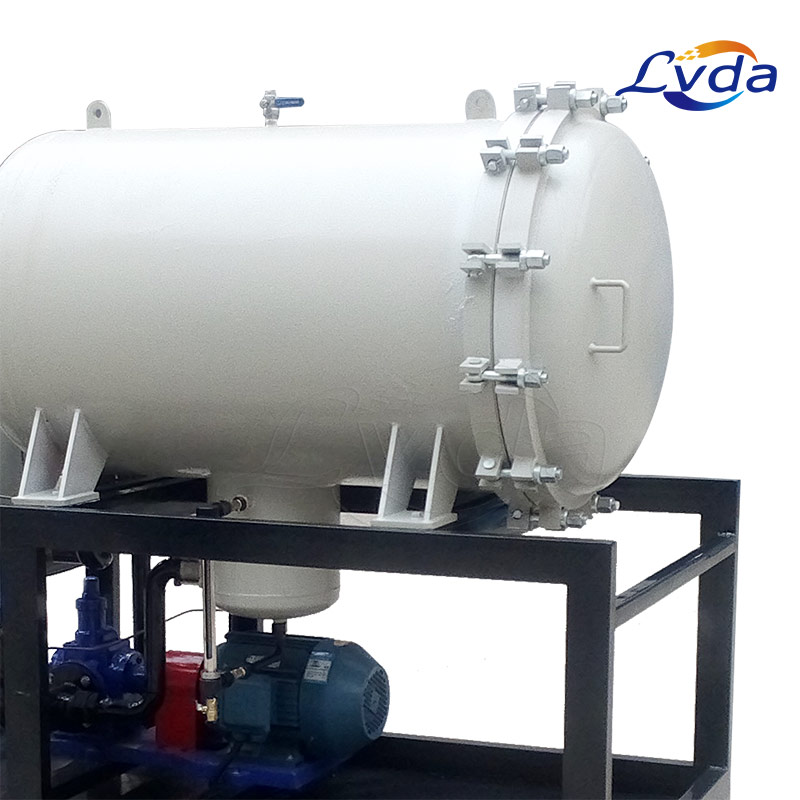

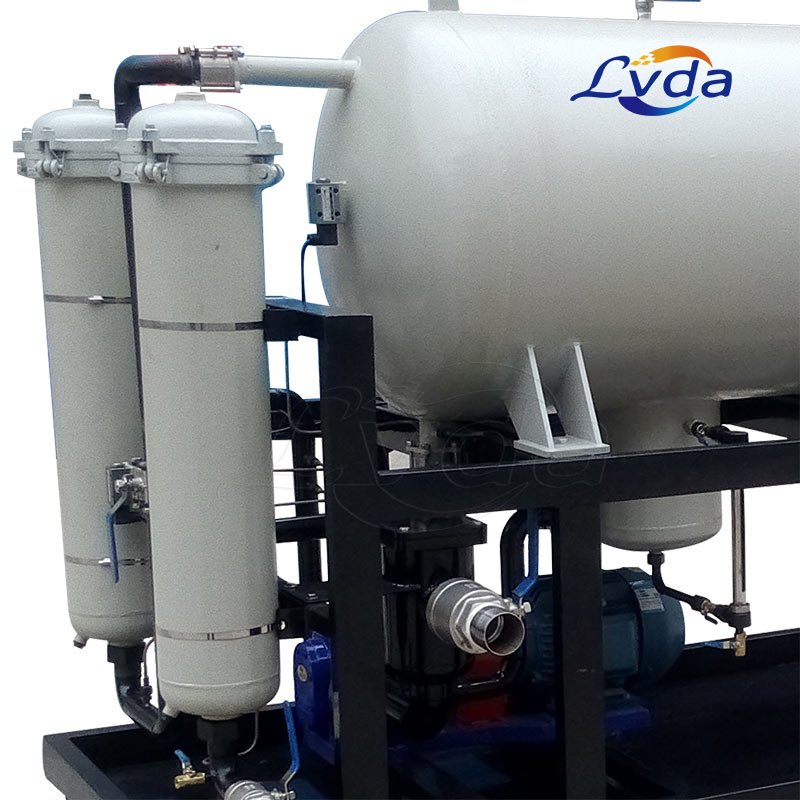

Stainless steel coalescence separation oil purifier
Main body material: high carbon steel, 304 stainless steel
Working principle: Coalescence separation to remove water, multi-stage high-flux precision filtration
The negative pressure of the oil supply pump drives the oil through the coarse filter to intercept impurities larger than 60 microns. Then the oil enters the strainer, and the impurities larger than 20 microns are filtered out. When the oil passes through the fine filter, the filtration precision can reach 3 microns. After the third filtration, the oil enters the aggregation and separation system. When the oil enters the coalescing system, the first choice is to pass through the coalescing element. The coalescing element has two functions: demulsification and coalescence. When passing through the demulsification layer, the emulsification degree of the oil is reduced, and the water is in a free state; when passing through the coalescing layer, the Small droplets coalesce to form large droplets. According to the specific gravity difference between oil and water, the water naturally settles in the reservoir at the bottom of the coalescing separation system. When the unsettled water passes through the separation element intermittently, the polymer material on the surface of the separation element has a strong repelling effect on the water, and the water is intercepted outside the separation element. The oil continues to flow out through the separation element and becomes pure oil.
This machine is specially designed for coalescing filter element made of hydrophilic material and dewatering mercury filter made of hydrophobic material, and is optimized after configuration according to a certain proportion. According to the different physical effects of the water mixed into the oil, the free water and emulsified water in the oil are coalesced into water droplets with larger diameters after passing through the coalescing filter element, and then a large number of water droplets are separated by the dehydration filter element. The lower settlement is automatically drained in the water storage tank to complete a separation of oil and water. This equipment integrates the functions of automatic demulsification, high-efficiency dehydration, and precision filtration, which can effectively filter out the moisture and impurities in the oil.
Product parameters
| Model |
A0P-D25 |
AOP-D50 |
A0P-D100 |
AOP-D150 |
A0P-D200 |
AOP-D400 |
| Rated flow(L/min) |
25 |
50 |
100 |
150 |
200 |
400
|
| Rated pressure(MPa) |
0.6 |
| Initial pressure loss (Mpa) |
≤0.1 |
| Filtered water content |
≤100 |
| Coarse filtration( μ m) |
100 |
| Grade 1 filter rating( μ m) |
10、20 |
Grade 2 filter rating( μ m) |
3、5 |
| Pressure differentials |
0.2Mpa |
| Working temperature(°C) |
25- 80 |
| Recommended viscosity(cSt) |
10-120 |
| Voltage(V) |
AC 380V(Three-phase)、50Hz |
| Motor power(kw) |
0.75 |
1.1 |
2.2 |
4 |
5.5 |
13
|
| Weight(kg) |
150 |
200 |
300 |
520 |
860 |
2860
|
| Dimensions(mm) |
1200x 800x1250 |
1350 x800x1400 |
1740x 980x1450 |
1800x1000x1540 |
1840x1050x1780 |
3180x 1600x2000 |
Note: *-is filter's rating,such as 03 is 3 microns.
**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
***-explosion-proof type: add F before type, Omission: normal type
Product features
●Using the international leading coalescence separation technology, the dehydration speed is extremely fast, especially for the turbine oil containing large moisture (5000～300000PPm), the effect is remarkable.
●Filtering at room temperature, without heating, without changing the physical and chemical properties of the oil, prolonging the service life of the oil.
●Multi-layer filtering of impurities, the particle size control effect is excellent (can reach NAS5-8 grades).
●The equipment is equipped with monitoring and alarming, action control and shutdown protection functions, which can make the equipment run online and facilitate maintenance.
●Stainless steel material can be selected for the tank body pipe, which is beautiful and not corroded, and can work for a long time.
●High-quality imported products can be selected for the main power components, filter equipment and electrical components to improve the performance of the equipment.
●According to the needs of users, PLC intelligent control, touch screen operation, and dynamic display can be selected.
●Optional flowmeter with accumulating function.
Product applications
Diesel, kerosene and other light fuel oil, low viscosity lubricating oil, turbine oil, hydraulic oil
