Engine Oil Purifier

Model Number:

Rated pressure(MPa) : 0.6

Initial pressure loss (Mpa) : ≤0.1

Filtered water content : ≤100

Coarse filtration(μm) : 100

​Pressure differentials : 0.2Mpa

Get Quotation

Product Details

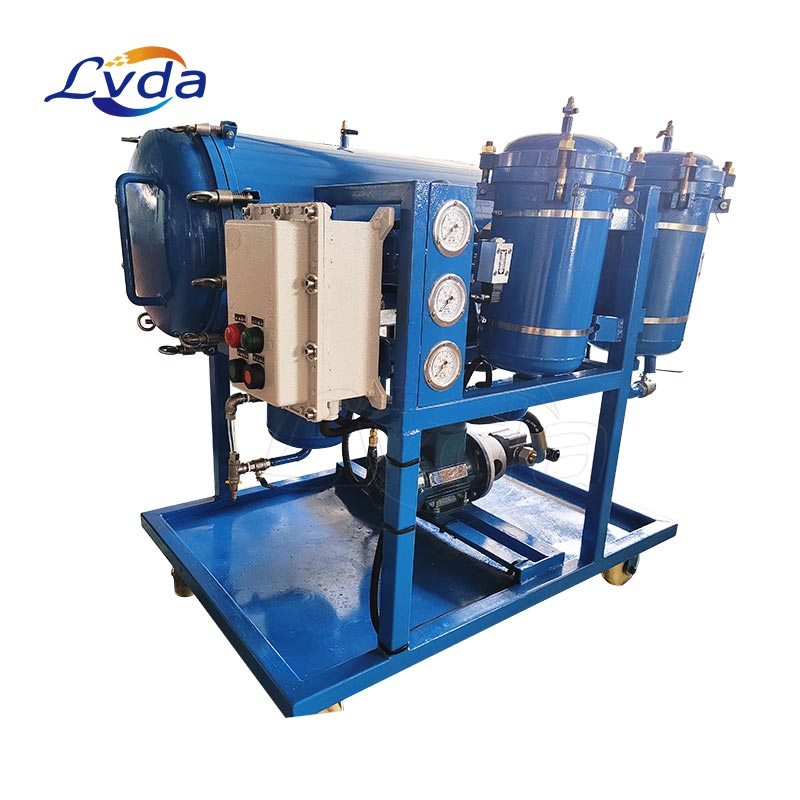

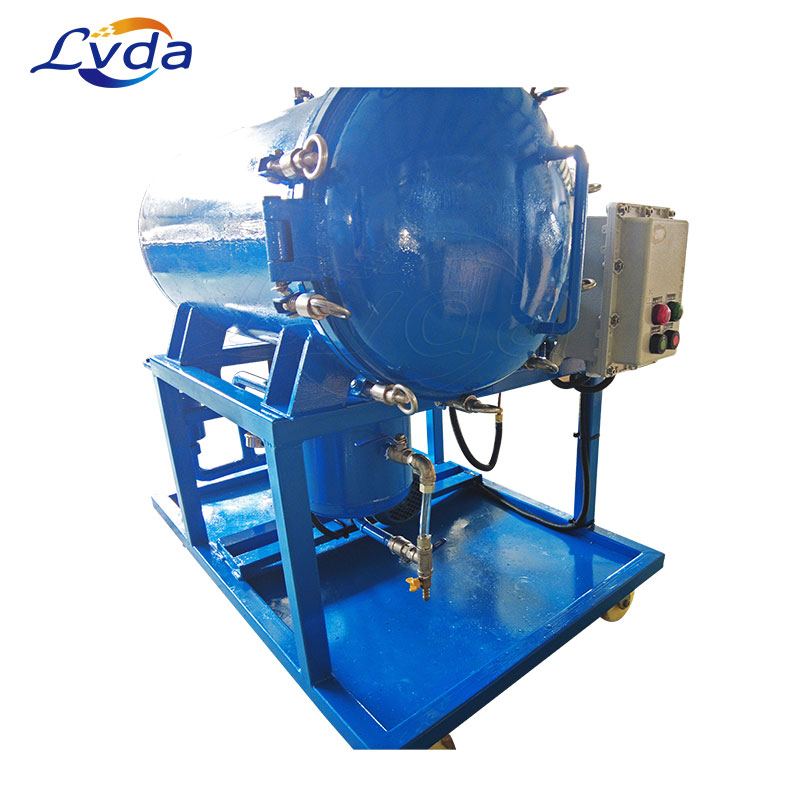

Engine fuel coalescing dewatering device

A coalescing filter element and a separating filter element are arranged inside the casing. Since there is no driving device and the structure is simple, it can cope with the case where the filter area is large. In addition, the sealing part, which is very important for the engine fuel coalescing dewatering device, adopts a self-developed sealing hose, which realizes stable filtration without leakage, and can be applied to all industries. The structure is simple, no driving device is required, and the engine fuel coalescing dewatering device is fully automatic.


Product parameters

ModelA0P-D25AOP-D50A0P-D100AOP-D150A0P-D200AOP-D400
Rated flow(L/min)

25

50

100

150

200

400
Rated pressure(MPa)                                                                                                         0.6
Initial pressure loss (Mpa)                                                                                                       ≤0.1
Filtered water content                                                                                                       ≤100
Coarse filtration( μ m)


                                                                                                        100

Grade 1 filter rating( μ m)                                                                                                     10、20


Grade 2 filter rating( μ m)

                                                                                                       3、5
Pressure differentials                                                                                                    0.2Mpa
Working temperature(°C)                                                                                                     25- 80
Recommended viscosity(cSt)                                                                                                     10-120
Voltage(V)                                                                                  AC 380V(Three-phase)、50Hz
Motor power(kw)

0.75

1.1

2.2

4

5.5

13
Weight(kg)

150

200

300

520

860

2860
Dimensions(mm)1200x 800x12501350 x800x14001740x 980x14501800x1000x15401840x1050x17803180x 1600x2000

Note: *-is filter's rating,such as 03 is 3 microns.

**-is the suitable medium,Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate hydraulic fluid

***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.

***-explosion-proof type: add F before type, Omission: normal type


Product features:

01. No drive device

02. Completely sealed

03. Fully automatic operation

04. Multifunctional

05. Strong corrosion resistance

06. Energy saving and efficiency improvement

07. Large amount of pollutants

08. Large filter area

09. Good liquidity

10. The filter element can be regenerated

11. No residue


Product applications:

1. Aviation fuel, gasoline, kerosene, diesel;

2. Liquefied petroleum gas, petroleum tar, benzene, toluene, xylene, cumene, polypropylene, etc.;

3. Turbine oil and other low-viscosity hydraulic oil and lubricating oil;

4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;

5. Other hydrocarbon compounds
