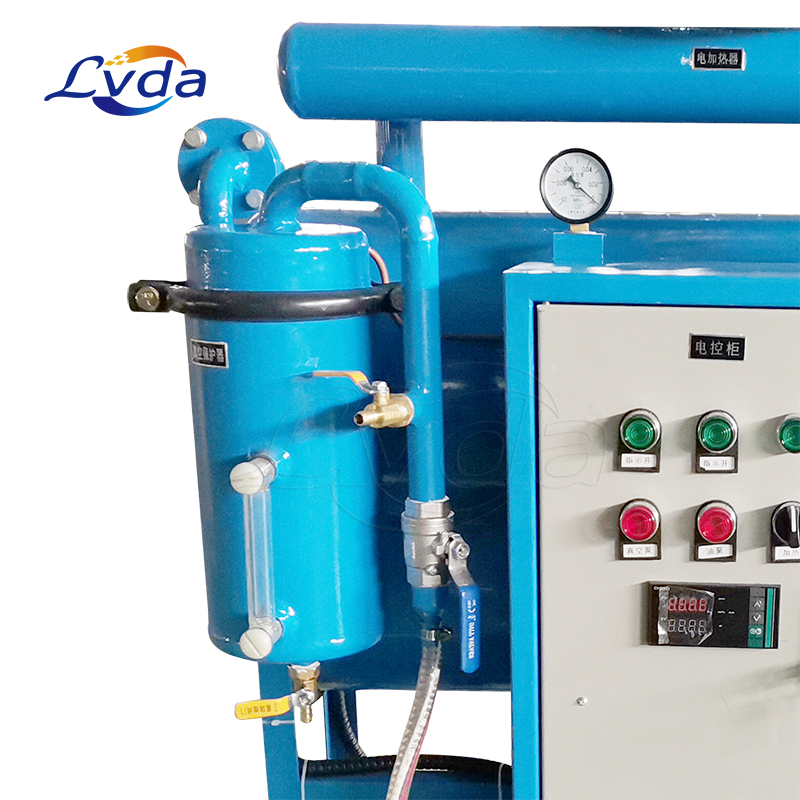

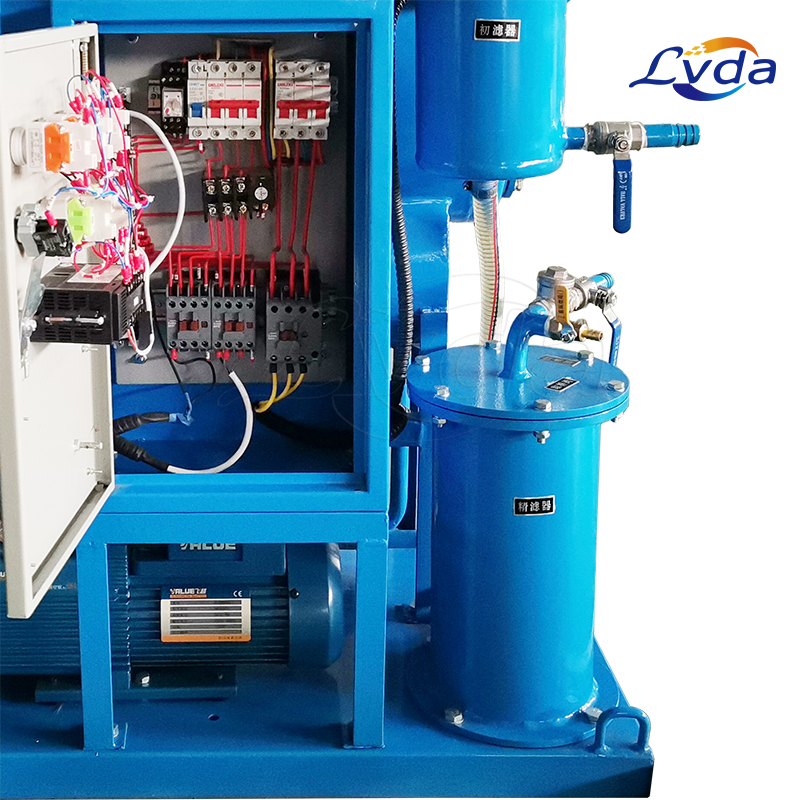

High vacuum dielectric liquid oil purifier
Designed to process and maximize dielectric strength in electrical insulating liquids - including mineral oil, natural esters, synthetic esters, silicone oil and LFH’s (less flammable hydrocarbons) - used in transformers, tap changers, circuit breakers, and other oil-filled electrical devices.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
CONTAMINANTS REMOVED:
CLASS II LIQUIDS: contain excessive particulate, moisture, and dissolved gases. A basic high vacuum purifier will remove all three of these and return the oil to within specification.
CLASS III LIQUIDS: contain products of oxidation like acids and sludge that affect neutralization number, color, interfacial tension and power factor. If these are present, the addition of an optional fullers earth reclamation system is necessary for their removal.
SYSTEM FLOW RATES: A wide variety of standard flow rates are available including 75, 150, 300, 600, 900, 1200, 1500, 1800, 2400, 3000, 3600 and 6000 USgph. All flow rates are adjustable from 0 gallons per hour up to full flow by simply adjusting the outlet valve. The system automatically internally returns any excess flow to the inlet of the system (automatic re-circulation, single valve operation).
VACUUM PUMPING SYSTEMS: are sized for the intended processing method: multi-pass or single-pass to achieve the desired moisture and gas levels. Vacuum packages suitable for combined oil processing and transformer evacuation are also available.
A variety of pump technologies are available to choose from. The three most prevalent used are: oil-sealed vane pumps; oil-sealed piston pumps; dry-screw pumps. Any of these can be used in combination with a vacuum booster (roots blower) when the application dictates.
PORTABILITY: Every system flow rate is available in a stationary model or can be made portable with castors, running gear, shipping container or trailer to suit the intended usage.
ACCESSORIES: A large selection of accessories and features are available including Baron USA’s data logging, remote monitoring, onboard generator, dry air systems, moisture monitors, transformer dry out estimator, and transformer leak test feature.
Product applications
High vacuum dielectric liquid oil purifier is suitable for various types and brands of various types of machinery oil, gear oil, refrigeration oil, hydraulic oil, compressor oil, quenching oil, internal combustion engine oil and other industrial oils produced during use and transportation. Purification treatment is carried out after the deterioration phenomenon. It can quickly remove moisture, gas, impurities, volatiles and acidic substances in lubricating oil, ensure the cleanliness, moisture, viscosity, flash point and other technical indicators of lubricating oil, and restore the performance of oil, thereby ensuring hydraulic pressure. The normal operation of the system, power system and lubrication system. High vacuum dielectric liquid oil purifier is also widely suitable for the purification of various lubricating oils used in machinery, chemical industry, oil field, mining, metallurgy, electric power, transportation, manufacturing and other industries.
