Product Details

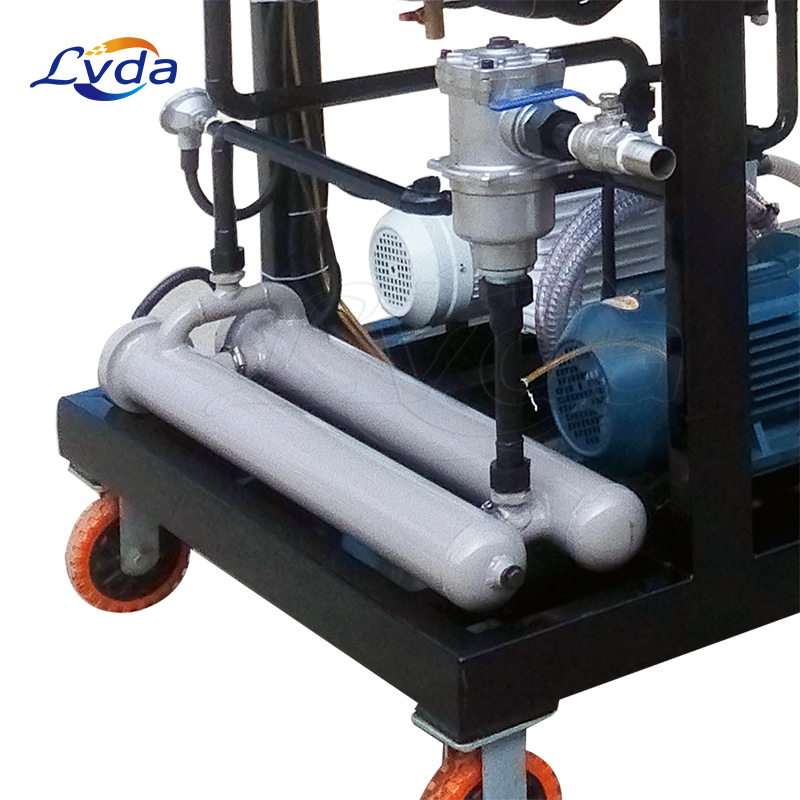

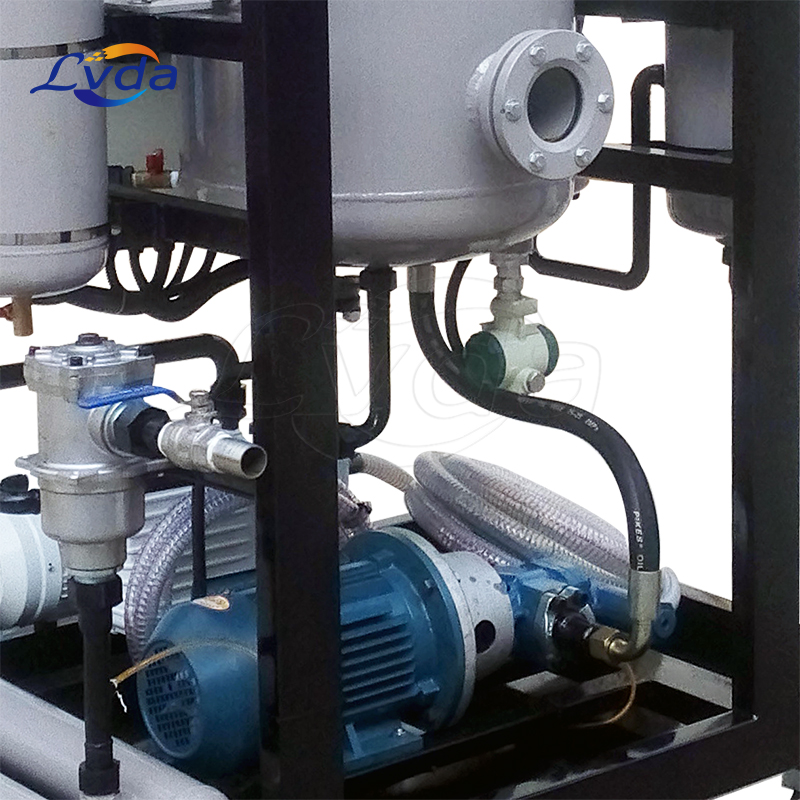

Equipment Name: Lube Oil Vacuum Dehydration Systems
This series of Lube Oil Vacuum Dehydration Systems is mainly aimed at the production, transportation and production of lubricating oil, hydraulic oil, turbine oil, turbine oil, drawing oil, refrigeration oil, mechanical oil, process oil and other thin oils with kinematic viscosity less than 320 mm2/s. It is specially designed to deal with water ingress, emulsification, particle pollution, etc. caused during use. It is suitable for thin oils such as lubricating oil, hydraulic oil, turbine oil, and turbine oil with high moisture content. The dehydration system and impurity filtration system of the oil filtration equipment are specially designed, which can effectively filter out various pollutants such as moisture and particulate impurities in this type of oil, so as to meet the needs of users for high-precision oil use.
Product parameters
Model
|
AOP-1V-25
|
AOP-1V-32
|
AOP-1V-50
|
AOP-1V-100
|
AOP-1V-150
|
AOP-1V-200
|
Flow rate(L/min)
|
25
|
32
|
50
|
100
|
150
|
200
|
Working pressure(Mpa)
|
|
|
0.6
|
|
|
|
Rated vacuum(Mpa)
|
|
|
≤ - 0.095
|
|
|
|
Water content
|
|
|
5 - 30
|
|
|
|
Air content
|
|
|
≤0.2% |
|
|
|
Coarse filtration(μm)
|
|
|
100 |
|
|
|
Grade 1 filter rating(μm)
|
|
|
10、20 |
|
|
|
Grade 2 filter rating(μm)
|
|
|
3/5 |
|
|
|
Pressure differentials
|
|
|
00.2Mpa |
|
|
|
Voltage(V)
|
|
|
AC 380V(Three-phase)、50Hz |
|
|
|
Motor power(kw)
|
18 |
26 |
36 |
65 |
65 |
135 |
Weight(kg)
|
360
|
470
|
680
|
840
|
960
|
1500
|
Dimensions
(mm) |
12500x920x1600
|
1350x980x1600
|
1500x1060x1800
|
1600x1080x2100
|
1800x1200x2200
|
2000x1200x2200
|
Note: * -is filter's rating,such as 03 is 3 microns.
**-is the suitable medium, Omission:General hydraulic oil;BH:Water - glycol , V:Phosphonate
hydraulic fluid
***- the medium viscosity is too high or the oil temperature is low,need to add the heating device.
****-explosion-proof type: add F before type, Omission: normal type
Product features
1. The Lube Oil Vacuum Dehydration Systems products are widely used in electric power, machinery, metallurgy, petrochemical, Junhong papermaking, home appliance manufacturing, hydraulic lubrication and other industries.
2. The Lube Oil Vacuum Dehydration Systems oil filter equipment has a strong ability to filter impurities and a large area. The deep-level, high-precision filtration system can effectively remove the fine moving impurities and iron filings, dust, sediment, etc. in the oil.
3. Series high-efficiency dewatering vacuum oil filter adopts advanced technology combining coalescence separation and vacuum dewatering, which can quickly and efficiently separate a large amount of water and micro-water from oil with high water content.
4. The Lube Oil Vacuum Dehydration Systems equipment adopts the polymer wrinkle-type coalescing PM material imported from Germany for demulsification. It is a polymer material containing a large number of active and free molecules, which can directly enter the emulsified oil. The molecular chain of the carburetor is cut, so that the oil molecules and the water molecules are completely separated, and the emulsification problem of the oil is easily solved without any damage to the oil quality, and it can be used repeatedly without adding any consumables.
5. The vacuum dehydration system of the Lube Oil Vacuum Dehydration Systems adopts an advanced compression-type low-temperature atomization system, which uses the molecular structure characteristics of micro water, and uses the oil temperature to pressurize the oil through a special vacuum atomization element. control
The micro-water molecular movement at the moment of atomization and spraying can be separated from the oil by fission at a speed of up to 80% of the speed of light, so as to achieve the purpose of separating the micro-water.
6. Adopt five-layer intelligent liquid level control technology, no fuel injection, no oil running, no empty car operation, no cross-contamination between the purified oil and the working oil of the oil filter.
7. All the pipes of the Lube Oil Vacuum Dehydration Systems oil filter equipment are connected by hydraulic joints without oil leakage.
8. The Lube Oil Vacuum Dehydration Systems adopts five-level intelligent oil temperature protection technology to avoid accidents caused by dry burning, avoid oil overheating and dehydration, and avoid secondary pollution caused by gas generated during filtration.
9. A number of intelligent control technologies are adopted to ensure the safe operation of the equipment, separation of man and machine, and to realize the function of duty-free.
10. The Lube Oil Vacuum Dehydration Systems device is an independent oil purification and filtration system, which can be energized online for circulating filtration, or can be moved to the oil filter point for offline oil filtration, which can realize unattended operation.
11. In addition to reliable filtration and purification functions, the Lube Oil Vacuum Dehydration Systems can also easily switch valves for individual oil extraction, oil injection, oil replenishment and other functions to meet various application requirements of users on site.
Product applications
Lube Oil Vacuum Dehydration Systems are specially designed for various power plants, power stations, industrial and mining enterprises, lubricating oil warehouses, tractor stations, petroleum, chemical, metallurgy, national defense and other units. It is mainly used to filter moisture and impurities in transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil and other oils. Stainless steel material can also be used to filter vegetable oils.
