Product Details
PF
As a primary filter, particles whose diameter more than 5μm can be removed, the maximum residual oil content is negligible.
AO
High efficiency general protection, dust particles, water mist and oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³(21ºC), 1ppm(w).
AA
High efficiency oil removal filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC), 0.01ppm(w).
AX
Ultra-efficient filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC), 0.001ppm(w).
ACS
Dust particles whose diameter more than 0.01μm, oil vapor and odor can be removed, the maximum residual residual content of oil vapor does not exceed 0.003mg/m³(21ºC), 0.003ppm(w).
AR
Dust particles whose diameter more than 1μm can be removed.
AAR
Dust particles whose diameter more than 0.01μm can be removed.
International test and measurement standard ISO12500
>ISO 12500 has made clear a general test and definition method for the compressed air filter manufacturers. The main performance parameters
are the air inlet oil content and particles size distribution of the solid particles.
>ISO12500-1 specifies the test requirements for the filtration performance of oil aerosol in the coalescing filter.
>ISO12500-2 specifies the test requirements of adsorption filters for the removal performance of steam adsorption.
>ISO12500-3 specifies the requirements for removal of particulate matter from solid pullutants.
Product features
1.Duarbility and longevity
2.Beautiful design
3.High quality with reasonable price
4.Afford good service
5.Produce according to your sample or drawing
6.Each product individually tested
Product parameters

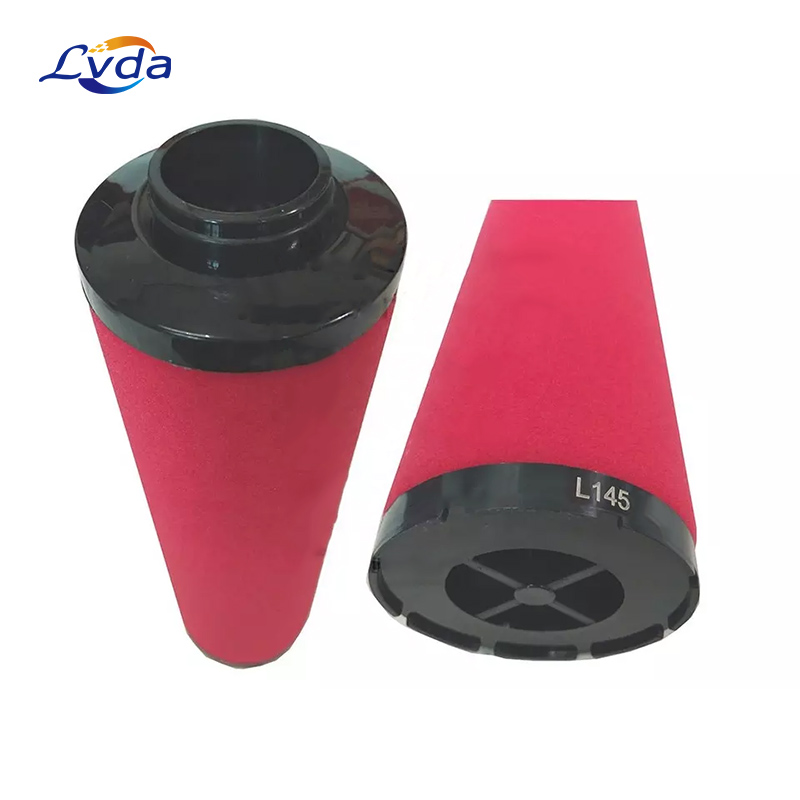

Model: | L145ACS |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Application: | In-line Compressed Air Filter |
weight: | 1kg |
precision | 0.01-0.1micron |
efficiency | 99% |
Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR |
Size of solid particles(ISO12500-3) | 5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
Filtration performance of solid particles(ISO12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
Filtration performance of oil(ISO12500-3) | 50% | 80+% | 99.9+% | 99.99+% | - | - | - |
Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ | <0.01mg> | <0.001mg> | <0.004mg> | - | - |
Product application
1.Metallurgy:
2. Petrochemical
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
