Product Details

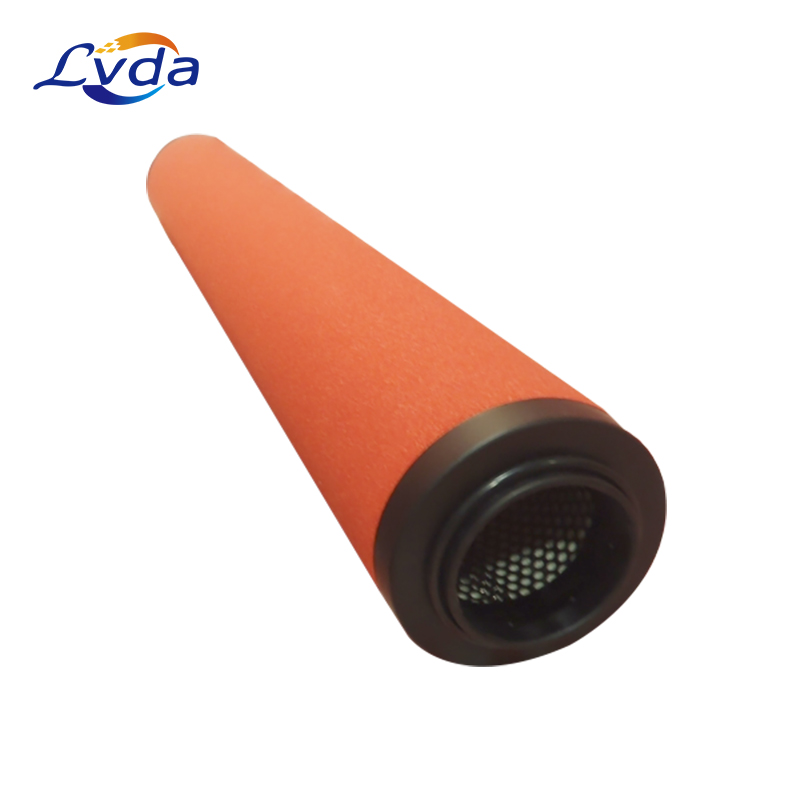

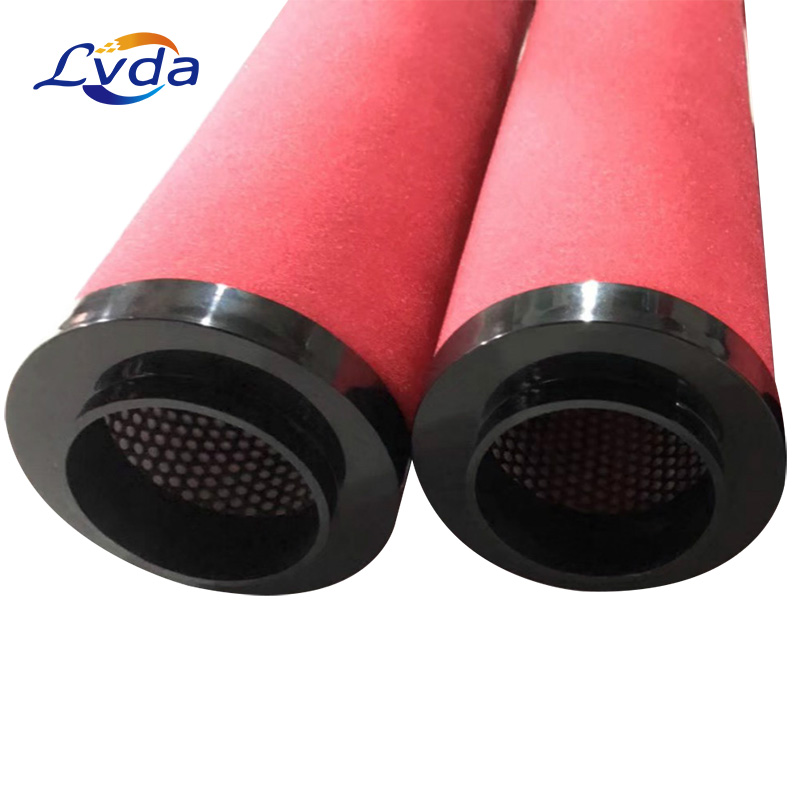

The DOMNICK HUNTER K330AA filter element replacement is built with the highest quality materials and workmanship. This DOMNICK HUNTER K330AA coalescing filter element offers equal to or better filtration performance based on the original OEM filter specifications.
Coalescing filter elements are used to remove water, oil vapor and other contaminants from a compressed air line. These K330AA coalescing filters provide the highest level of clean compressed air with a minimum loss of pressure. Our K330AA coalescing filter elements are tough enough to hold their shape under pressure and maintain even pressure differentials to avoid collapsing of the filter element.
Domnick Hunter Oil-X Plus Genuine Replacement Filter Elements
AA - High Efficiency
AO - General Purpose
ACS - Oil Vapour Removal
To maintain filtration efficiency it is recommended to change the element every 12 months.
Conforms to the ISO 8573.1 international standard for compressed air quality.
Product features
1. Air permeability of precision filter element:
The filter element is made of American strong hydrophobic and oil repellent fiber filter material, and at the same time, it uses a framework with good permeability and high strength to reduce the resistance caused by passing.
2. High efficiency of precision filter element:
The filter element is made of German fine perforated sponge, which can effectively prevent oil and water from being carried away by high-speed airflow, so that small oil drops passing by can gather at the lower end of the filter element sponge and be discharged to the bottom of the filter container.
3. Tightness of precision filter element:
A reliable sealing ring is used at the joint of the filter element and the filter housing to ensure that the air flow is not short circuited and prevent impurities from directly entering the downstream without passing through the filter element.
4. Corrosion resistance of precision filter element:
The filter element is made of anti-corrosion reinforced nylon end cap and anti-corrosion filter element framework, which can be used in severe working conditions.
Product parameters
Model: | K330AA |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001 |
Quality: | 100% Tested |
Length: | 24.8 |
Outer Diameter: | 3.4 |
Inner Diameter: | 2.04 |
Filter Type: | Compressed Air Coalescers |
Filtration Selectivity Raring: | 0.3-0.6 AT 99.99% |
Maximum Flow: | 620 SCFM @ 100 PSIG |
Operating Temperature Range: | 180 F |
Initial Differential Pressure: | N/A |
Center Tube: | METAL |
End Caps: | POLYPROPYLENE |
Jacket: | METAL |
Handle: | NONE |
Gasket: | BUNA |
Product application
1.Metallurgy:
2. Petrochemical
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
