Product Details
Compressed air is the main source of safe energy for many industries.Failure to remove or reduce contamination will cause corrosion within compressed air storage vessels and the air distribution system, as well as blockage or damage to production equipment.So precision filtering of the air is particularly important.
- main pipeline filter
Protect the system as much as possible after the cooler in the air compressor or after the freeze dryer and other filters.
- air line filter
The apparatus removes moisture and particles in the form of tools, machinery, motors, cylinders, and a class of ultra high efficiency oil removal filters, or adsorption dryers.
Screw air compressor Pipe line filter element is used to filter different dismissal of stainless dry stock,corrosion resistance, superior structural performance; seam welded for extra strength, low resistance to flow. Different accuracy levels of different filter structure,a new 'matrix blended fiber' media, larger effective surface area, improves capurerate, enhanced filtering effect. Coated closed cell foam sleeve with resists chemical attack from oils and acids, ensures high efficiencies by preventing reentrainment of coalesced liquids.
Product features
1.Duarbility and longevity
2.Beautiful design
3.High quality with reasonable price
4.Afford good service
5.Produce according to your sample or drawing
6.Each product individually tested
Product parameters

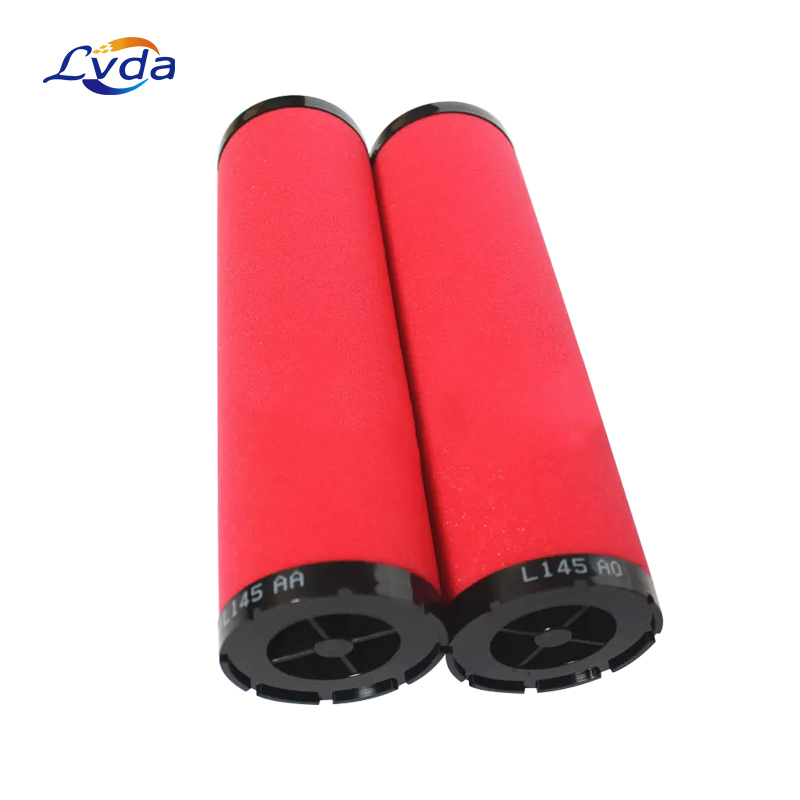

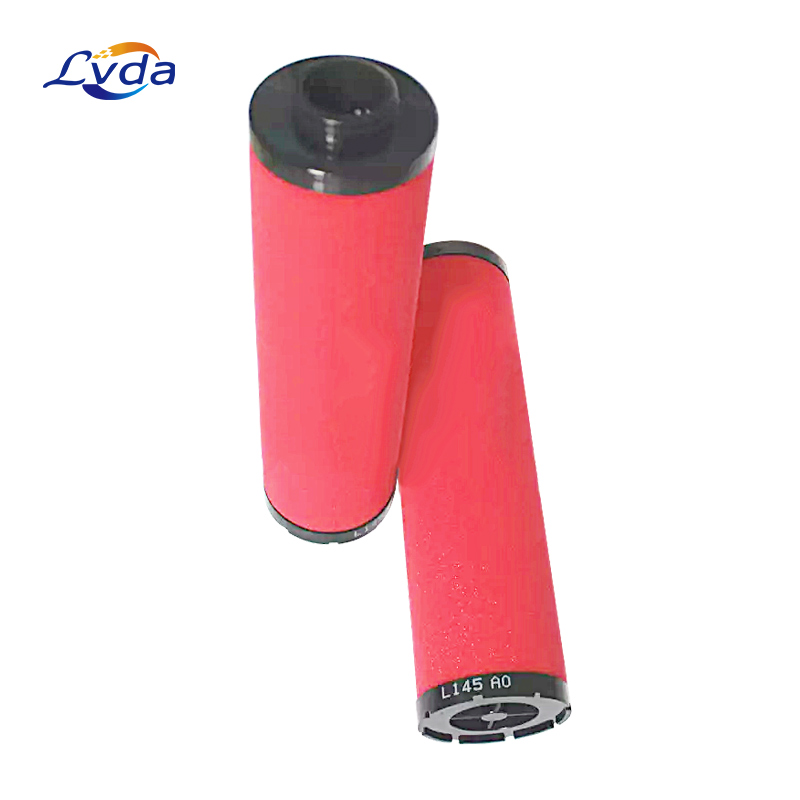

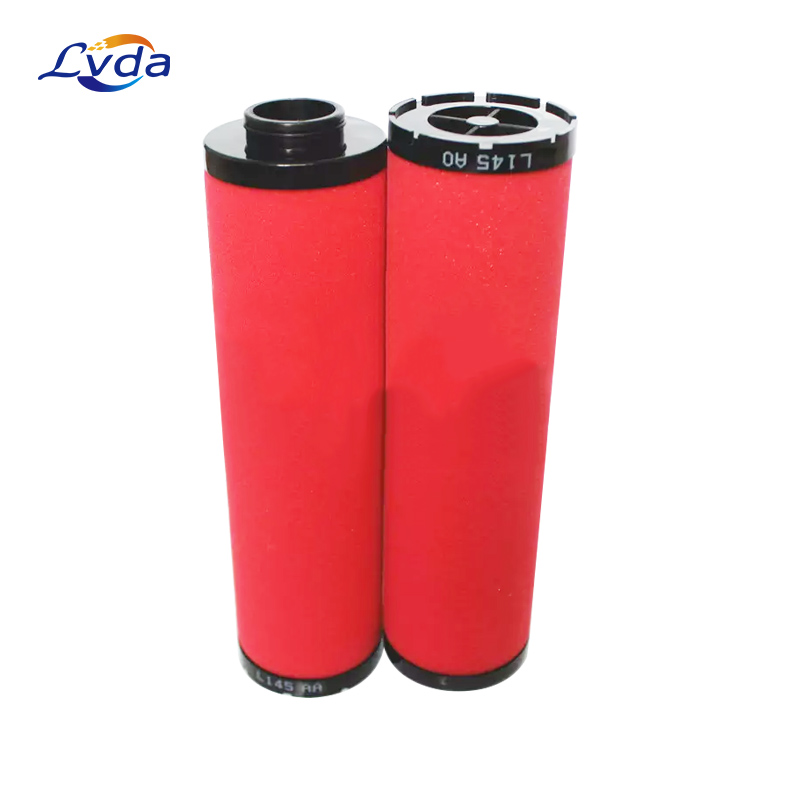

Model: | L145AO,L145AA |
Place of Origin: | Henan, China |
Brand Name: | LVDA |
Life span: | 6000- 8000h |
Certificate: | ISO9001:2015 |
Quality: | 100% Tested |
Application: | In-line Compressed Air Filter |
weight: | 0.36kg |
precision | 0.01-0.1micron |
efficiency | 99% |
Porosity | 96% |
Flow Rate | 7.2m3/Min |
Element Material | Sodium Bosolicate Fiber Glass |
Top Cap | PA+GF Material |
Seal Ring Material | Fluororubber |
Inner Box Size | 300*80*80mm |
Specification | 267*72mm |
Filtration Grade | PF | AO | AA | AX | ACS | AR | AAR |
Size of solid particles(ISO12500-3) | 5μm | 1μm | 0.01μm | 0.01μm | - | 1μm | 0.01μm |
Filtration performance of solid particles(ISO12500-3) | - | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% | 99.999+% |
Filtration performance of oil(ISO12500-3) | 50% | 80+% | 99.9+% | 99.99+% | - | - | - |
Residual oil content(ISO12500-1) | 5mg/m³ | 0.6mg/m³ | <0.01mg> | <0.001mg> | <0.004mg> | - | - |
Product application
1.Metallurgy:
2. Petrochemical
3. Textiles, electronics and pharmaceuticals
4. Power Plant
5. Steel mills
6. Subway engineering
7. Chemical plant
8. Ships
